ELECOM / DPA-DL03BK

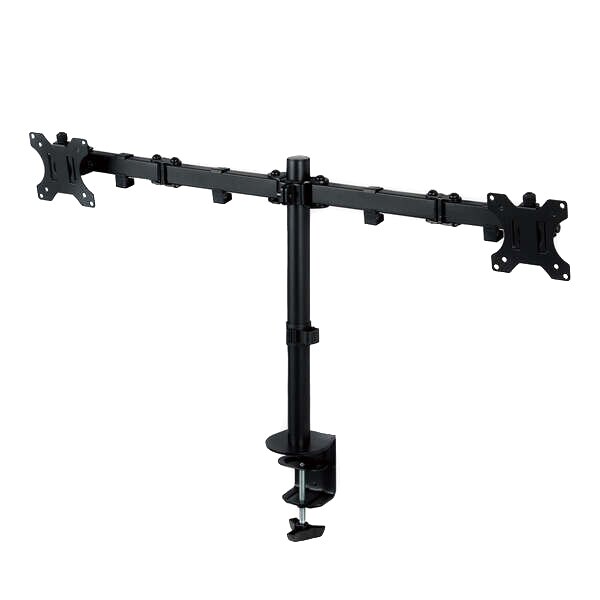

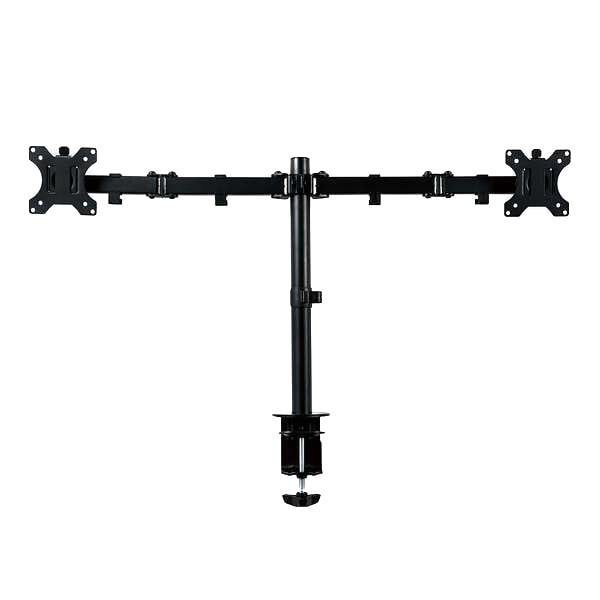

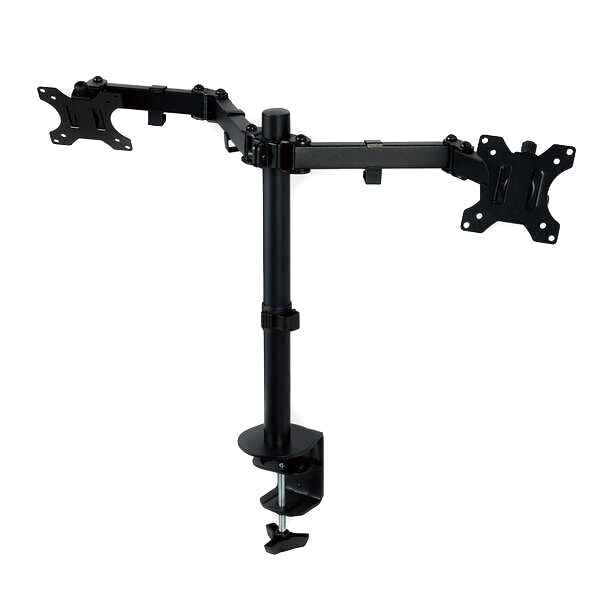

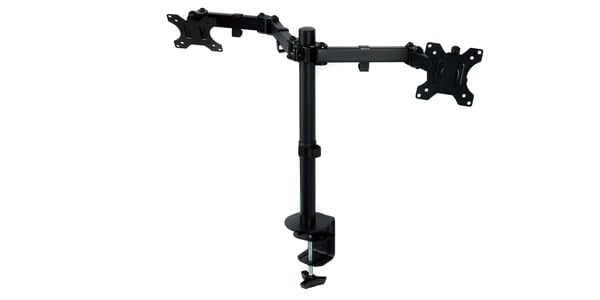

This long arm type double monitor arm supports 13 to 32 inch size monitors.

■Monitor arm (double arm/long)
■Supported size: 13-32 inches
■Load capacity：About 8.0kg(x2)
■SIZE：Approx. 913(W)x548(H)x122(D)mm
Excluding protruding parts and clamp knob.
■Weight: approx. 4.3 kg
■Color: Black
■Set contents:
Clamp x1, Pole x1, Arm x1, VESA mount x2, Cable holder x1, Upper plate for grommet x1
Lower plate for grommet x1, Cap x1, Cushion pad x5, Countersunk screw x3
VESA Mount Fixing Bolt x2, VESA Mount Fixing Screw x2
Allen wrench (4mm)x1, Allen wrench (6mm)x1, M4x12(x8), M4x16(x8), M5x12(x8)
M5x16(x8), Washer x8, Resin spacer x8, Instruction manual x1
■Material: Steel
■Number of screens：2
■Fixing method：Clamp type/Grommet type
■Number of axes: 5 axes
■Supported standard: VESA standard (75 x 75/100 x 100mm)
■Movement range:
Pan: 90 degrees left / 90 degrees right
Rotation: 360 degrees
Tilt: 45 degrees up / 45 degrees down
■Mountable top panel thickness
Clamp: 10 to 88mm
Grommet: 10 to 75mm
