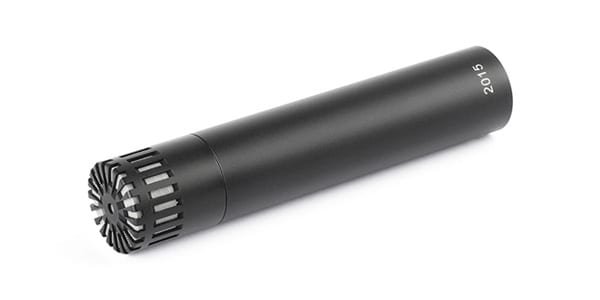

DPA / 2015

Excellent off-axis characteristics allow it to perform well even on stages with a complex mix of many sound sources. Accurately captures the desired sound. Accurately captures the original sound of the instrument without any coloring. This musical instrument microphone is ideal for capturing overhead sound from large musical instruments and drum sets.

Ideal for capturing atmospheric sounds such as drum overheads and grand pianos.
Microphone for collecting musical instruments that shows its true value in live scenes

■Main applications
·overhead
・Grand piano
・Horn section
·vibraphone
・Marimba
・Xylophone
etc.

◆High durability for harsh live scenes
The body is made of thick, chrome-plated brass, ensuring high durability to withstand harsh live situations. The grille that protects the capsule is also chrome plated.

◆Excellent off-axis characteristics reduce wraparound from other sound sources
・Flat off-axis characteristics that naturally attenuate surrounding sounds provide a clearly defined sound even on a stage where a variety of sound sources coexist. You can reduce the time spent setting up and adjusting the microphone, and concentrate on creating the sound.
- When used as a drum overhead mic, it can capture the sound of the entire drum kit evenly even if it is placed closer to the drum than in a typical position, resulting in a more powerful sound quality.

◆Compact shape that does not interfere with stage production
The compact size of 19 mm in diameter and 94 mm in total length allows miking in the optimal position without interfering with the stage performance.

◆Stereo pair models available for more diverse applications
We also offer the stereo pair model ""ST2015"", which is a set of two carefully selected microphones (2015) with sensitivity differences within ±1.5dB.

Type: Instrument microphone
Polar pattern: wide cardioid
Cartridge: Prepolarized condenser type
Frequency characteristics (±2dB): 20Hz to 20kHz
Frequency range (±2 dB/30cm): 40 Hz to 18 kHz
Sensitivity (±2dB@1kHz): 12 mV/Pa; -37.7 dB re. 1 V/Pa
Equivalent noise level (A weight): 18 dB(A) re 20 ?Pa
Total harmonic distortion (THD): 1% or less (147 dB SPL, 150 dB SPL peak)
Dynamic range: 132dB
Maximum sound pressure level (THD10%): 150 dB SPL (153 dB SPL peak)
Output impedance: 60Ω
Minimum load impedance: 2kΩ
Cable extension distance: up to 100m
Power supply: Phantom DC48V
Color: matte black
Terminal: XLR3 pin (male)
Capsule size: φ17mm
Dimensions/mass: φ19 x total length 94mm, 83g

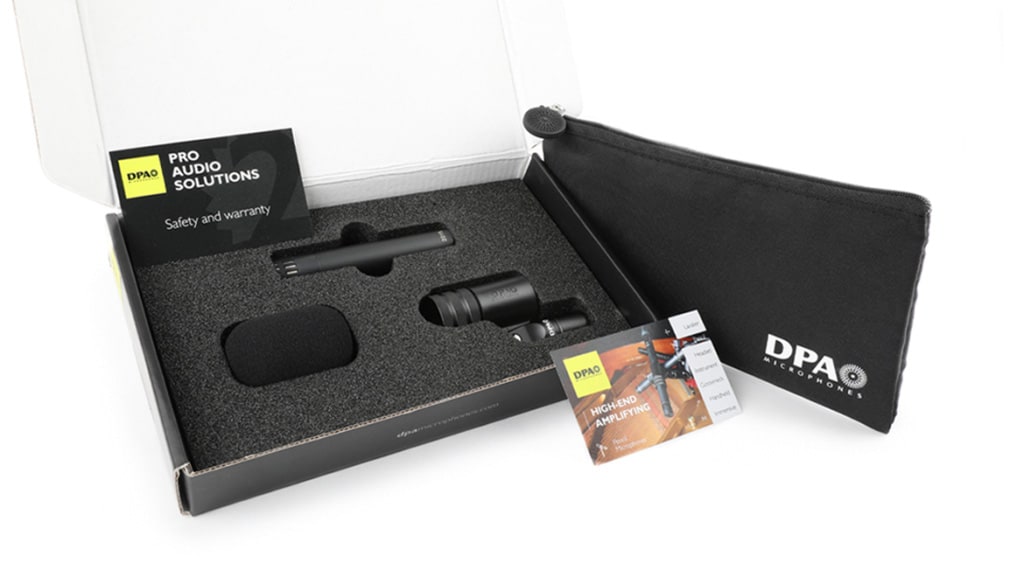

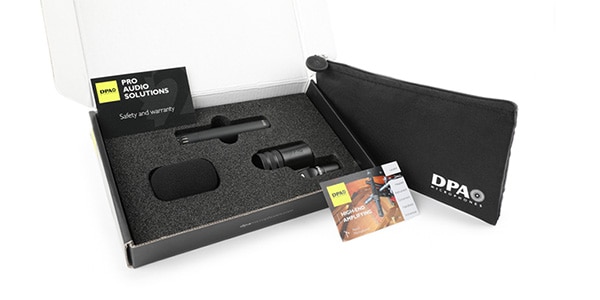

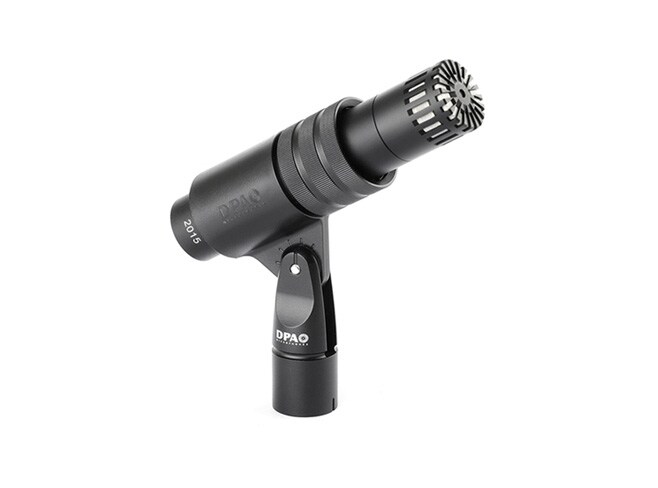

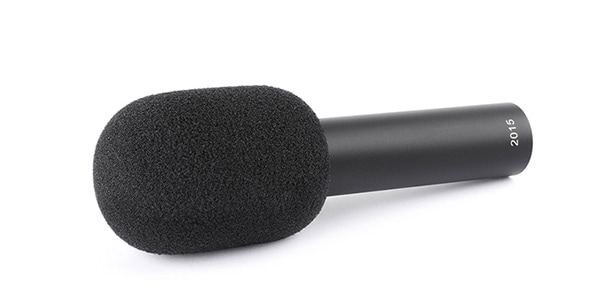

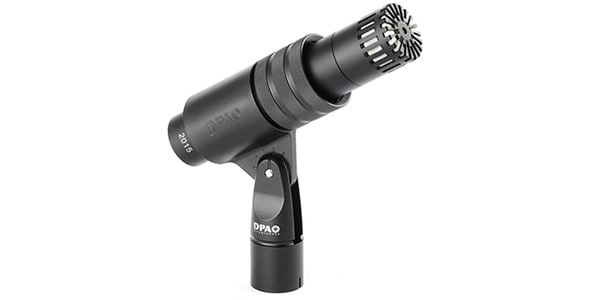

Accessories: Microphone holder (UA0961), windscreen (DUA0020), zip pouch
