LYNX STUDIO TECHNOLOGY / HILO USB B

LYNX STUDIO TECHNOLOGY / HILO USB is the pinnacle of analog conversion, a digital interface that further improves upon the Aurora (first generation model), which incorporated Lynx's most advanced components and design techniques.

■Digital Interface

2-in/6-out AD/DA converter with touch screen [USB connection] (Color: Black)
*Image shown is for reference only.

“Hilo was created for professionals seeking pure audio quality.
Designed as a true all-in-one device, Hilo features best-in-class A/D D/A conversion at its core, a variety of meters and analysis tools, multiple inputs and outputs, and flexible routing and monitoring controls, all easily configured via touch screen, These features can be easily configured, saved, and recalled from the touchscreen. Unlike conventional stereo converters, Hilo has three independent D/A converters and three analog outputs in stereo for flexible routing. The main outputs, monitor outputs, and headphone outputs each allow independent source combination and level control.”


“Key Features.
Fully independent 2-in/6-out A/D to D/A conversion with digital expansion up to 32x32
Unique custom-designed touchscreen interface
Firmware updates for additional features, improvements, and additions
Future-proof LSlot interface design - optional Thunderbolt*, USB, and Dante connectivity
Real-time meter display and analysis tools

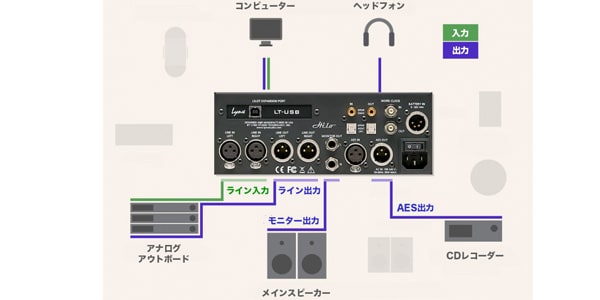

Flexible routing and monitor control
High-quality headphone amplifier
Field recordable - can be powered by a 9-18v DC battery pack in addition to standard AC power
Available in two colors - black and silver versions.

Specifications

Line-in L/R connections: female XLR connectors
Line output L/R connections: XLR male connector
Monitor output L/R connections: 1/4“” TRS connectors
Headphone output jacks: 1/4“” stereo headphone jack

AES/EBU: XLR connector with transformer couple
S/PDIF Coaxial: Transformer-coupled RCA jacks
S/PDIF Optical: Optical rectangular (TOSLINK) connector
ADAT: 8 channels @ 48 kHz (when optical connector is selected)

Sample rate: up to 192 kHz
Sample rate: supports all common sample rates up to 192 kHz, high-precision processing with SynchroLock sample clock generators

Clock Sync Source: Internal
Internal
External word clock: 75ohm TTL signal BNC connector, AES/EBU or S/PDIF input

LCD display: 480 x 272 LCD touch screen

“Computer equipped with Intel Core 2 @ 1.6 kHz or equivalent AMD processor
At least 2GB of available RAM
Windows 10 Fall Creators Update (64-bit edition)
macOS 10.12 Sierra, 10.13 High Sierra, 10.14 Mojave
One available free Thunderbolt 3 port (Thunderbolt 1/2 port compatible, requires Apple conversion adapter sold separately)
Thunderbolt 3 cable (sold separately)

*Please refer to the distributor's web page for details on the operating environment of each connection format.
https://hookup.co.jp/products/lynx-studio-technology/hilo/lslot”
