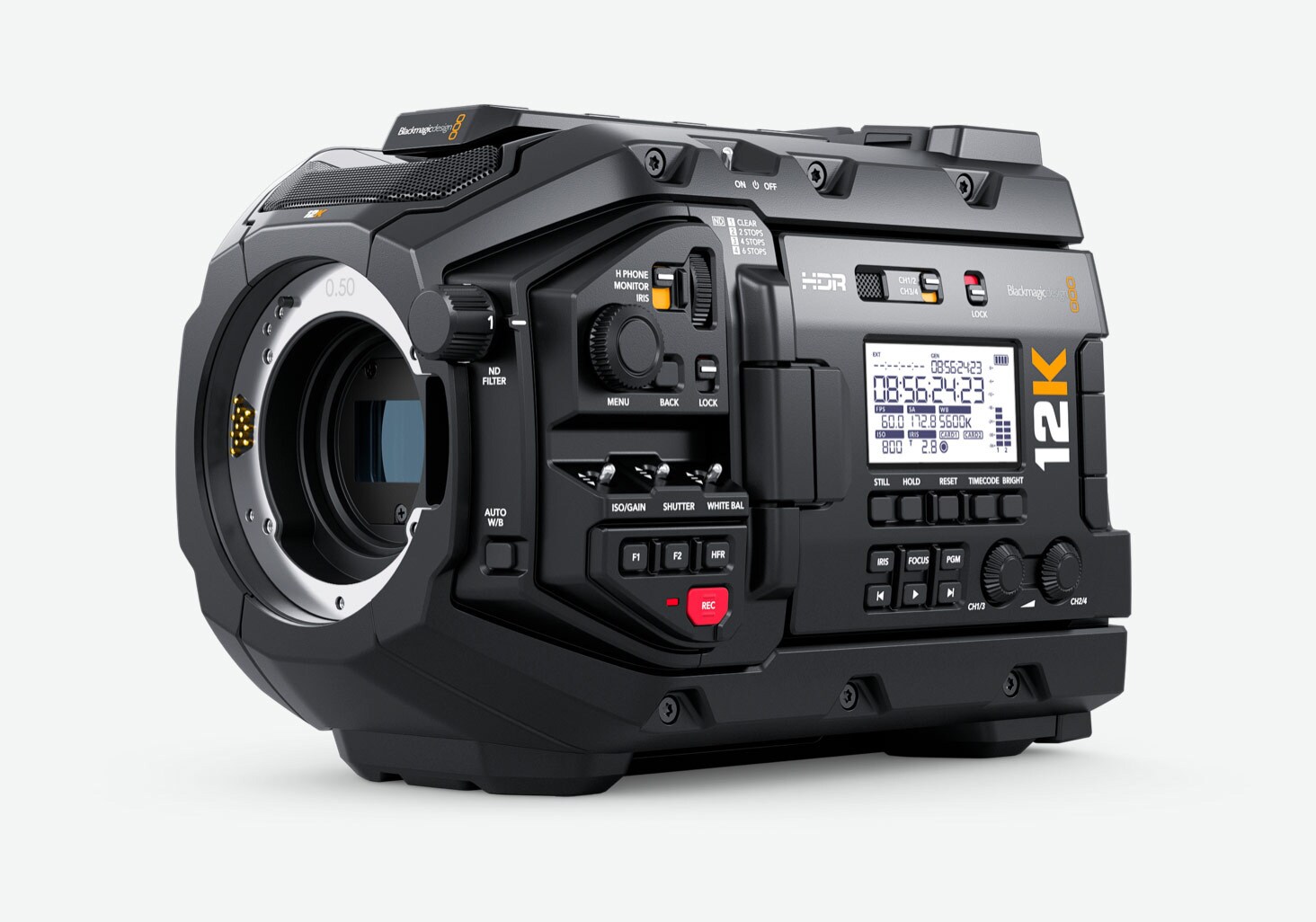

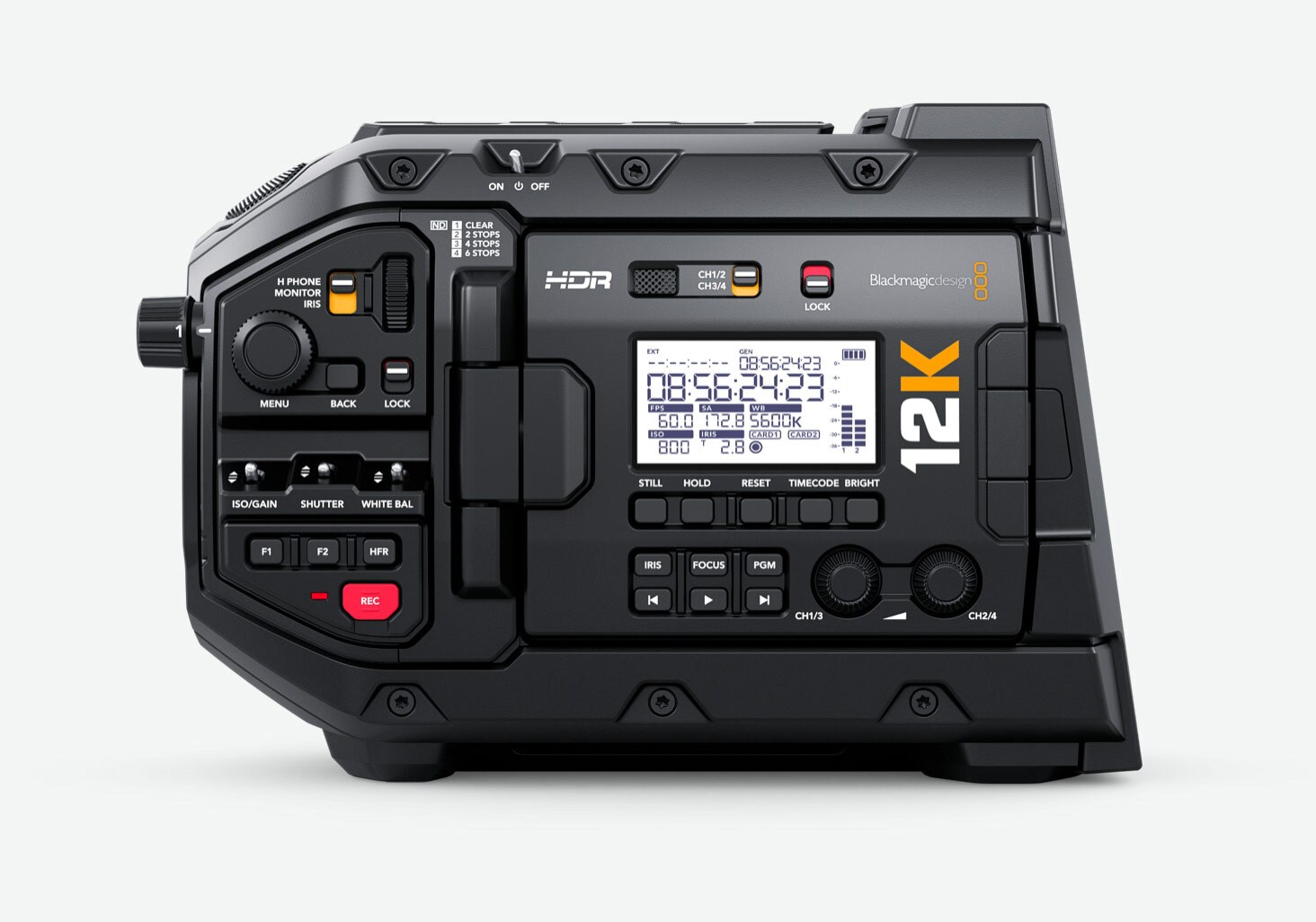

Blackmagic Design / CINEURSAMUP12KOLPF

It is a digital camera equipped with a 12K Super 35 sensor with 12288x6480 resolution and 14 stops of dynamic range.

[Camera functions]

■Effective sensor size:
27.03mm x 14.25mm (Super 35)

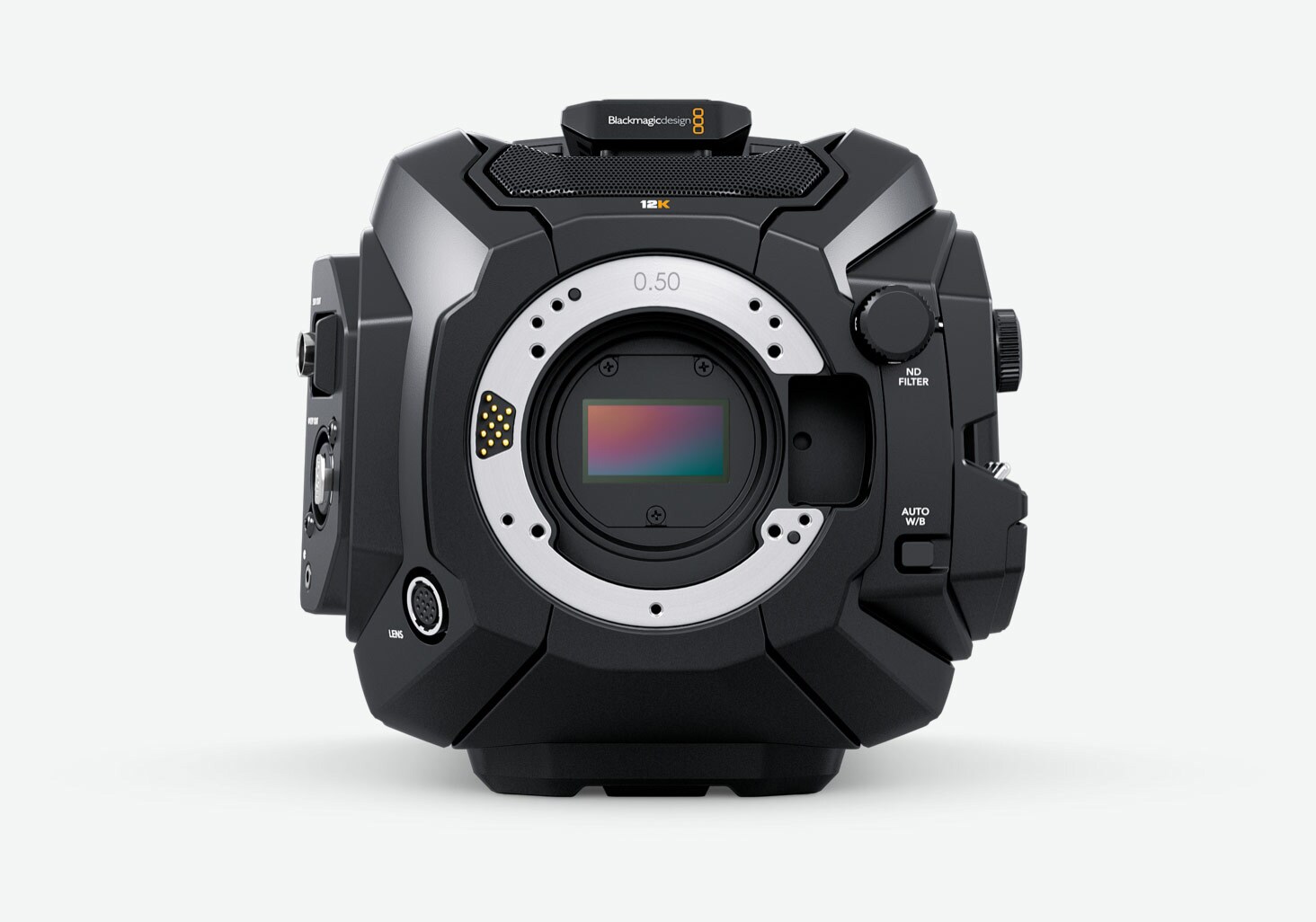

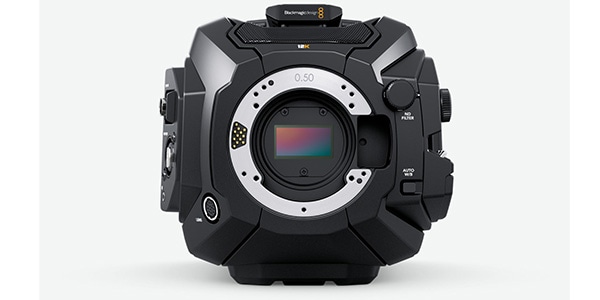

■Lens mount:
PL mount included. Interchangeable with optional EF and F lens mounts
■Lens control:
Electronic control via 12-pin broadcast connector on compatible lenses and EF mount pin on optional EF lens mount
■Dynamic range:
14 stops
■Photography resolution:
12,288x6480(12K DCI)
11,520x6480(12K 16:9)
12,288x5112(12K 2.4:1)
7680x6408(12K anamorphic)
8192x4320(8K DCI)
7680x4320(8K 16:9)
8192x3408(8K 2.4:1)
5120x4272(8K anamorphic)
6144x3240(6K Super16)
4096x2160 (4K Super16)
4096x2160(4K DCI)
3840x2160(4K 16:9)
4096x1704(4K 2.4:1)
2560x2136 (4K anamorphic)
■Frame rate:
Maximum sensor frame rate depends on selected resolution. Project frame rate supports 23.98, 24, 25, 29.97, 30, 50, 59.94, 60fps.
■High-speed frame rate:
12K 17:9 full sensor - up to 60fps
12K 2.4:1 - up to 75fps
8K DCI full sensor - up to 120fps
4K DCI full sensor - up to 120fps
8K 2.4:1 and 4K 2.4:1 - up to 160fps
6K Super 16 – up to 120fps
4K Super 16 - up to 240fps
■Built-in ND filter:
4-position IR ND filter wheel (clear, 2-stop, 4-stop, 6-stop IR ND filter)
■Focus:
If you are using a compatible lens with focus servo, the Focus button turns on autofocus. Touch and hold the LCD to specify the focus area and activate autofocus.
■Iris control:
To prevent pixel clipping in Film mode, use the iris wheel and touchscreen slider to adjust the electronically controlled manual iris on lenses, or the IRIS button to automatically set the iris on compatible lenses. In Video mode, set the average exposure of the scene
■Screen size:
4 inches
■Screen type:
capacitive lcd touch screen
■Metadata support:
Automatically adds lens data from i/Technology compatible PL lenses and electronic EF lenses when using the optional EF lens mount. Automatically record camera settings and slate data (project, scene number, takes, notes, etc.)

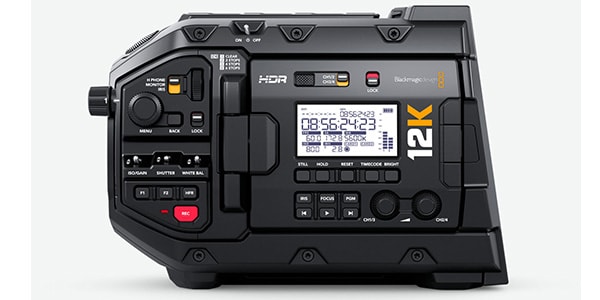

■Control:
4 inch screen touch screen menu. Push button for control, 3 configurable shortcut keys
■Time code clock:
High precision timecode clock. 1 frame error every 8 hours

【connection】
■Total video input:
12G-SDI x1
■Total video output:
12G-SDI x1, 3G-SDI monitoring x1
■SDI rate:
1.5G, 3G, 6G, 12G
■Analog audio input:
XLR analog x2 (Mic/Line/AES audio switchable). Supports phantom power
■Analog audio output:
3.5mm headphone jack x1 (supports talkback with iPhone microphone)
■Reference input:
Tri-level sync/black burst/timecode
■Remote control:
2.5mm LANCx1 for recording start/stop
Also allows iris and focus control when using compatible lenses
■Computer interface:
USB Type C 3.1 Gen2 x1 (power supply when recording to external drive)
1 x USB type C port (for software updates)

【audio】
■Microphone: Built-in stereo microphone
■Built-in speaker: Mono speaker x1

【format】
■SD video format: Not supported
■HD video format:
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080i50, 1080i59.94, 1080i60
■Ultra HD video format:
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
■SDI standard:
SMPTE 292M, SMPTE 424 Level B, SMPTE 2081-1, SMPTE 2082-1
SDI audio sampling
48kHz, 24-bit

【media】
■Media:
2 x CFast 2.0 card slots, 2 x SD UHS-II card slots, 1 x USB-C 3.1 Gen 2 expansion port (power supply when recording to external media)
■Other media:
1 x 2.5-inch drive slot (supports 7mm and 9.5mm U.2 NVMe SSD or SATA SSD when using optional URSA Mini Recorder)
■Media format:
Media can be formatted to exFAT (Windows/Mac) or HFS+ (Mac)

[Supported codec]
■ Codec:
Blackmagic RAW constant bitrate 5:1
Blackmagic RAW constant bitrate 8:1
Blackmagic RAW constant bitrate 12:1
Blackmagic RAW constant bitrate 18:1
Blackmagic RAW fixed quality Q0
Blackmagic RAW fixed quality Q1
Blackmagic RAW fixed quality Q3
Blackmagic RAW fixed quality Q5

【control】
■External control:
Blackmagic SDI Camera Control Protocol, iPad control, Bluetooth control, 2.5mm LANCx1 (for lens/recording control)

[Talkback & Tally]
■Talkback:
SDI channels 15 & 16, iPhone headset
■Live tally indicator:
Tally display on LCD, URSA Viewfinder, URSA Studio Viewfinder
software

[Bundled software]
Blackmagic OS
DaVinci Resolve Studio (activation key) for Mac and Windows
Blackmagic Camera Setup
Blackmagic RAW Player
Blackmagic RAW QuickLook Plugin
Blackmagic RAW SDK
Blackmagic RAW Speed ​​Test

【operating system】
Mac 10.15 Catalina,
Mac 11.1 Big Sur or later
Windows 10

[Size, included items, warranty, etc.]
■SIZE: 150.4(W)x146.8(H)x223.0(D)　2.55kg

■Included items
Blackmagic URSA Mini Pro 12K OLPF
dust turret cap
PL lens mount
power supply
DaVinci Resolve Studio (activation key)

*The warranty period for this product is one year of the manufacturer's warranty.
