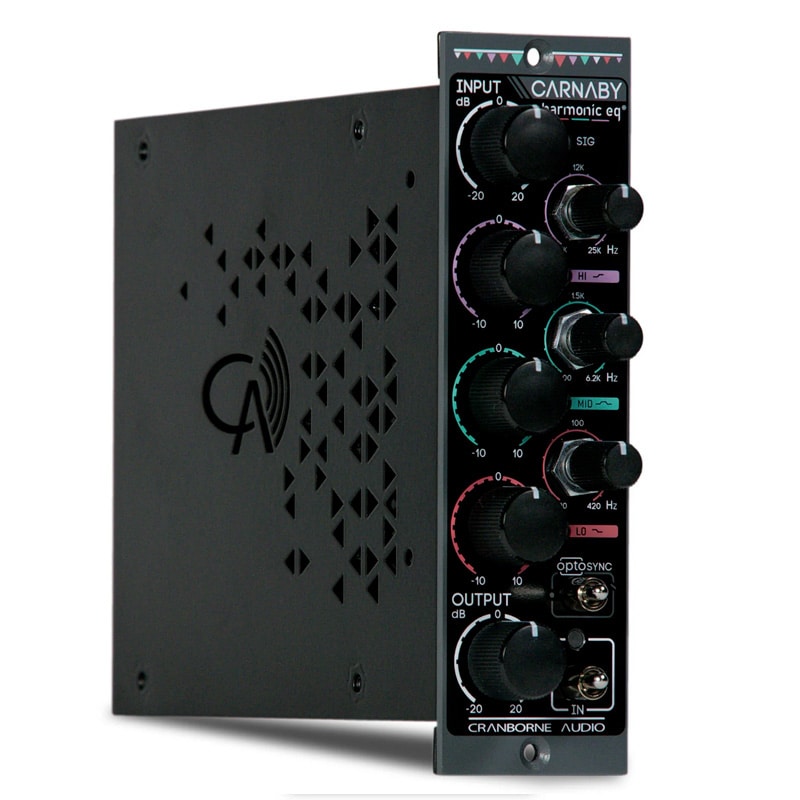

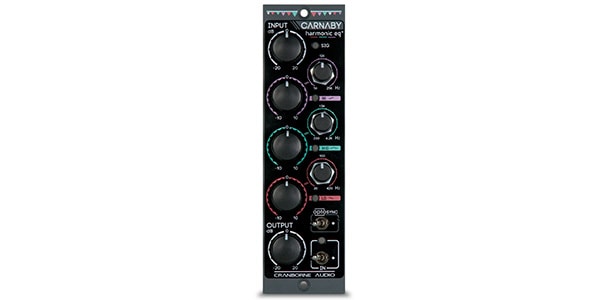

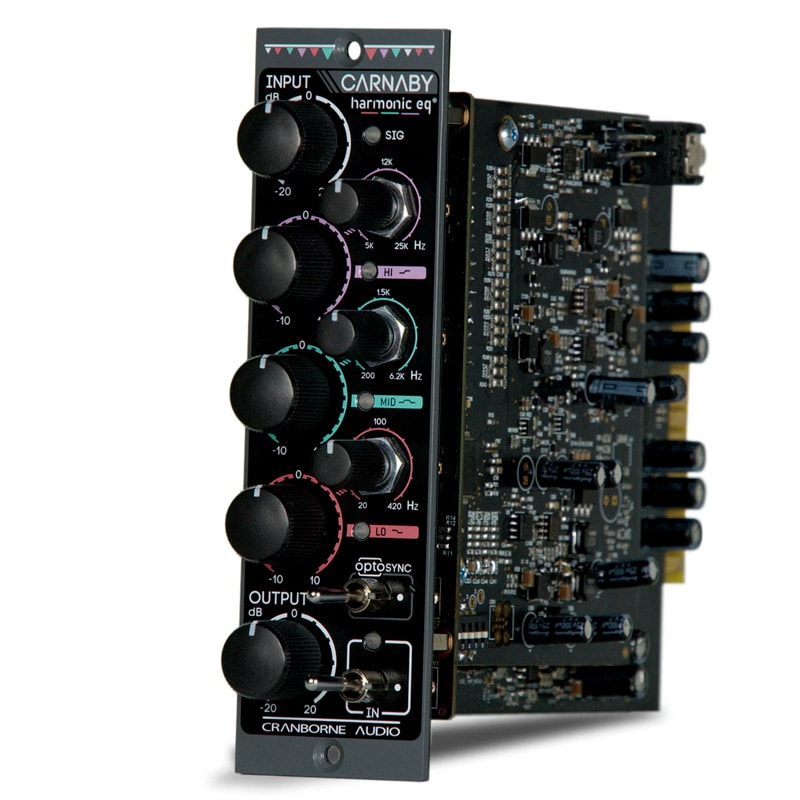

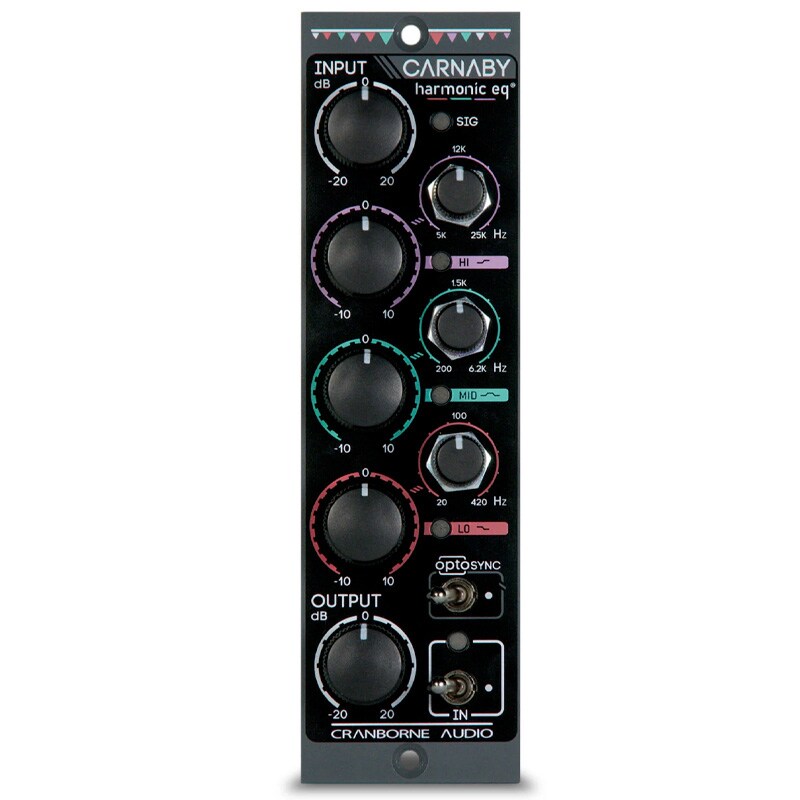

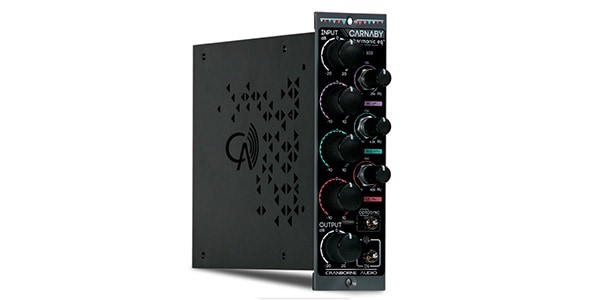

Cranborne Audio / Carnaby 500

Cranborne Audio / Carnaby 500 is a 3-band parametric EQ with a harmonic EQ circuit.

■500 series module
■Parametric EQ

・3-band parametric EQ with harmonic EQ circuit
Boost and cut frequency components using harmonic saturation
・Equipped with OptoSync function for wireless stereo link
・You can drive harder depending on the input level.

■A World First
・3-band parametric EQ with harmonic EQ circuit
・LO/HI shelving band with ±10dB boost/cut and harmonic saturation
・MID band with ±10dB boost/cut and fixed Q, harmonic saturation
・Equipped with LED indicator to display saturation level
・Dense clean EQ effect with ±20dB input/output level
・Equipped with OptoSync function for wireless stereo link and auto calibration for stereo matching
・True bypass IN/OUT switching with DIP switch
・Stepped controls provide quick recall and precise feel

Carnaby 500 is a unique and innovative 3-band parametric EQ.
Analog EQ uses harmonic saturation to boost and cut frequency content, enhancing your sound with the equalizer's familiar controls and true analog harmonic saturation for any source.

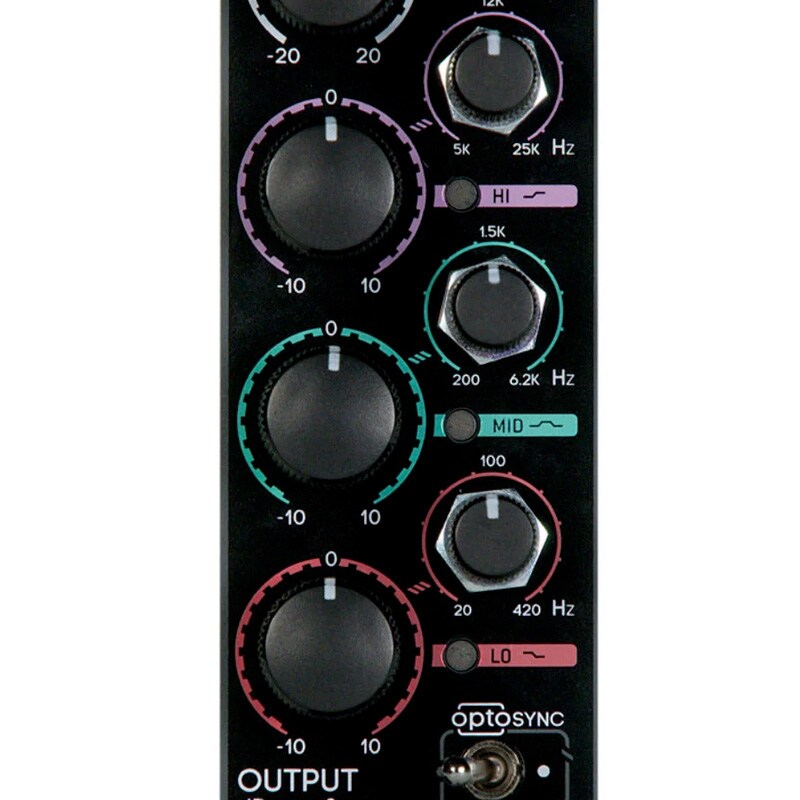

■3-Band Parametric EQ With More
Carnaby 500 features three interactive bands, each with ±10dB boost/cut and overlap frequency controls. Each band has a unique blend of overtones appropriate to that frequency band for maximum musicality.

・HI Band
Naturally extending high frequencies with smooth saturation from 5kHz to 25kHz, giving vocals and acoustic instruments the ultimate air and breath.

・MID Band
The MID band is a peaking filter with a fixed Q and a wide frequency range from 200Hz to 6.2kHz. Saturation adds harmonic enhancement to a source anywhere within its frequency range.

・LO Band
It uses hard clipping saturation in the 420Hz to 20Hz range and extends the low end with subharmonic frequencies.

■Dynamic Response
Unlike typical EQs, Carnaby 500 has a dynamic response. When driven harder, the sum of boost/cut and harmonics increases.
Input and output level controls for each band allow ±20dB level adjustment, and you can use the input controls to drive the Carnaby 500 harder for more saturation and distortion effects, or back off as needed for a cleaner EQ.

■Stereo-Link via OPTOSYNC
It features an innovative stereo link feature called OPTOSYNC, which allows two Carnaby 500 units to function as a stereo pair.
OPTOSYNC synchronizes all controls from the left unit to the right unit without cables or internal fixtures. If you turn on OPTOSYNC on all slave units, they will synchronize wirelessly with the master unit using LED and optical communication.
You can also link multiple units using OPTOSYNC to apply the same equalization to the entire summing mixer or multichannel surround mix.

■Product specifications
Test Signal Path: APx555 (Line Out) - Input - Line Output - APx555 (Line In)
Max Input Level: +26dBu (<0.003% THD)
Max Output Level: +26dBu (<0.003% THD)
Noise Floor: <-93dBu all bands bypassed
Input Impedance: Line = 10 kOhms
Output Impedance: Line = 150 Ohms
Current Draw: 140mA per rail - idle, 160mA peak
