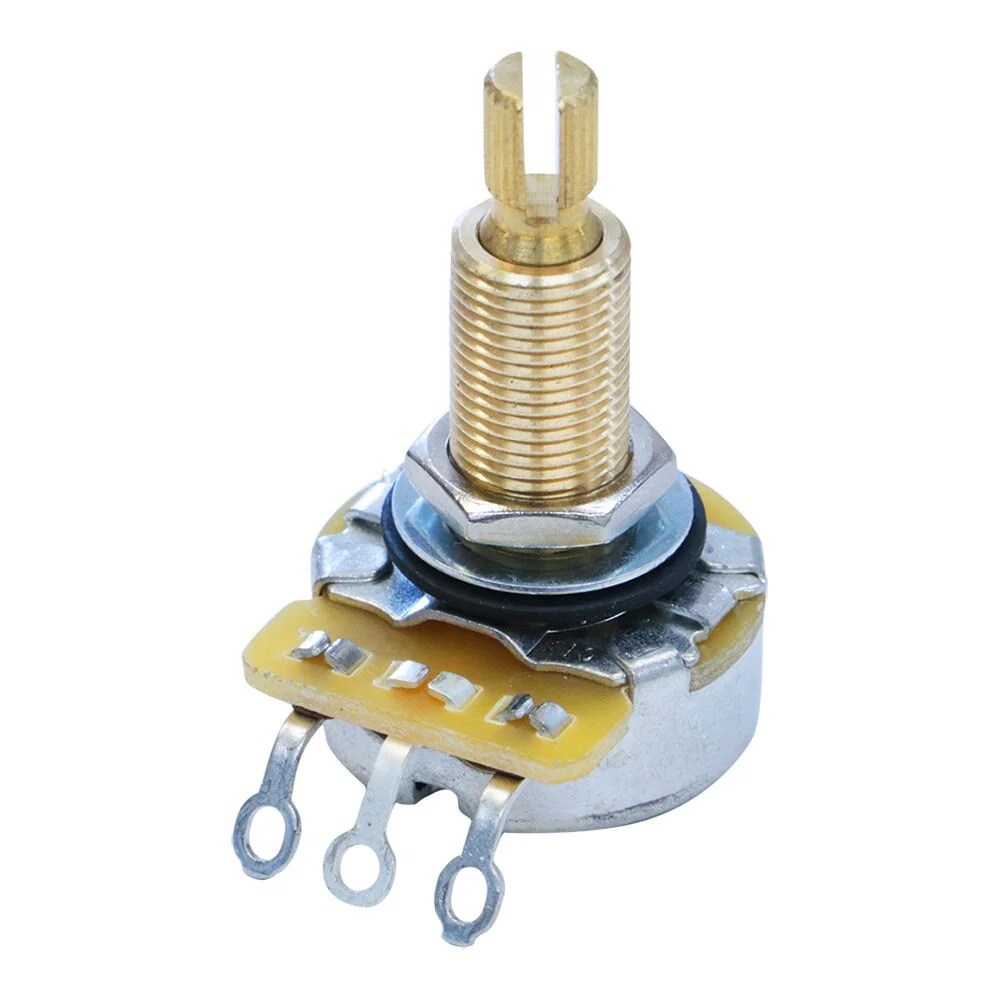

SCUD / CTS-A500-L

Inch-standard long shaft pot made by CTS. 500kΩ A-curve resistance specification, mainly used for humbucker PUs.

■Control pots for guitar/bass
■Made by CTS
■A-curve
■500kΩ
■Split shaft
■Long shaft
■Accessory: Nut/ Washer/ Lock washer 1 each

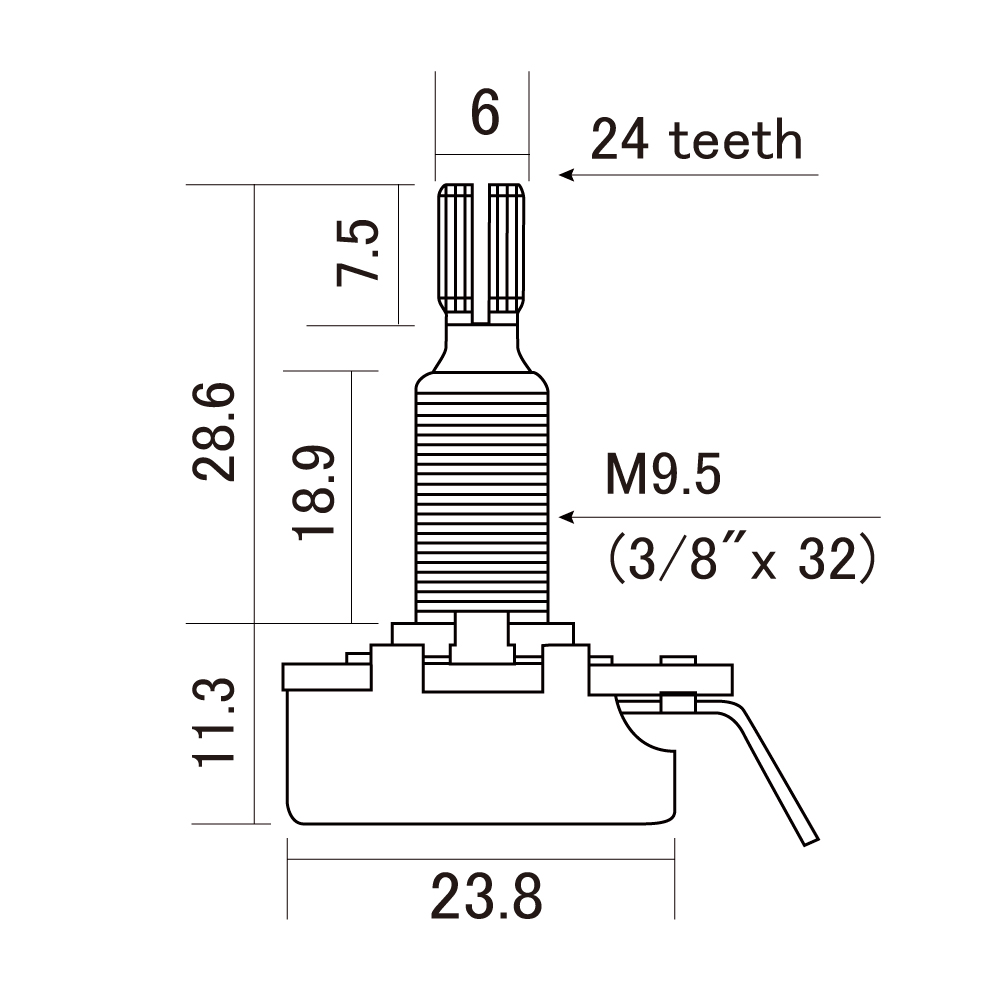

■Size
Body outer diameter: approx. 23.8 mm
Body height: approx. 11.3 mm
Shaft height: approx. 28.6 mm
Threading diameter: 9.5 mm
Threading height: approx. 18.9 mm
Knob fitting diameter: approx. 6.0 mm
Knob attachment height: approx. 7.5 mm
■inch standard

*The images are for illustrative purposes only.
