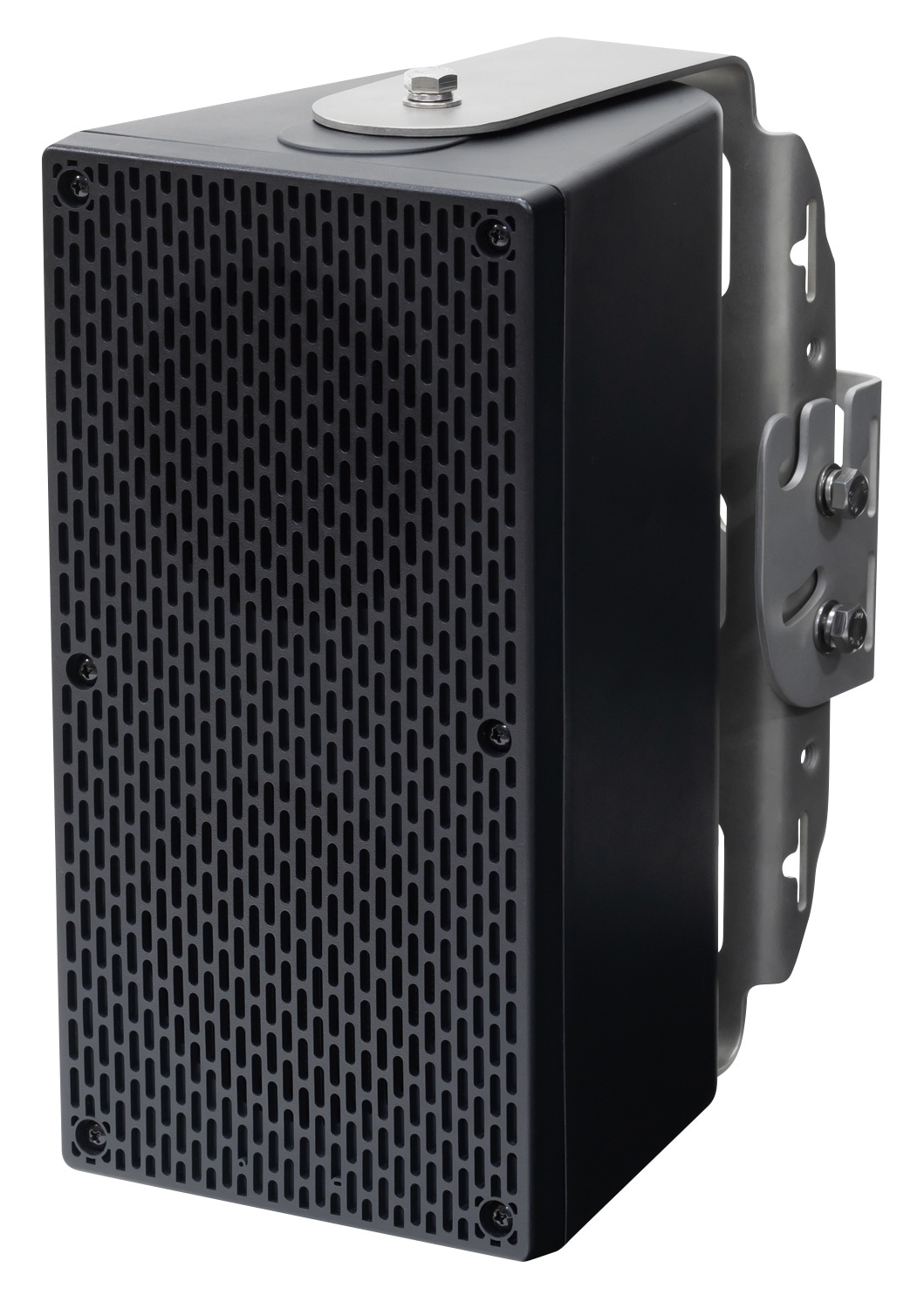

UNI-PEX / CWS-20T

A drip-proof cone speaker that can be installed outdoors with IPX4 waterproof performance. Adoption of linear sound source theory provides directionality and reduces sound pressure attenuation over distance.

Features (from specifications)
●Newly developed φ10cm dynamic speaker enables clear sound reproduction.
●By adopting the linear sound source theory, it has directivity, has little sound pressure attenuation over distance, and can transmit audio to the required space.
●Built-in matching transformer (high impedance 100 series) makes it ideal for multiple simultaneous use and extended wiring.
●It has excellent corrosion resistance by using stainless steel bolts and screws for the mounting parts.
●This is a drip-proof speaker that complies with ""IEC 60529 IPX4"".
●Since there is a fall prevention wire mounting bracket, it is possible to install a fall prevention wire (procured separately).

■Ratings (from specifications)
Model: Full range sealed type
Rated input: 20W
Input impedance: 500 Ω (20 W) / 1 kΩ (10 W) / 2 kΩ (5 W) switched by speaker cable
Emergency type: L class
Sound power level: p=98 dB (1 W)
Directional characteristic classification: X
Output sound pressure level: 94 dB (1 W/1 m)
Directivity angle: Horizontal approx. 110° x Vertical approx. 40° (at 2 kHz -6 dB) (when facing vertically)
Playback frequency band: 120 Hz to 17 kHz (-20 dB)
Operating temperature range: -20℃ to 55℃
Dustproof/waterproof performance: IPX4
Exterior:
・Enclosure (front panel, cabinet): (PP resin) Munsell N1.5 Approximate color: Black paint
・Speaker mounting bracket, fixing bracket: (stainless steel)
・Mounting screws: (stainless steel)

Dimensions: Width 155 mm, Height 293 mm, Depth 170 mm (excluding speaker mounting brackets and fixing brackets)
Mass: Approx. 4.4 kg (main body and speaker mounting bracket), approx. 0.4 kg (fixing bracket)
Angle adjustment range:
・Used in portrait orientation Horizontal: 90° left and right Vertical: 0° to 30° downward
・Horizontal use: Horizontal: 0° to 30° left and right Vertical: 0° to 90° downward
・Used under the eaves (ceiling) Vertical: downward 90° left and right

accessories :
Hex bolt (M8×20) 4, flat washer (M8) 4, spring washer (M8) 4, fixing bracket 1
UNI-PEX label 1, instruction manual (with warranty) 1
