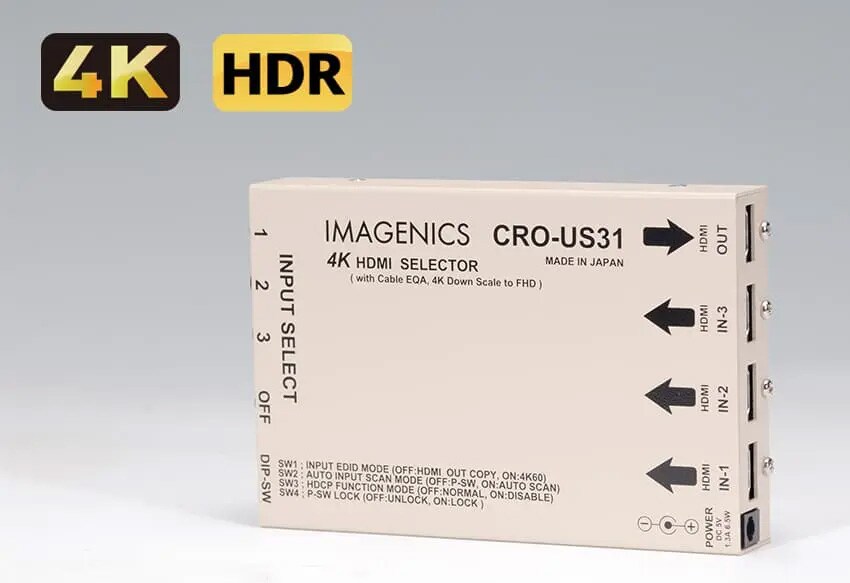

IMAGENICS / CRO-US31

A full-spec 4K switcher equipped with an automatic scan function. It also supports HDR images.

■Equipped with automatic scan function 4K full spec compatible switcher

[4K signal format]
TMDS clock: 25 MHz to 340 MHz
■Pixel clock: 25MHz to 600MHz
■Data rate: 0.75-18Gbps
■HDCP: 1.4/2.2
■Supported resolutions: 4K60p 4:4:4 24bit, 4K60p 4:2:2 36bit, 4K30p 4:4:4 36bit, etc.

[Video signal method]
■TMDS signal (digital RGB/YPbPr) pixel clock 25 MHz to 600 MHz (TMDS clock 25 MHz to 340 MHz)
■Automatically supports HDMI signals equivalent to 4K, D1 to D5 and PC signals from 640x480 to 4,096x 2,160
■For HDMI signals, supports up to 36-bit deep color signal (4K60@422) or 24-bit full color (4K60@444) standard-compliant signal with data rate up to 18Gbps

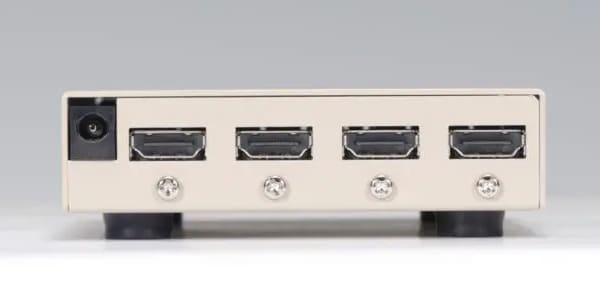

[Input/output]
■HDMI input:
3 HDMI Type A 19-pin connectors (HDCP 1.4, 2.2 compatible, DVI signal input possible)
■HDMI output:
1 HDMI TypeA 19-pin connector (HDCP 1.4, 2.2 compatible, automatic color space conversion and DVI signal output possible)
[Input cable length]
■Video up to 6Gbps 2K ~ 30m such as PC (VESA), D5, etc.
■Video up to 10.2Gbps such as 4K30, 60(420) ~20m
■Video up to 18Gbps such as 4K60 (422,444) ~ 10 m
*When using an HDMI long cable manufactured by IMAGENICS and outputting from our specified product output signal
*Excluding output signals from consumer/household devices and other companies' products
[Output side connection cable length]
■PC(VESA), D5, etc. Video up to 6Gbps 2K ~ 10 m
■Video up to 10.2 Gbps such as 4K30, 60(420) ~ 5 m
Video up to 18 Gbps such as 4K60 (422,444) ~ 3 m
*When using an HDMI cable manufactured by IMAGENICS
*Due to the reception sensitivity of the display device, it may be shorter than this.

[EDID emulation function]
■Always copy and back up the EDID data from the HDMI OUT-1 terminal (default setting)
: DIP-SW No. 1 enables emulation of the equivalent of a general 4K60 compatible TV/monitor.
【others】
■Function:
Input HDCP operation forced prohibition function Acquisition EDID data adaptive color space conversion and down conversion function

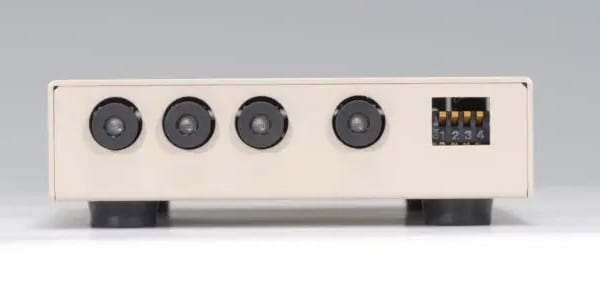

Automatic input selection function, illuminated pushbutton switch flashing message function, pushbutton switch locking function,
Backup function for final selection state (semi-permanent), etc.
■Power supply: DC5V 1.3A 6.5W (maximum)
■SIZE: 100(W)x25(H)x150(D)mm *Excluding protrusions
■Weight: approx. 550g
■Accessories:
AC100 V27 VA50Hz 60 Hz 1 AC adapter for domestic use (5 V 2.3 A output with lock)
HDMI retaining bracket (CL-1) and 4 sets of cable bundle bands
The HDMI retaining metal fitting (CL-1) may not have the retaining function depending on the thickness of the HDMI connector to be installed.
