ROLAND / VR-6HD

This is a direct streaming AV mixer that integrates all the functions necessary for video distribution and production, from video/audio switching to synthesis and distribution management, all in one unit!

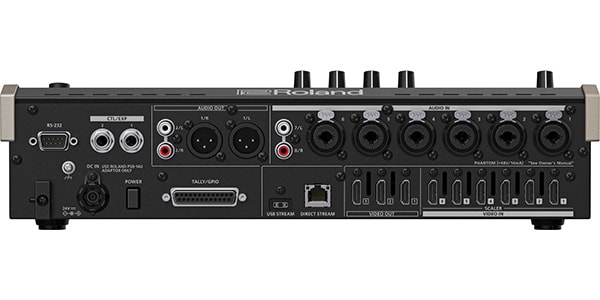

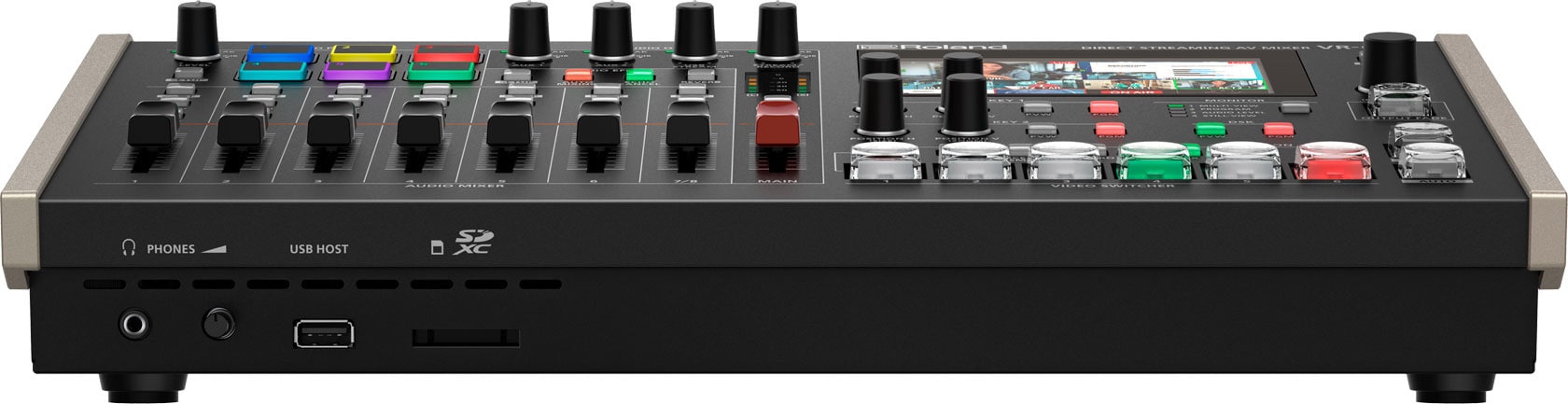

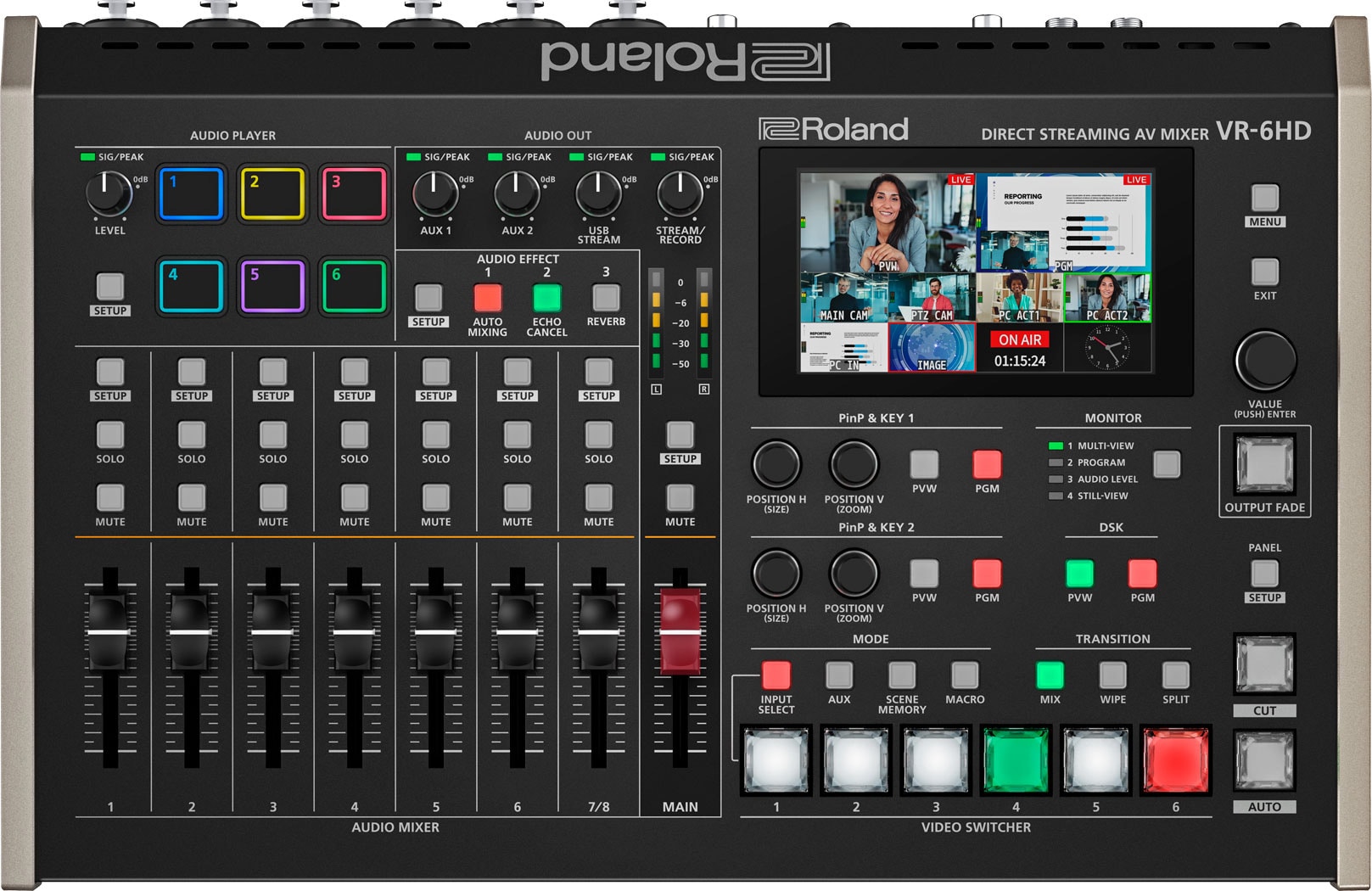

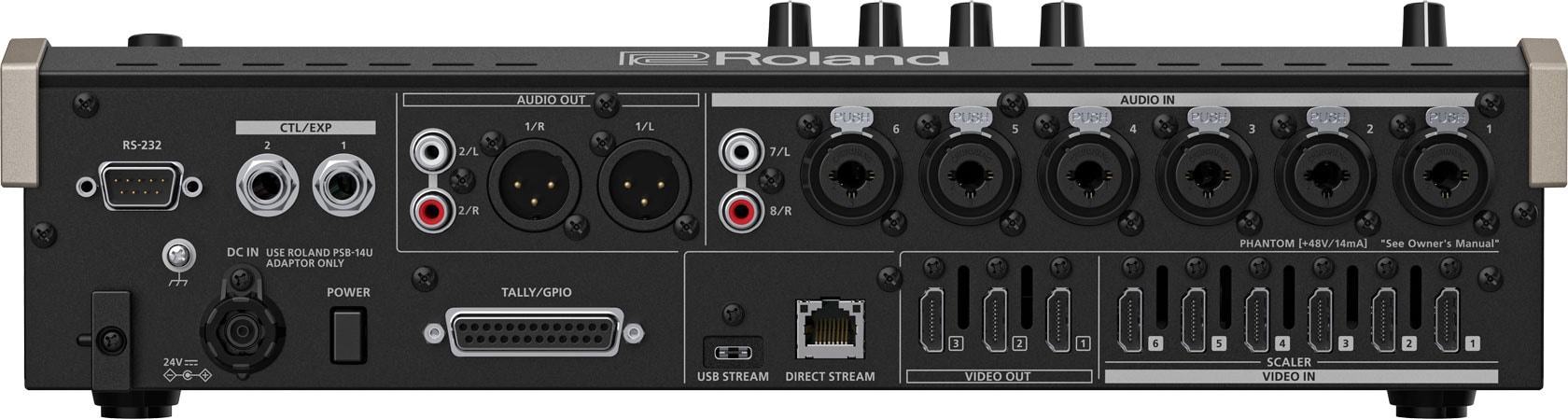

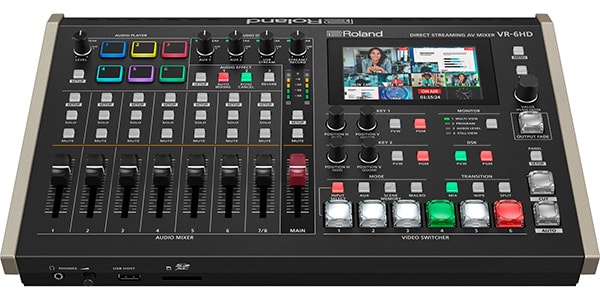

■Direct streaming AV mixer

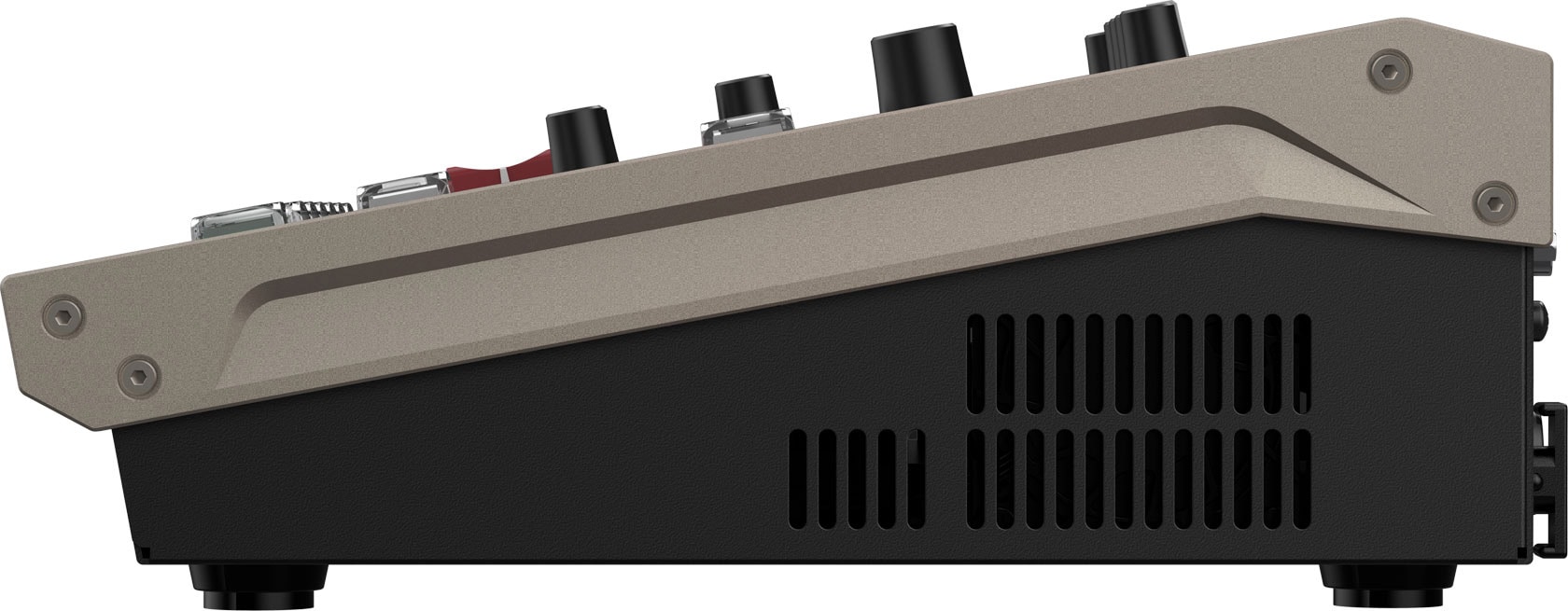

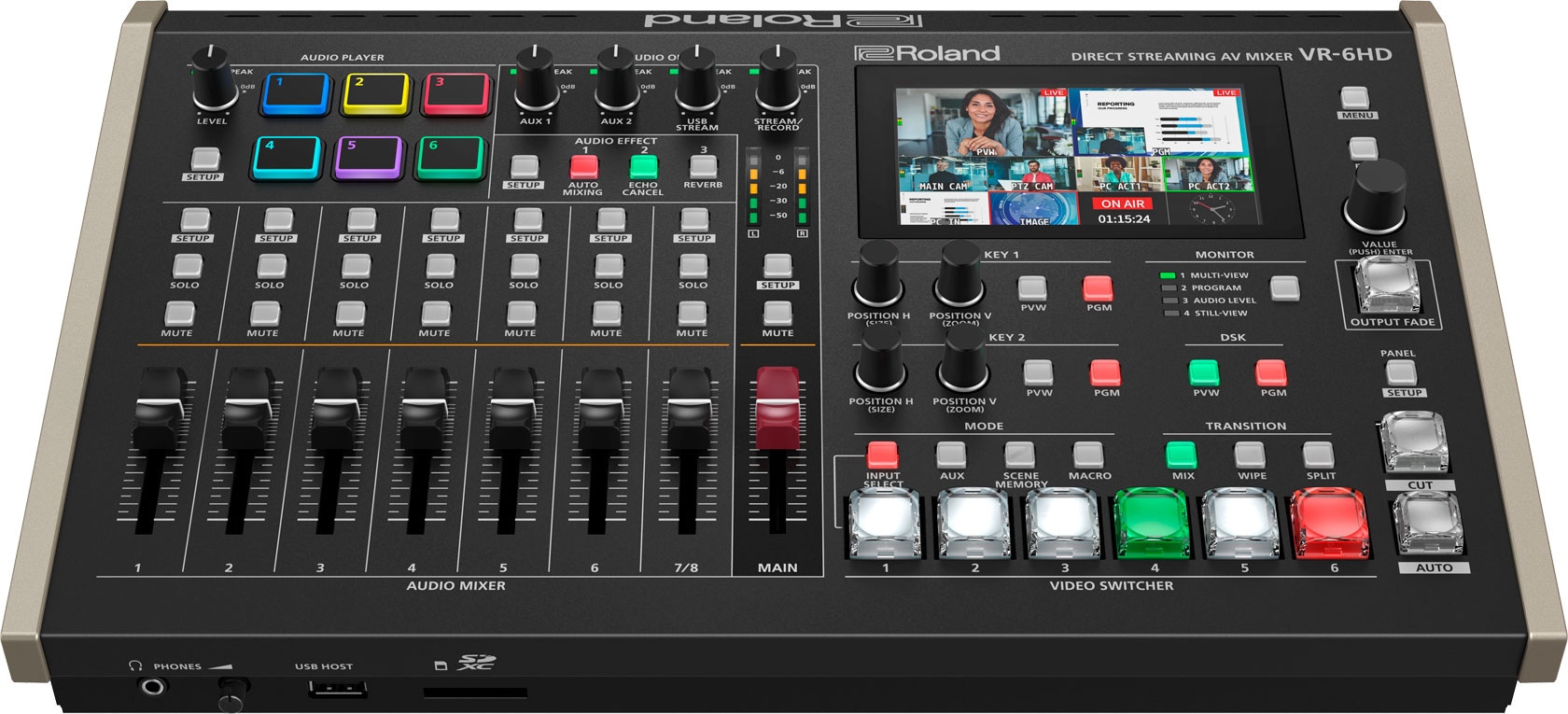

【picture】
■Video processing:
4:2:2(Y/Pb/Pr), 8 bit
■Number of video channels:
6 channels
■Input video format
VIDEO IN 1 to 6:
480/59.94i, 480/59.94p, 720/59.94p, 1080/59.94i, 1080/59.94p, 1080/60p, 1080/29.97p, 1080/30p *1
576/50i, 576/50p, 720/50p, 1080/50i, 1080/50p, 1080/25p *2
1080/23.98p, 1080/24p
VGA (640×480/60Hz), SVGA (800×600/60Hz), XGA (1024×768/60Hz)
WXGA (1280×800/60Hz), SXGA (1280×1024/60Hz)
FWXGA (1366×768/60Hz), SXGA+ (1400×1050/60Hz)
UXGA (1600×1200/60Hz), WUXGA (1920×1200/60Hz)
*Refresh rate is the maximum value for each resolution
*CEA-861-E, VESA DMT Version 1.0 Revision 11 compliant
*1920×1200/60Hz：Reduced blanking
*Video input in interlaced format is converted to progressive format using internal processing.
*1 When frame rate is set to 59.94Hz, 60Hz
*2 When frame rate is set to 50Hz
■Output video format
VIDEO OUT 1-3:
720/59.94p *1, *4
720/60p *1, *5
720/50p *1, *8
1080/59.94i *2, *4
1080/60i *2, *5
1080/50i *2, *8
1080/59.94p *3, *4
1080/60p *3, *5
1080/29.97p *3, *6
1080/30p *3, *7
1080/50p *3, *8
1080/25p *3, *9
1080/23.98p *3, *10
1080/24p *3, *11
*1 When output format is set to 720p
*2 When output format is set to 1080i
*3 When output format is set to 1080p
*4 When frame rate is set to 59.94Hz
*5 When frame rate is set to 60Hz
*6 When frame rate is set to 29.97Hz
*7 When frame rate is set to 30Hz
*8 When frame rate is set to 50Hz
*9 When frame rate is set to 25Hz
*10 When frame rate is set to 23.98Hz
*11 When frame rate is set to 24Hz
USB STREAM:
1080/59.94p, 720/59.94p, 640×480/59.94p *1
1080/60p, 720/60p, 640×480/60p *2
1080/29.97p, 720/29.97p, 640×480/29.97p *3
1080/30p, 720/30p, 640×480/30p *4
1080/50p, 720/50p, 640×480/50p *5
1080/25p, 720/25p, 640×480/25p *6
1080/23.98p, 720/23.98p, 640×480/23.98p *7
1080/24p, 720/24p, 640×480/24p *8
*Supports uncompressed (YUY2) and compressed (Motion JPEG)
*1 When frame rate (USB Out) is set to 59.94Hz
*2When frame rate (USB Out) is set to 60Hz
*3 When setting frame rate (USB Out) 29.97Hz
*4 When setting frame rate (USB Out) 30Hz
*5When setting frame rate (USB Out) 50Hz
*6 When setting frame rate (USB Out) 25Hz
*7 When setting frame rate (USB Out) 23.98Hz
*8 When setting frame rate (USB Out) 24Hz
■Distribution, recording format
720/59.94p *1, *3
720/60p *1, *4
720/29.97p *1, *5
720/30p *1, *6
720/50p *1, *7
720/25p *1, *8
1080/59.94p *2, *3
1080/60p *2, *4
1080/29.97p *2, *5
1080/30p *2, *6
1080/50p *2, *7
1080/25p *2, *8
1080/23.98p *2, *9
1080/24p *2, *10
*1When output format is set to 720p
*2When output format is set to 1080p
*3 When frame rate (Stream/Record) is set to 59.94Hz
*4When frame rate (Stream/Record) is set to 60Hz
*5When frame rate (Stream/Record) is set to 29.97Hz
*6 When frame rate (Stream/Record) is set to 30Hz
*7 When frame rate (Stream/Record) is set to 50Hz
*8 When frame rate (Stream/Record) is set to 25Hz
*9 When frame rate (Stream/Record) is set to 23.98Hz
*10 frame rate (when setting Stream/Record24Hz)
File format: MP4
Codec:
H.264, target bitrate up to 20,000kbps
AAC LC, 16bit, 48kHz, stereo, target bitrate up to 384kbps
File format: WAV
Codec:
Linear PCM, 16bit, 48kHz, stereo
*If either the distribution, recording format, or the file played on the video player exceeds 1080/30p, the distribution, recording and video player functions cannot be used at the same time.
*If the total of the distribution/recording bit rate setting and the bit rate of the file played on the video player exceeds 20,000 kbps, the distribution/recording function and the video player function cannot be used at the same time.
■Video player
File format: MP4 (H.264, AAC), average bitrate 20,000kbps
Up to 1080/60p
*If either the distribution, recording format, or the file played on the video player exceeds 1080/30p, the distribution, recording and video player functions cannot be used at the same time.
*Distribution, recording bit rate settings, and the bit rate of files played on video players.
If the total bit rate exceeds 20,000kbps, the distribution, recording function and video
Layer functions cannot be used at the same time.
■Still Image:
Bitmap File (.bmp) up to 1920 x 1080, 24-bit color, uncompressed
PNG File (.png) maximum 1920×1080, 24-bit color
JPEG File (.jpg .jpeg) up to 1920 x 1080, 24-bit color
*Up to 16 images can be stored in the built-in non-volatile memory
*Can be exported to SD card and USB memory
*PNG alpha channel compatible
■Video effects
Switching: Cut, Mix (Dissolve/Fam/Nam), Wipe (8 types), Split (2 types)
Synthesis: Picture-in-picture x 2 (square, round, diamond) keys x 2
(luminance key, chroma key), DSK (luminance key, chroma key, alpha key, external key)
Others: Multi-view (3 types), horizontal flip, vertical flip, still image capture, still image playback, output fade (audio, video: white or black), test pattern output, distribution delay

【others】
■Bluetooth:
Standard version 5.0
Supported profiles: A2DP (audio), GATT (MIDI over Bluetooth Low Energy)
Compatible codec: SBC (Supports content protection using SCMS-T method)
■Display:
4.3 inch graphic color LCD (WQVGA 480x272dots) touch screen
■Power supply: AC adapter
■Current consumption: 2.3A
■Power consumption: 55W
■Operating temperature: 0~+40℃
■SIZE: 370(W)x100(H)x242(D)mm
■Mass: 3.4kg (excluding AC adapter)
■Accessories
Warranty card, startup guide, ""Safety Precautions"" flyer, AC adapter, power cord
■Optional items:
Footswitch: BOSS FS-5U, FS-6, FS-7
Expression pedal: EV-5, EV-30, BOSS FV-500L, FV-500H
*0dBu=0.775Vrms
