Blackmagic Design / VHUBSMAS12G1010

An advanced zero-latency video router that supports SD, HD, and Ultra HD in any combination simultaneously.

■Video router

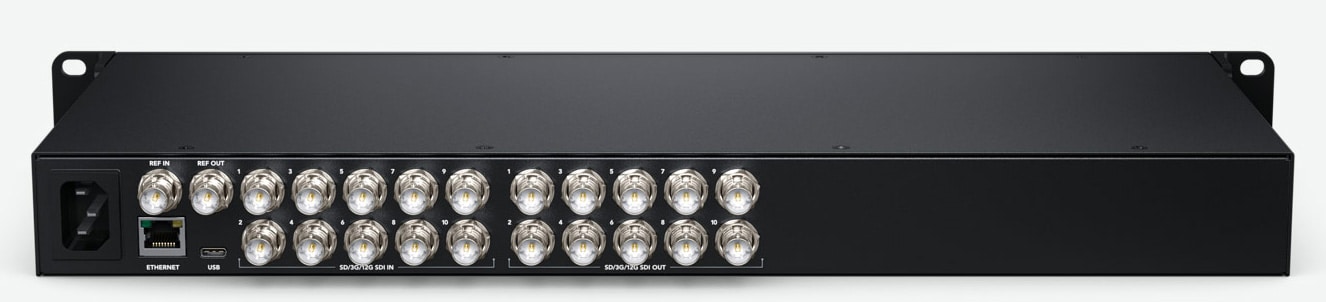

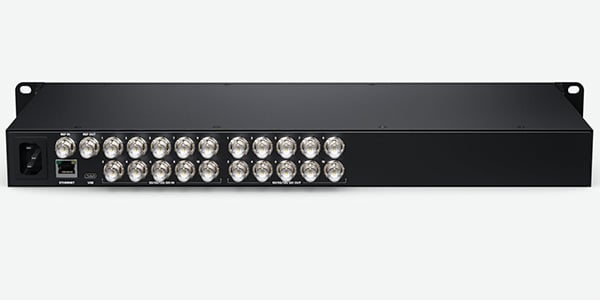

【connection】
■SDI video input: 10
*Recommended cable
Belden 1694A
Canare L-4.5CHD
Cable distance
3G-SDI: 100m
6G-SDI: 80m
12G-SDI: 50m
■SDI video output: 10
■SDI rate:
DVB-ASI, 270Mb, 1.5G, 3G, 6G, 12G
■Video input resynchronization: Not supported
■SDI reclocking:
All SDI outputs
■Reference input:
Trilevel sync or black burst
■Reference output:
Reference termination loop output
■Ethernet:
Supports 10/100/1000 BASE-T
■Computer interface: USB-C

【format】
■SD video format:
525i59.94 NTSC, 625i50 PAL
■HD video format:
720p50, 720p59.94, 720p60
1080i50, 1080i59.94, 1080i60
1080p23.98, 1080p24, 1080p25, 1080p29.97
1080p30, 1080p47.95, 1080p48, 1080p50
1080p59.94, 1080p60
1080PsF23,98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
■2K video format:
2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI
2Kp30 DCI, 2Kp47.95 DCI, 2Kp48 DCI
2Kp50 DCI, 2Kp59.94 DCI, 2Kp60 DCI
2KPsF23.98 DCI, 2KPsF24 DCI, 2KPsF25 DCI
2KPsF29.97 DCI, 2KPsF30 DCI
■Ultra HD video format:
2160p23.98, 2160p24, 2160p25, 2160p29.97
2160p30, 2160p47.95, 2160p48, 2160p50
2160p59.94, 2160p60
■4K video format:
4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI
4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI
4Kp50 DCI, 4Kp59.94 DCI, 4Kp60 DCI

■SDI standard:
SMPTE 259M, SMPTE 292M, SMPTE 296M
SMPTE 372M, SMPTE 424M, SMPTE 425M level A and B
SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-10
ITU?R BT.656 and ITU?R BT.601
■SDI audio sampling
TV standard sample rate (48kHz/24-bit)
■SDI video sampling:
YUV 4:2:2, RGB 4:4:4
■SDI color accuracy:
10/12-bit RGB 4:4:4 (all HD and 2K modes, Ultra HD mode up to 2160p30, 4K mode up to 4Kp30 DCI), 10-bit YUV 4:2:2 (all modes)
■SDI color space:
REC 601, REC 709, REC 2020
■SDI automatic switching:
Each input automatically selects 270Mb SD-SDI, 1.5G HD-SDI, 3G-SDI Level A and Level B, 6G-SDI, 12G-SDI, DVB-ASI, allowing you to use different TV formats on individual inputs
■Supported SDI metadata:
Supports video payload ID attached to SMPTE 352M data

【control】

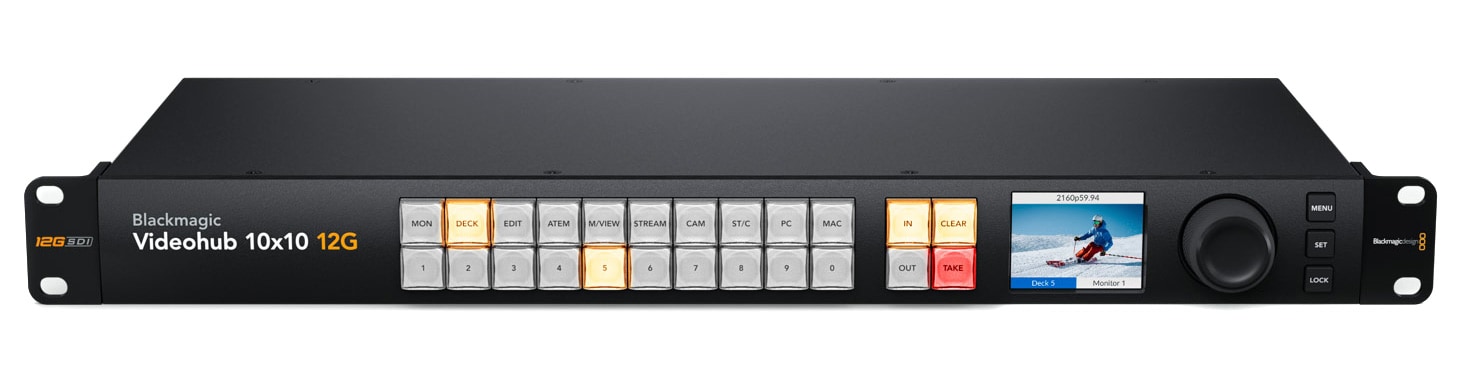

■Built-in control panel:
24 buttons (for local control of Videohub), search dial
3 buttons (for menu control), 2.2 inch color display
■External control panel:
Blackmagic Videohub software control panel included (Mac/Windows compatible)
Compatible with Videohub Smart Control Pro and Videohub Master Control Pro hardware panels
Includes Blackmagic Videohub SDK and Ethernet Videohub Control Protocol
■Control panel connection:
ethernet

【software】
■Software control:
Includes free router controls for Windows and Mac
■Built-in software upgrade:
Use the included update application

【operating system】
■Mac:
Mac 12.0 Monterey
Mac 13.0 Ventura or later
■Windows:
Windows 10 64-bit
Windows 11

【display】
■Display:
Built-in 2.2-inch LCD (video and menu settings)

[Power conditions]
■Power supply:
Built-in 100-240V AC 50/60Hz x1
Requires IEC power cable
■Power outage protection:
Save crosspoint connection settings and instantly restore them when power is restored
■Power consumption:
Max 27.5W
【install】
■Height: 1U rack
■SIZE: 482(W)x44.2(H)x236.14(D)
■Weight: 3.6kg

■Operating environment
Operating temperature:
0°~40°C (32°~104°F)
■Storage temperature:
-20°~60°C (-4°~140°F)
■Relative humidity:
0% to 90% (no condensation)

【guarantee】
■3 year limited manufacturer warranty
*12 months warranty on front panel
