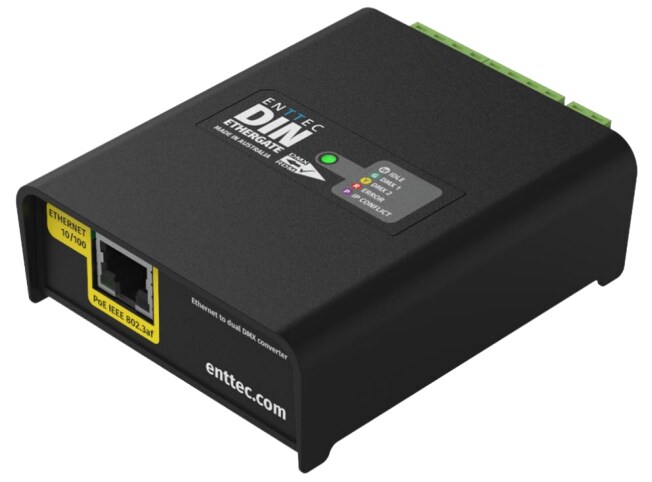

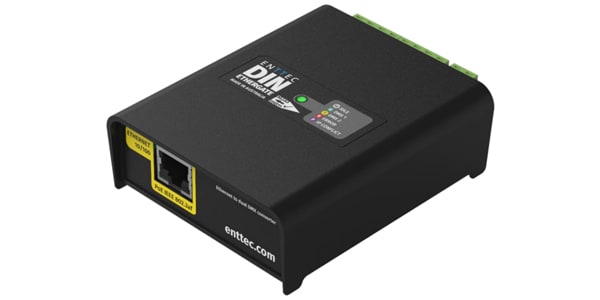

ENTTEC / DIN-Ethergate #71030

ENTTEC's DIN ETHERGATE is a DMX node for rugged and reliable installations designed to raise the bar in architectural and commercial entertainment.

■Two bidirectional DMX/E1.20 RDM ports, optionally supporting termination and RDM
■Supports Art-Net 4, sACN, ESP
■DMX -> Supports Art-Net broadcast or unicast
■Supports merging up to 2 DMX sources (HTP/LTP)
■Configurable DMX output refresh rate
■Surface or TS35 DIN rail mount
■Supports IEEE 802.3af PoE (Power over Ethernet) or DC 7-24v input
■Device settings and updates are possible using the built-in web interface.
■Supports DHCP or static IP address
■10/100 Mbp network speed
■“Current DMX Buffer” displays the DMX value for each port
