Austrian Audio / OC7

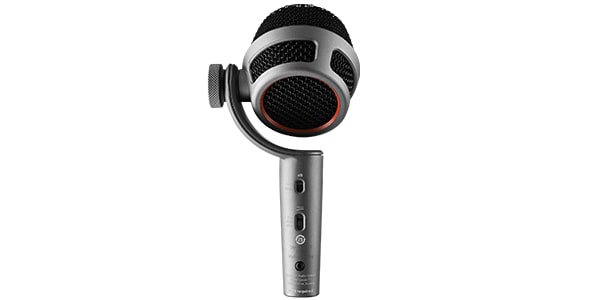

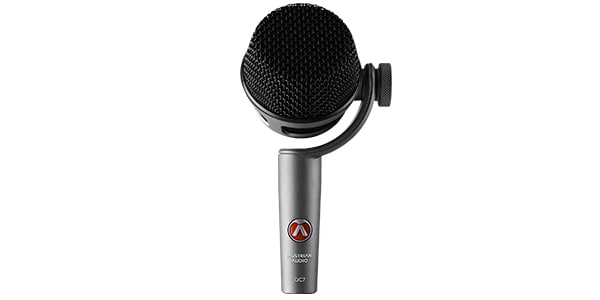

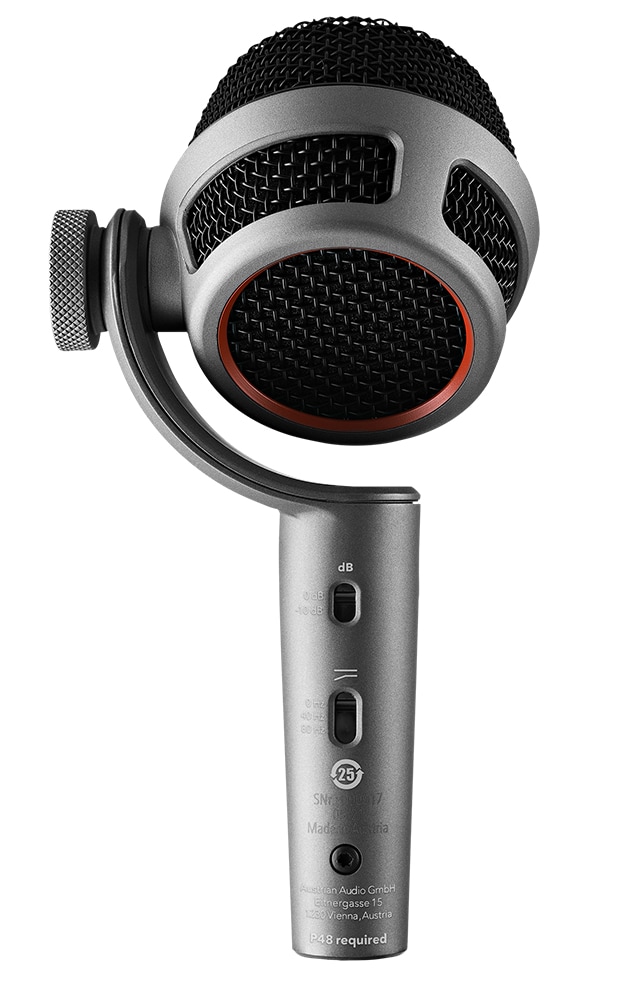

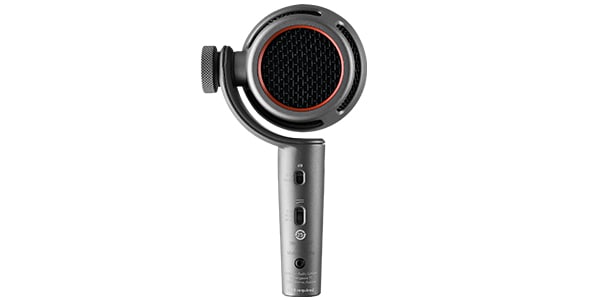

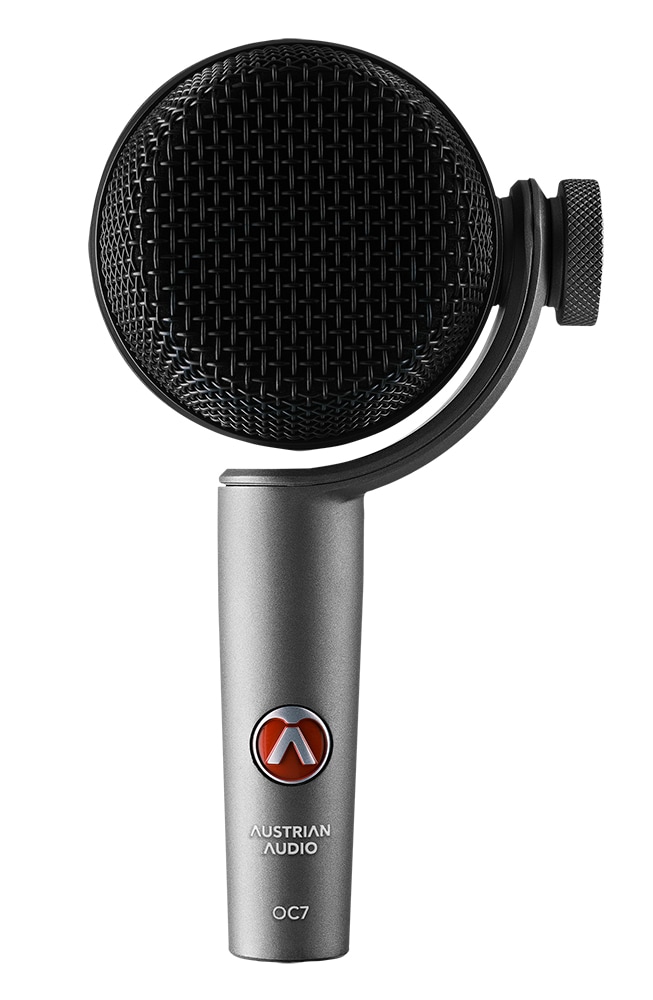

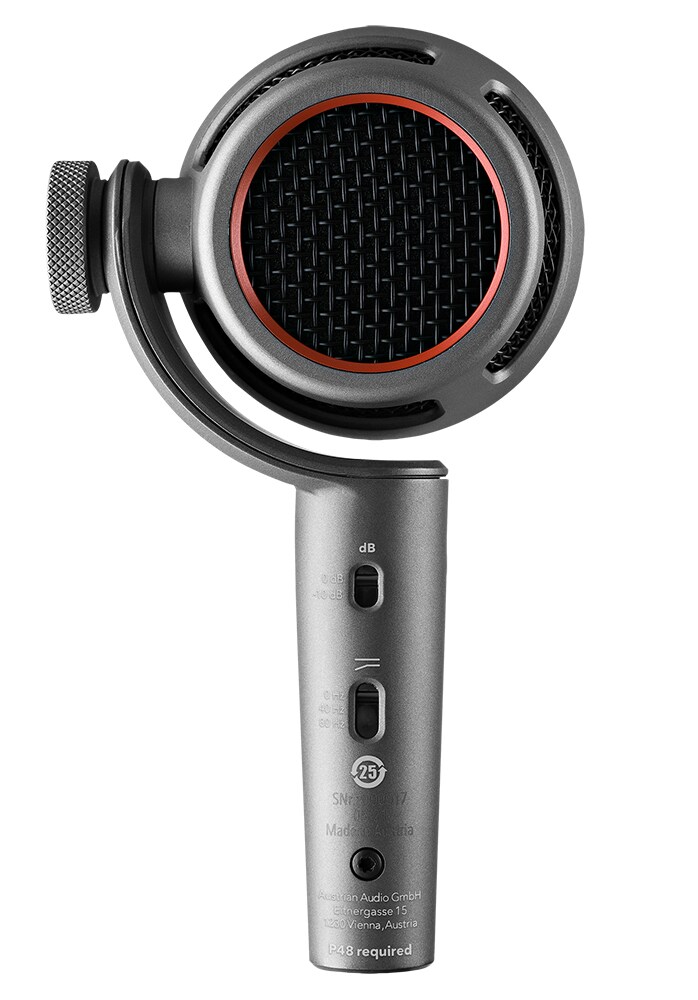

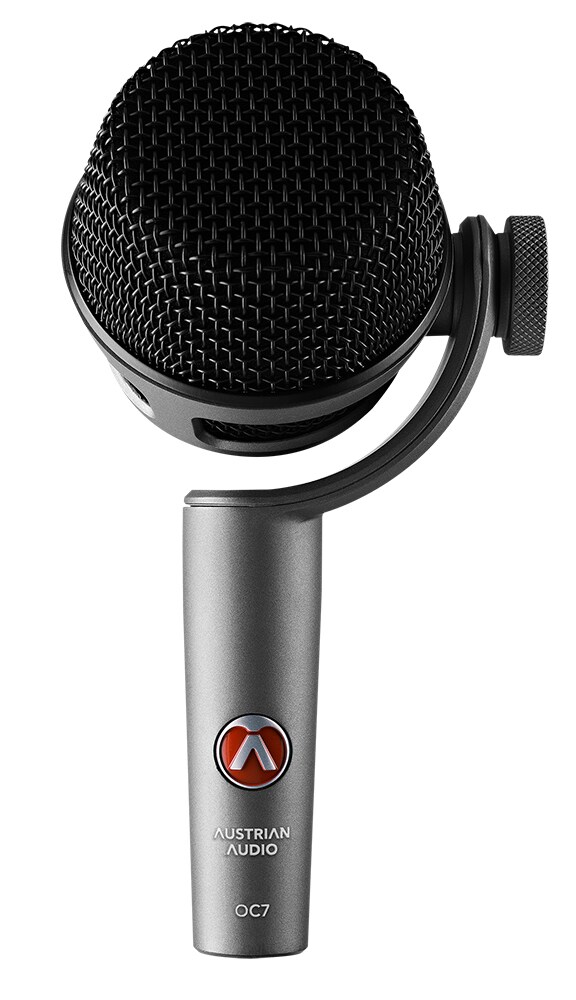

Austrian Audio's OC7 is a true condenser microphone for instruments that has studio specs and is also stage ready.

■Main features
・Handmade OCC7 capsules
Inspired by the legendary CK1 capsule. Handmade in Austria, preserving tradition while meeting modern needs.

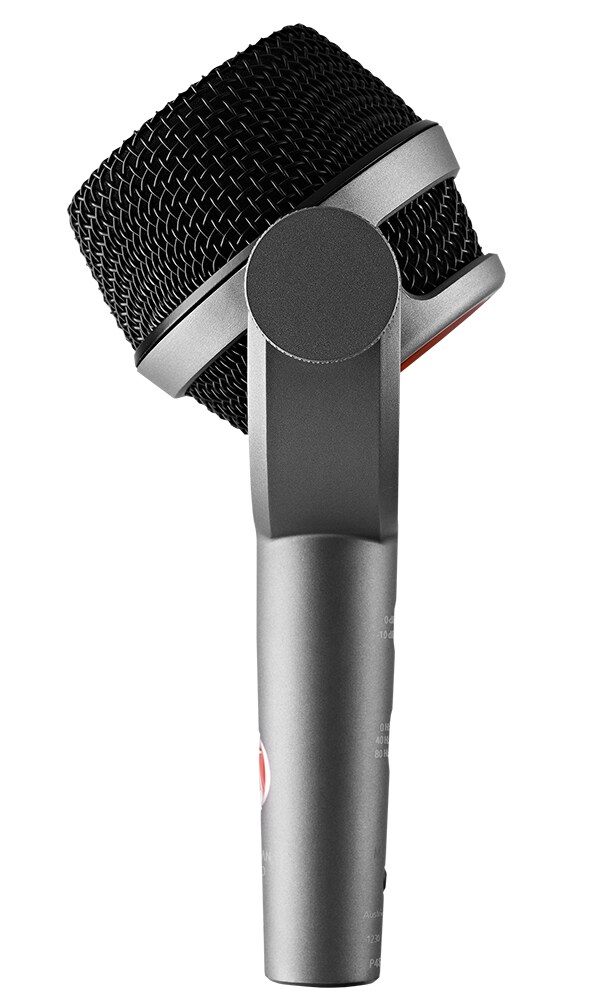

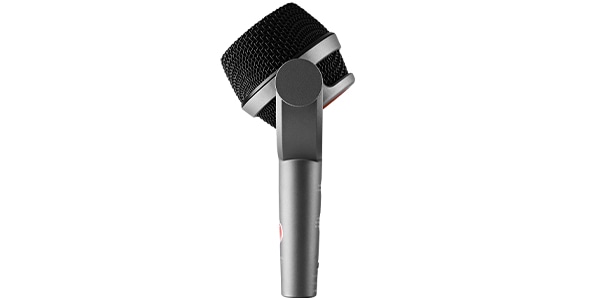

・Innovative rotation mechanism
The microphone can be rotated up to 220 degrees for a variety of settings.
・Open acoustic
By minimizing the contact points between the capsule and the housing, sound diffraction and unnecessary reflection/resonance are suppressed, providing a natural sound.
・2-stage high-pass filter and analog pad
Filter: 40Hz (2nd order)/80Hz (2nd order), Pad: -10dB
・Directivity
High precision unidirectional/cardioid
・Robust die-cast body
Compatible with hard staging

■Specifications
Directivity: Unidirectional
Frequency range: 20Hz~20kHz
Sensitivity: 10mV/Pa
Noise level: 19dB SPL (A-weighted)
High pass filter: 40Hz (2nd order)/80Hz (2nd order)
Max SPL: 154dB SPL (with pad: >160dB SPL)
Pad: -10 dB
Impedance: 275Ω (symmetric)
Impedance load: > 1kΩ
Voltage: 48V (<2mA)
Output terminal: XLR 3 pin
Size: 147 x 82 x 54 mm
Mass: 275g
