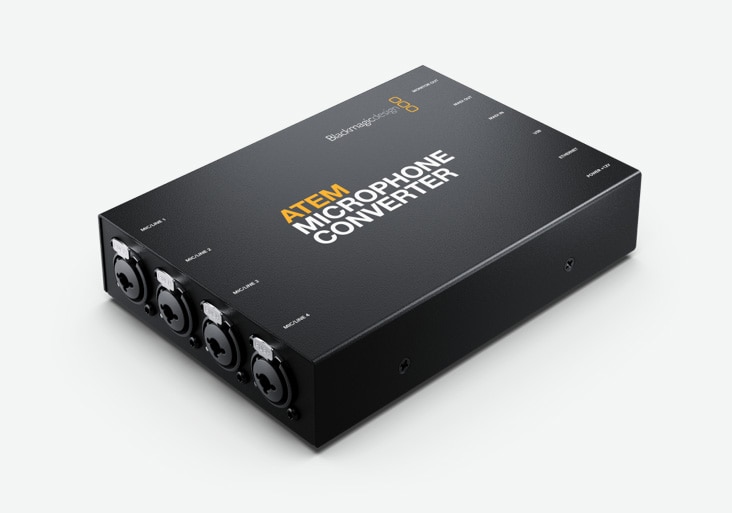

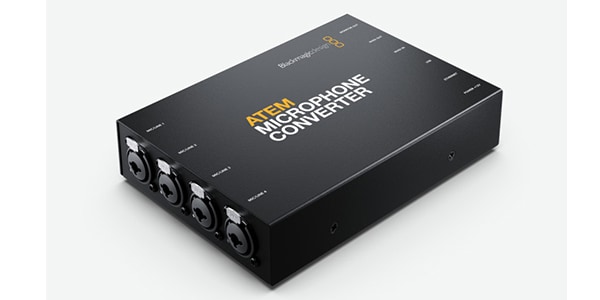

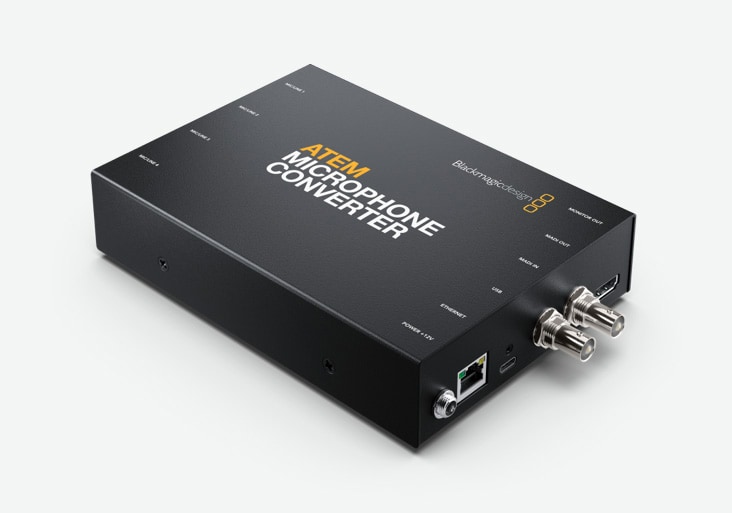

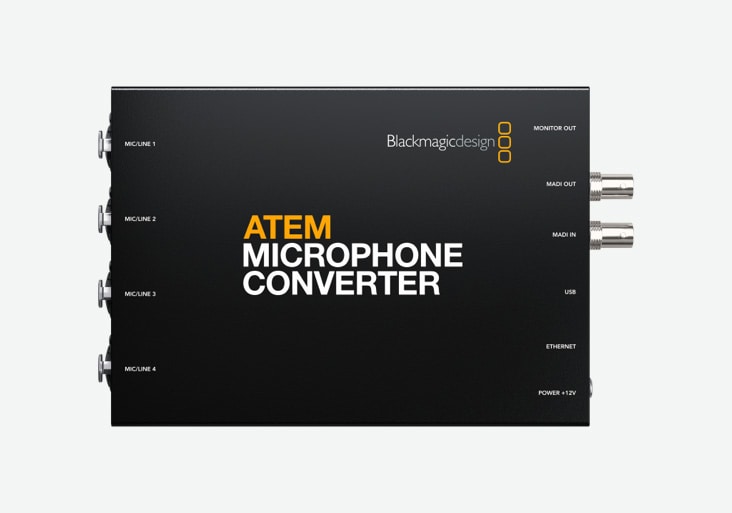

Blackmagic Design / ATEM Microphone Converter

A converter that extends the MADI input of an ATEM Television Studio switcher to add multiple microphones or external audio mixer sources.

■MADI, microphone, line converter

【Connection】.
■Analog audio inputs:
3-pin XLR and TRS 1/4" jacks (+24dB switchable between Line and Mic levels, +48V phantom power supported) x4
■MADI Inputs:
BNC (64ch MADI digital audio compatible) x1
■MADI output:
BNC (64ch MADI digital audio supported) x1
HDMI video output:
Monitor output x1
■Computer interface:
USB-C (with locking screw) x1
■ Ethernet:
Supports 10/100/1000 BASE-T

HDMI output format
■HD video formats:
1080p24, 1080p25, 1080p30, 1080p48, 1080p50, 1080p60
■HDMI Monitoring:
Displays ATEM Microphone Converter name and 4, 8, 12, and 16 audio channels and waveforms for the last 60 seconds. Also supports the display of individual channel names, VU meters, Mic or Line level settings, and phantom power status

【Audio】.
■Number of ADCs for each input: 8
■Digital preamplifier: 32-bit
■Dynamic range: 131dB(A)
■Noise floor: -129dBV
■Total harmonic distortion at full scale: 0.002
Output sample depth: 24-bit
Output sample rate：48KHz
MADI standard: AES10-2020

Software]
■Software control:
Mac and Windows software upgrade via USB/Ethernet
■Built-in software upgrade:
Via downloadable utility applications

Operating System
Mac 12.0 Monterey
Mac 13.0 Ventura or later version
Windows 10 64-bit
Windows 11

Setting Controls】 【Setting Controls
■Software configuration control:
USB and Ethernet (free software utility)
■Hardware switches:
Mini-switch (Mic or Line level selection, +48V phantom power on/off)

Power requirements
■Power supply:
12V external power supply (locking connector) x1
■Power consumption: 12W max.
Operating voltage range: 12V to 17.5V DC

Operating environment
Operating temperature: 0° to 40°C (32° to 104°F)
■Storage temperature:
-20° to 60°C (-4° to 140°F)
Relative humidity: 0% to 90% (no condensation)

Included in the box
ATEM Microphone Converter
External 12V DC power supply (locking connector, international socket adapter)
Welcome Wallet (with QR code for software download)

Warranty
3-year limited manufacturer's warranty

【Size】
■SIZE：125(W)x40.65(H)x200(D)mm 850g
