Blackmagic Design / CINSTUDMFT/G26PDK

Equipped with a large 6K Super 35 sensor and EF lens mount, this is a studio camera that allows you to obtain cinematic images in live productions.

■Studio camera, EF lens mount

[Camera functions]
■Effective sensor size:
23.10mmx12.99mm (Super 35)
■Lens mount:
Active EF mount
■Lens control:
Iris, focus, zoom (when using compatible lenses)
■Dynamic range: 13 stops
■Dual native ISO:
0dB and 18dB gain
■Sensitivity at 0dB gain:
f11(2160p59.94)
f12(2160p50)
@2,000lux (reflectance 89.9%)
S/N ratio:
64.62dB (2160p)
Ultra HD scaled from 5.3K
■Recording resolution:
Up to 6144x3456(6K)50fps
Up to 6144x2560(6K 2.4:1)60fps
Up to 5376x3024(5.3K 16:9)60fps
3840x2160 (Ultra HD) up to 60fps
■Video output format:
2160p, 1080p, 1080i
■Frame rate:
Supports project frame rates of 23.98, 24, 25, 29.97, 30, 50, 59.94, 60fps.
■Off-speed frame rate is 5-50fps at 6K, 5-60fps at other recording resolutions
■Built-in ND filter:
4-position ND filter (clear, 2-stop, 4-stop, 6-stop IR ND filter)
■Focus:
Autofocus possible with compatible lenses
■Screen size:
7 inch 1920x1200
■Screen type:
capacitive lcd touch screen
■Screen brightness: 2000 nits
■Control:
Touchscreen camera settings and menus
Equipped with a rotary setting dial, program button, three buttons (F1, F2, F3) that can be assigned functions, and brightness, contrast, and peaking adjustment dials.

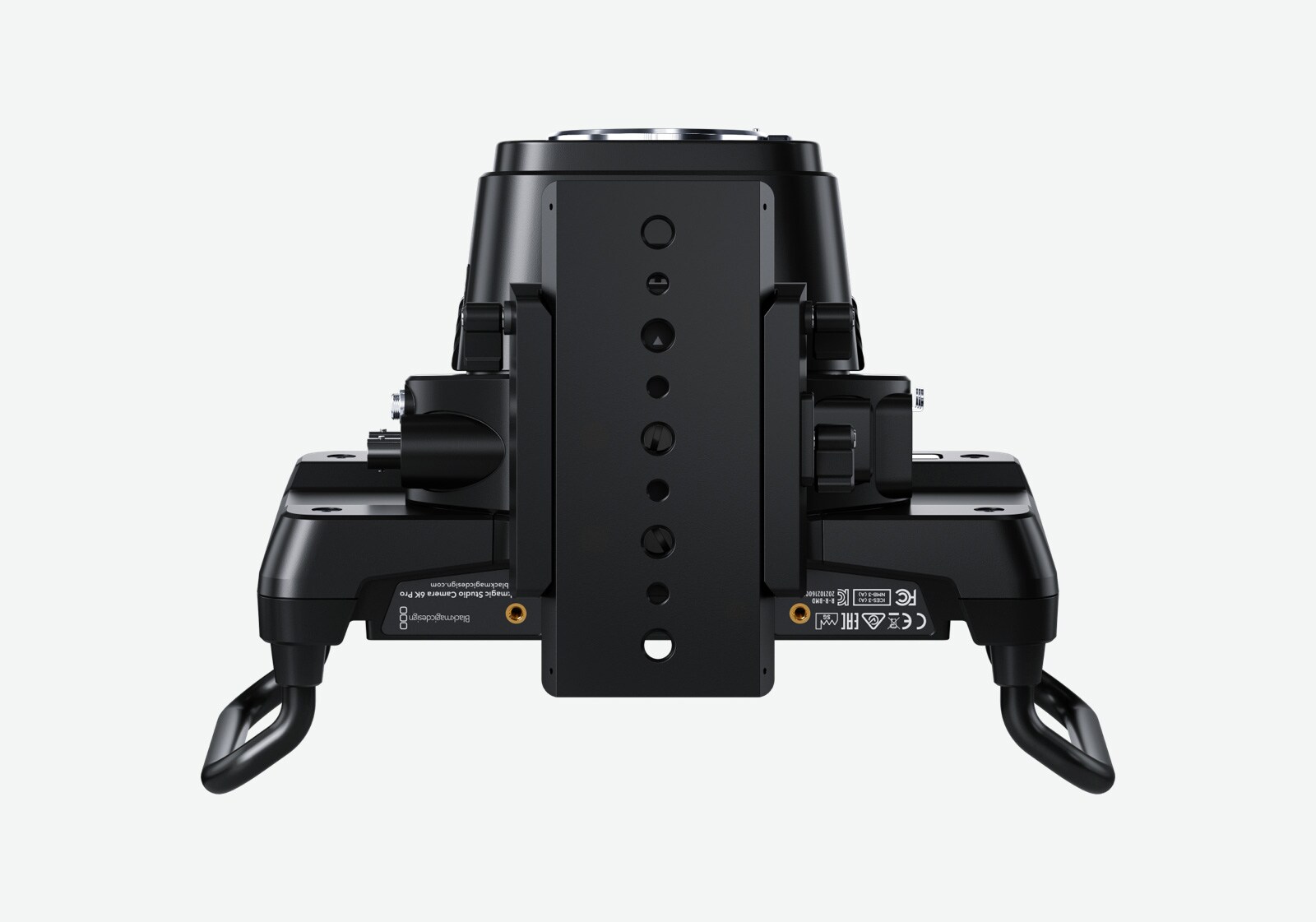

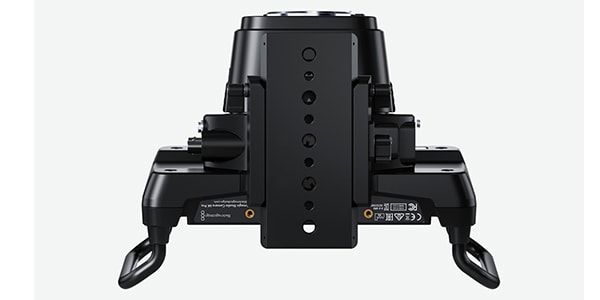

■Mount options:
1/4 inch tripod mount x2
3/8 inch tripod mount x1

【connection】
■SDI video input: 1
■SDI video output: 1
■SDI rate:
1.5G, 3G, 6G, 12G
■HDMI2.0 video output: 1
■Analog audio input:
XLR analog x2 (Mic/Line level switchable)
Supports phantom power
3.5mm stereo input x1, can also be used for timecode input
■Analog audio output:
5-pin XLR x1 for talkback headset
3.5mm TRRS mini jack for headphones with microphone x1
■SDI audio output:
2ch program audio (embedded in 1.5G/3G/6G/12G-SDI)
2ch talkback channels (15 and 16)
■Reference input:
Tri-level sync or black burst when used with optional Blackmagic Studio Converter
■Remote control:
Remote camera control via SDI, HDMI and Ethernet
■Ethernet: 10Gb/s
■Computer interface:
2x USB Type-C 3.1 Gen 1 expansion ports (up to 5Gb/s) for external media recording, Focus Demand and Zoom Demand connectivity
Software updates use USB-C port A
【audio】
■Microphone: Built-in stereo microphone
■Built-in speaker: Mono speaker x1

[Streaming]
■Direct delivery
Blackmagic Studio Camera 6K Pro can stream live directly using Real Time Messaging Protocol (RTMP) over Ethernet or over shared cellular internet via USB-C

【format】
■SD video format: Not supported
■HD video format:
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080i50, 1080i59.94, 1080i60
■Ultra HD video format:
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
■SDI standard:
SMPTE 292M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-1, SMPTE 2082-10
■SDI audio sampling:
TV standard sample rate (48kHz/24-bit)

【media】
■Media:
2 x USB-C 3.1 Gen 1 expansion ports, used for recording Blackmagic RAW to external media
■Media format
Can be formatted to exFAT (Windows/Mac) or HFS+ (Mac)

[Supported codec]
■ Codec:
Blackmagic RAW constant bitrate 3:1
Blackmagic RAW constant bitrate 5:1
Blackmagic RAW constant bitrate 8:1
Blackmagic RAW constant bitrate 12:1
Blackmagic RAW fixed quality Q0
Blackmagic RAW fixed quality Q1
Blackmagic RAW fixed quality Q3
Blackmagic RAW fixed quality Q5

[Storage function]
■Recording format:
Blackmagic RAW 3:1, 5:1, 8:1, 12:1, Q0, Q1, Q3, Q5 at selected frame rate 6K (6144x3456), 6K 2.4:1 (6144x2560), 5.3K 16:9 (5376x3024), Ultra HD (3840x2160)
■Storage rate:
Storage rate based on 30fps
6144 x 3456 (6K)
Blackmagic RAW 3:1-323MB/s
Blackmagic RAW 5:1-194MB/s
Blackmagic RAW 8:1-121MB/s
Blackmagic RAW 12:1-81MB/s
Blackmagic RAW Q0-242?483MB/s
Blackmagic RAW Q1-162?387MB/s
Blackmagic RAW Q3-108?277MB/s
Blackmagic RAW Q5-65?162MB/s

6144x2560(6K 2.4:1)
Blackmagic RAW 3:1-240MB/s
Blackmagic RAW 5:1-144MB/s
Blackmagic RAW 8:1-90MB/s
Blackmagic RAW 12:1-60MB/s
Blackmagic RAW Q0-180?359MB/s
Blackmagic RAW Q1-120?287MB/s
Blackmagic RAW Q3-80?205MB/s
Blackmagic RAW Q5-49?120MB/s

5376 x 3024 (5.3K 16:9)
Blackmagic RAW 3:1-248MB/s
Blackmagic RAW 5:1-149MB/s
Blackmagic RAW 8:1-94MB/s
Blackmagic RAW 12:1-63 B/s
Blackmagic RAW Q0-186?371MB/s
Blackmagic RAW Q1-125?297MB/s
Blackmagic RAW Q3-84?212MB/s
Blackmagic RAW Q5-50?125MB/s

3840x2160(Ultra HD)

Blackmagic RAW 3:1-127MB/s
Blackmagic RAW 5:1-77MB/s
Blackmagic RAW 8:1-48MB/s
Blackmagic RAW 12:1-32MB/s
Blackmagic RAW Q0-96?190MB/s
Blackmagic RAW Q1-64?153MB/s
Blackmagic RAW Q3-43?109MB/s
Blackmagic RAW Q5-26?64MB/s
*Fixed quality storage rate is for reference only.
*Actual storage rate may vary depending on the subject of the image.

【control】
■External control:
Control your camera and lens from the tripod handle with Blackmagic Zoom Demand and Blackmagic Focus Demand.
External control with Blackmagic Control Protocol via SDI, RTMP, or HDMI when used with compatible ATEM switchers and ATEM Software Control or ATEM Camera Control Panel. Controls for some camera settings, focus, iris, and zoom with compatible lenses. Supports color corrector, tally, and start/stop recording to external media via USB expansion port

[Color corrector]
DaVinci YRGB

[Talkback & Tally]

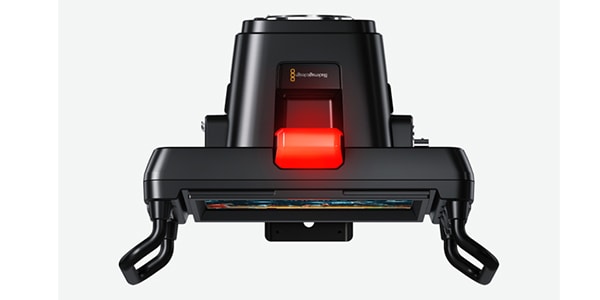

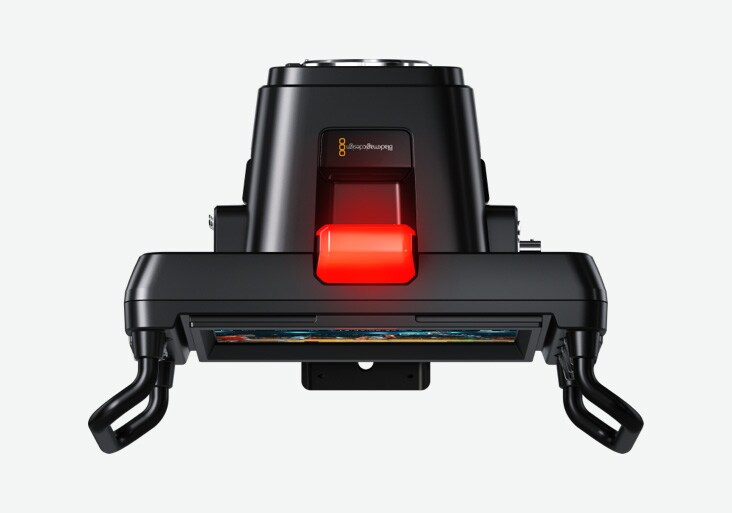

■Live tally indicator:
Front tally x1 for performers
Rear tally x1 for operator
■Talkback:
SDI channels 15 and 16

【software】
■Bundled software:
Blackmagic Camera Setup (Mac/Windows compatible)

【operating system】
Mac 12.0 Monterey
Mac 13.0 Ventura or later
Windows 10 64-bit Windows 11

[Power conditions]
■Power supply: External 12V DC 60W power supply x1
■Power input:
12V DC locking 5.5mm barrel connector x1,
12V DC 4-pin XLR input x1
*For external power supply and battery
RJ45 Ethernet connector x1
*For power supply from PoE type 4 power source
■Power consumption
32~52W, using DC input
38-59W, uses PoE type 4 input

[Included items]
Blackmagic Studio Camera 6K Pro
Blackmagic Studio Camera Sunshade
Tripod mount, compatible with 15mm lightweight rail
tripod mount plate
dust turret cap
12V DC external power supply and international socket adapter with locking connector
Welcome wallet (with QR code for software download)
DaVinci Resolve download card
Blackmagic Design sticker

【size】
■SIZE: 273.6(W)x167.3(H)x199(D)mm
■Weight 1.94kg

*The warranty period for this product is one year of the manufacturer's warranty.
