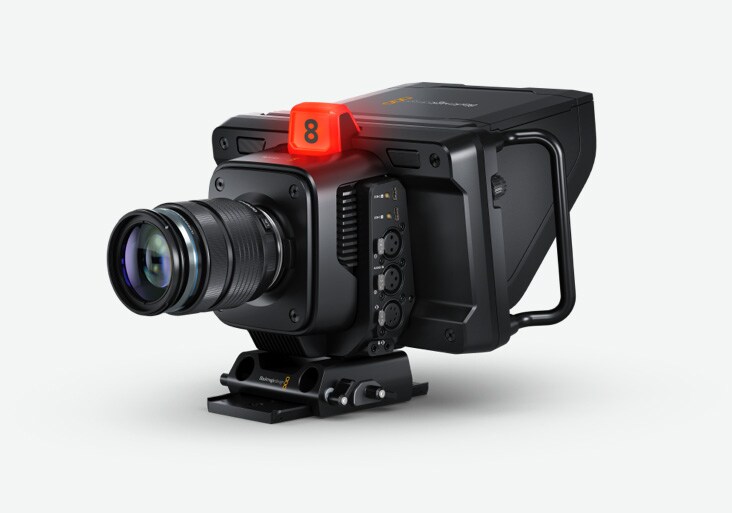

Blackmagic Design / CINSTUDMFT/G24PDFG2

A studio camera designed for use with SDI switchers. Equipped with professional 12G-SDI and 10G Ethernet connectivity.

■Studio camera, active MFT mount

[Camera functions]
■Effective sensor size:
17.78mmx10mm (Four Thirds)
■Lens mount:
Active MFT mount
■Lens control:
Iris, focus, zoom (when using compatible lenses)
■Dynamic range: 13 stops
■Dual native ISO:
0dB and 18dB gain
■Sensitivity at 0dB gain:
f11, 2160p59.94
f12, 2160p50
@2,000 lux (reflectance 89.9%)
■SN ratio: 63dB, 2160p
■Photography resolution:
3840x2160 (Ultra HD) up to 60fps
■Frame rate:
23.98, 24, 25, 29.97, 30, 50, 59.94, 60fps
Off-speed frame rates up to 60fps Ultra HD
■Focus:
Autofocus possible with compatible lenses
■Screen size:
7 inch 1920x1200
■Screen type:
capacitive lcd touch screen
■Screen brightness: 2000 nits
■Control:
Touchscreen camera settings and menus
Equipped with a rotary setting dial, program button, three buttons (F1, F2, F3) that can be assigned functions, and brightness, contrast, and peaking adjustment dials.

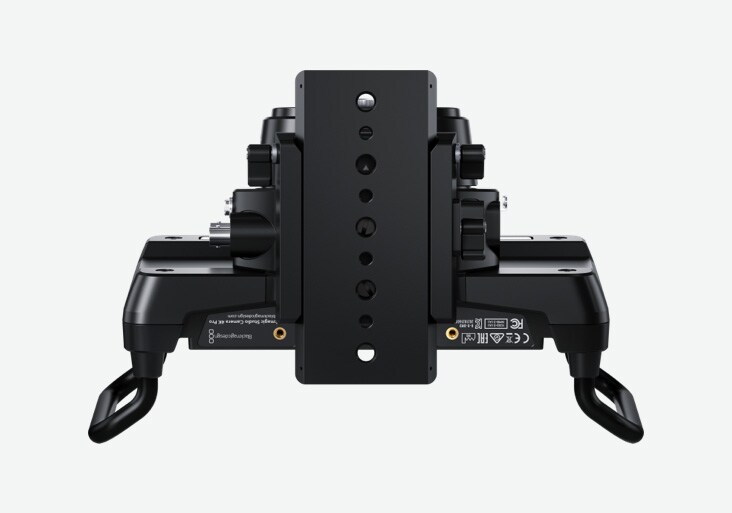

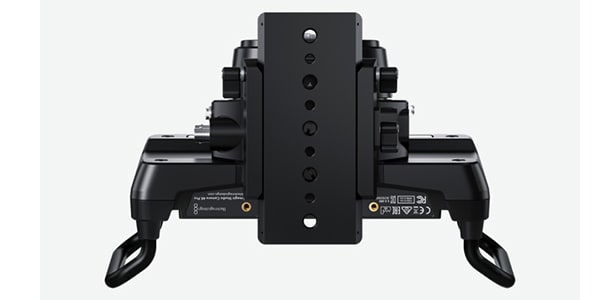

■Mount options:
1/4 inch tripod mount x2
3/8 inch tripod mount x1

【connection】
■SDI video input: 1
■SDI video output: 1
■SDI rate: 1.5G, 3G, 6G, 12G
■HDMI2.0 video output: 1
■Analog audio input:
XLR analog x2 (Mic/Line level switchable)
Supports phantom power.
3.5mm stereo input x1, can also be used for timecode input
■Analog audio output:
1 x 5-pin XLR for talkback headset
■3.5mm TRRS mini jack for headphones with microphone x1
■Reference input:
Tri-level sync or black burst when used with optional Blackmagic Studio Converter
■SDI audio output:
2ch program audio (embedded in 1.5G/3G/6G/12G-SDI)
2ch talkback channels (15 and 16)
■Remote control:
Remote camera control via SDI, HDMI and Ethernet
■Ethernet: 10Gb/s
■Computer interface:
2x USB Type-C 3.1 Gen1 expansion ports (up to 5Gb/s)
Recording to external media
For connecting Focus Demand and Zoom Demand
Software updates use USB-C port A

【audio】
■Microphone: Built-in stereo microphone
■Built-in speaker:
Mono speaker x1

【format】
■SD video format: Not supported
■HD video format:
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60,
1080i50, 1080i59.94, 1080i60
■Ultra HD video format:
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
■SDI standard:
SMPTE 292M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-1, SMPTE 2082-10
■SDI audio sampling:
TV standard sample rate (48kHz/24-bit)

【media】
■Media:
2 x USB-C 3.1 Gen 1 expansion ports, used for recording Blackmagic RAW to external media
■Media format:
Can be formatted to exFAT (Windows/Mac) or HFS+ (Mac)

[Supported codec]
■ Codec:
Blackmagic RAW constant bitrate 3:1
Blackmagic RAW constant bitrate 5:1
Blackmagic RAW constant bitrate 8:1
Blackmagic RAW constant bitrate 12:1
Blackmagic RAW fixed quality Q0
Blackmagic RAW fixed quality Q1
Blackmagic RAW fixed quality Q3
Blackmagic RAW fixed quality Q5

[Storage function]
■Storage type:
2 x USB-C 3.1 Gen 1 expansion ports for external media
■Recording format:
Blackmagic RAW 3:1, 5:1, 8:1, 12:1, Q0, Q1, Q3, Q5 in Ultra HD 3840x2160 at selected frame rate
■Storage rate:
Storage rate based on 30fps
3840 x 2160 (Ultra HD)
Blackmagic RAW 3:1-127MB/s
Blackmagic RAW 5:1-77MB/s
Blackmagic RAW 8:1-48MB/s
Blackmagic RAW 12:1-32MB/s
Blackmagic RAW Q0-96?190MB/s
Blackmagic RAW Q1-64?153MB/s
Blackmagic RAW Q3-43?109MB/s
Blackmagic RAW Q5-26?64MB/s
Fixed quality storage rates are for reference only.
Actual storage rate varies entirely depending on the subject of the image

【control】
■External control:
Control your camera and lens from your tripod handle with Blackmagic Zoom Demand and Blackmagic Focus Demand
External control with Blackmagic Control Protocol via SDI and HDMI when used with compatible ATEM switchers and ATEM Software Control or ATEM's Camera Control Panel series
Controls for some camera settings, focus, iris, and zoom with compatible lenses. Supports color corrector, tally, and start/stop recording to external media via USB expansion port

[Color corrector]
DaVinci YRGB

[Talkback & Tally]

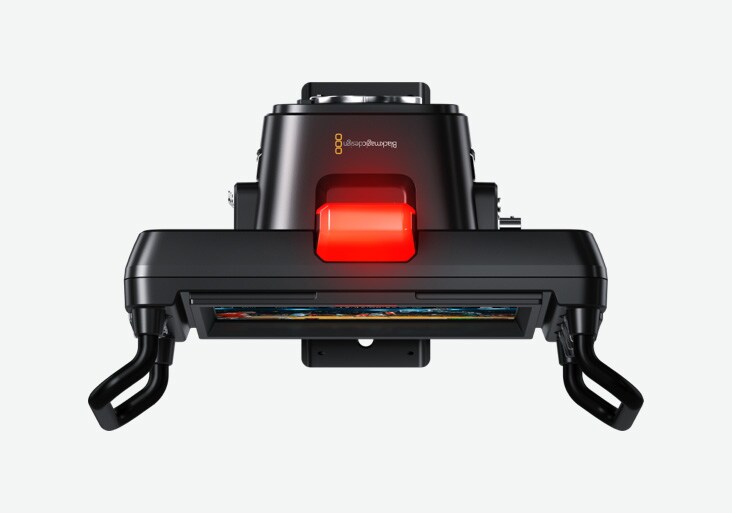

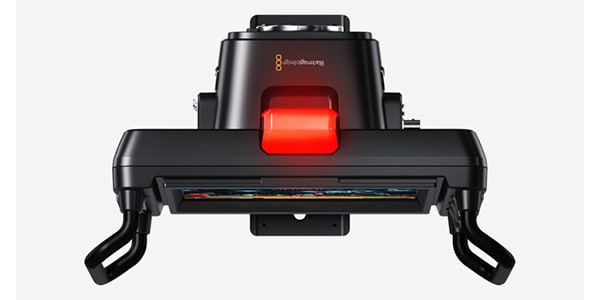

■Live tally indicator:
Front tally x1 for performers
Rear tally x1 for operator
■Talkback:
SDI channels 15 and 16

【software】
■Bundled software:
Blackmagic Camera Setup (Mac/Windows compatible)

【operating system】
Mac 12.0 Monterey,
Mac 13.0 Ventura or later
Windows 10(64-bit)

[Power conditions]
■Power supply:
External 12V DC 60W power supply x1
■Power input:
12V DC locking 5.5mm barrel connector x1,
1 x 12V DC 4-pin XLR input (for external power and battery),
1 x RJ45 Ethernet connector (for powering from PoE type 4 power source)
■Power consumption:
26~40W, using DC input
30-46W, using PoE input

【size】
■SIZE：273.6(W)x167.3(H)x169.7(D)mm
■Weight: 1,685kg

*The warranty period for this product is one year of the manufacturer's warranty.
