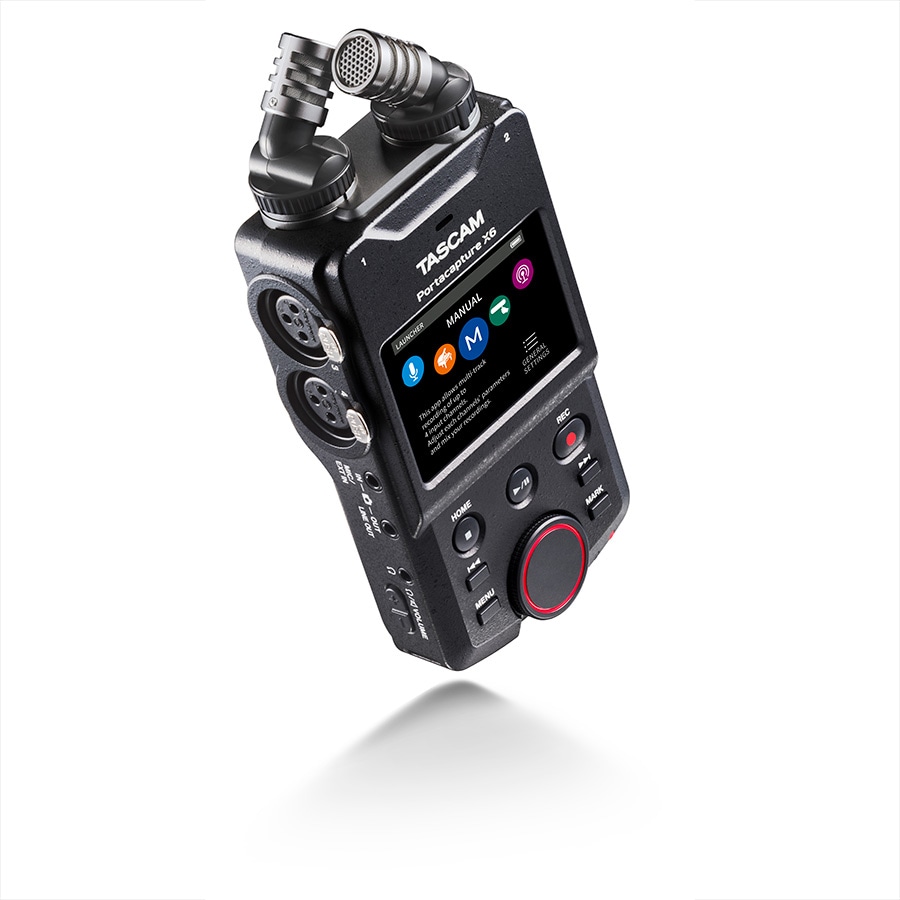

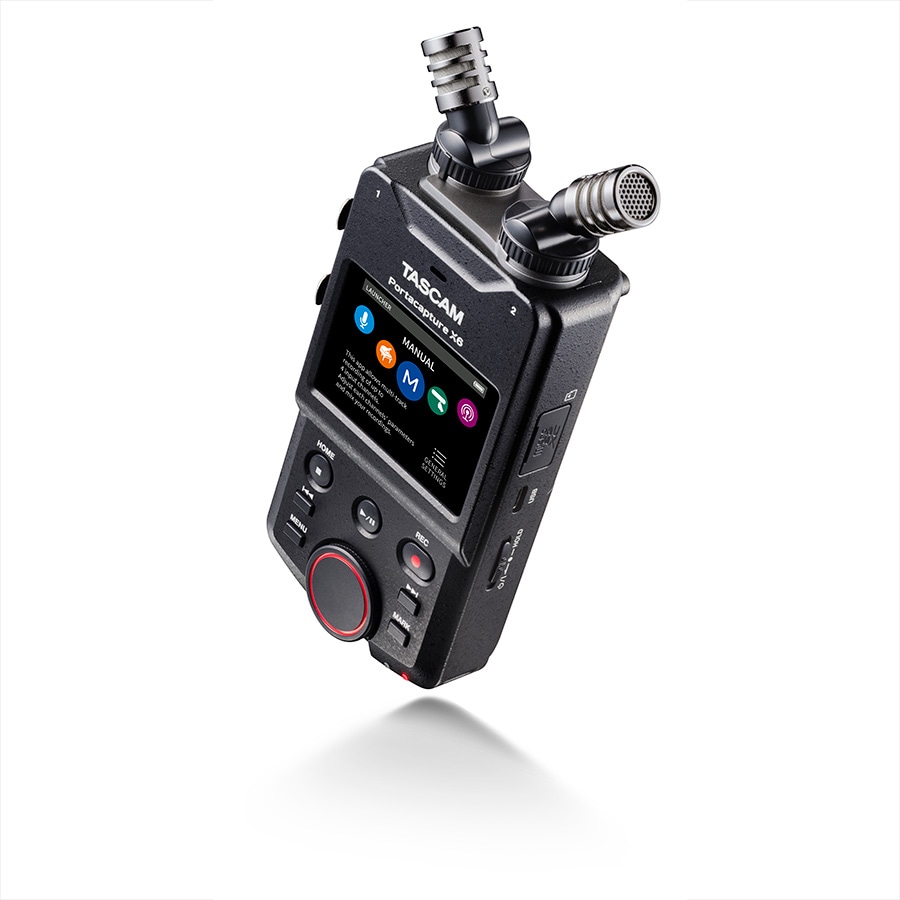

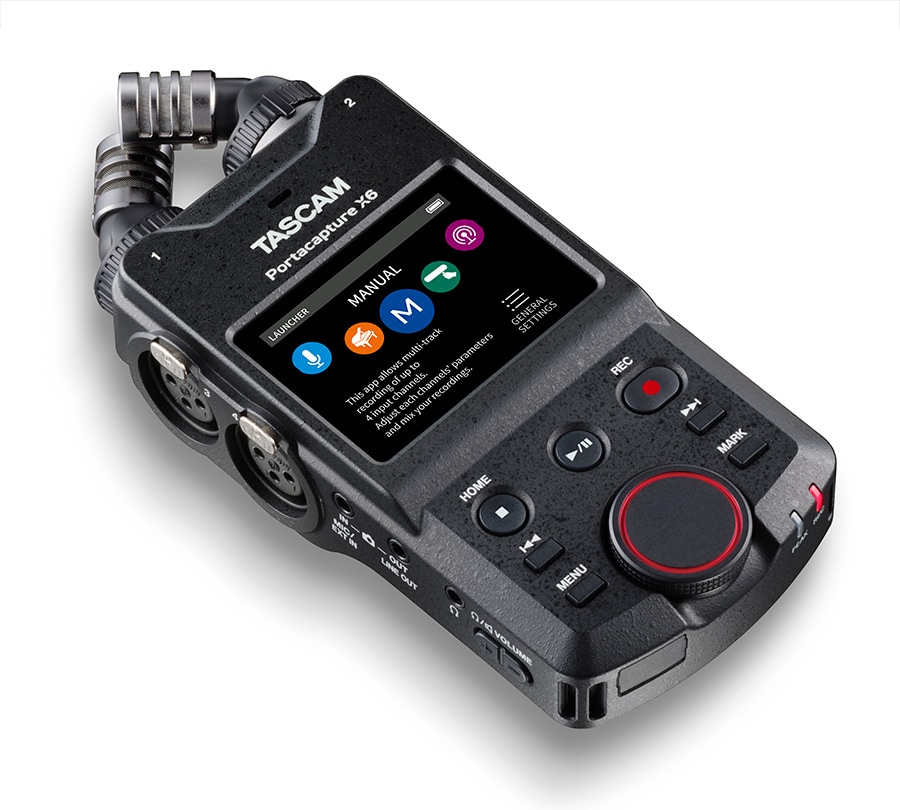

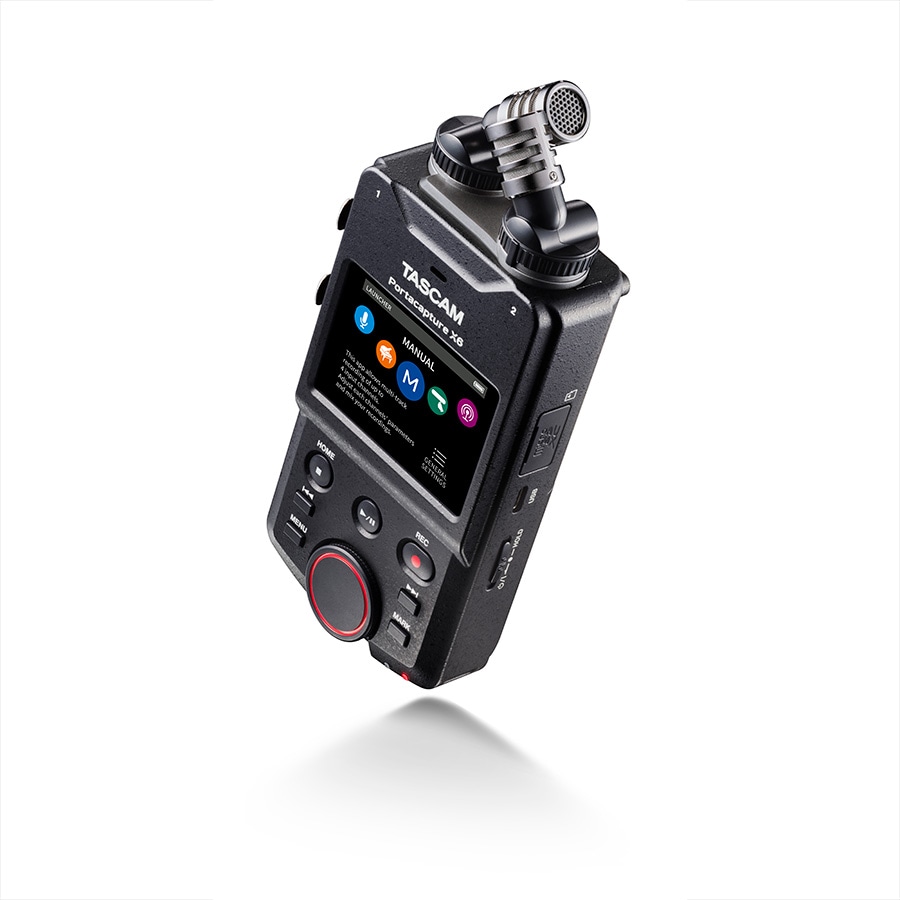

TASCAM / Portacapture X6 Portable Recorder

This is a 6-track handheld recorder with intuitive touch panel operation and 32-bit float recording support.

Handheld Recorder

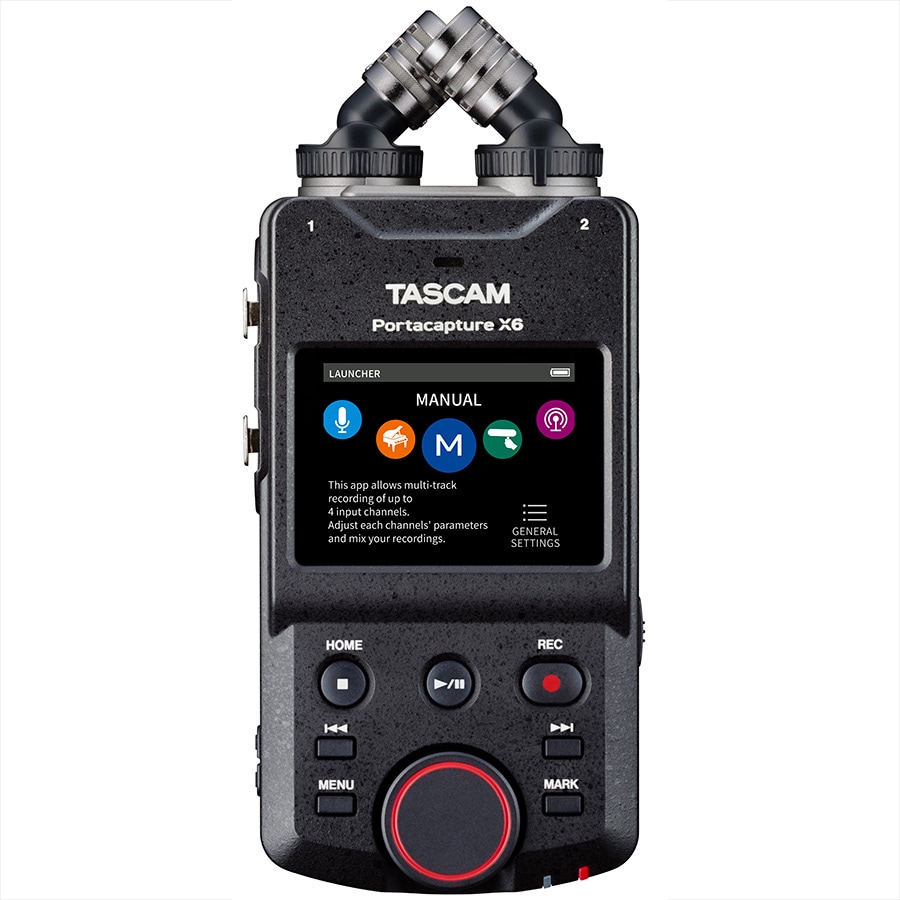

・2.4-inch color touch panel for intuitive operation
・Maximum 96kHz / 32bit float recording
・Maximum 6-track (4-track + 2-mix) multi-track recording
・App launcher Six recording apps in the launcher system: 'Manual,' 'Voice,' 'Podcast,' 'Music,' 'Field,' 'ASMR,' and a tuner and metronome app for musical instruments

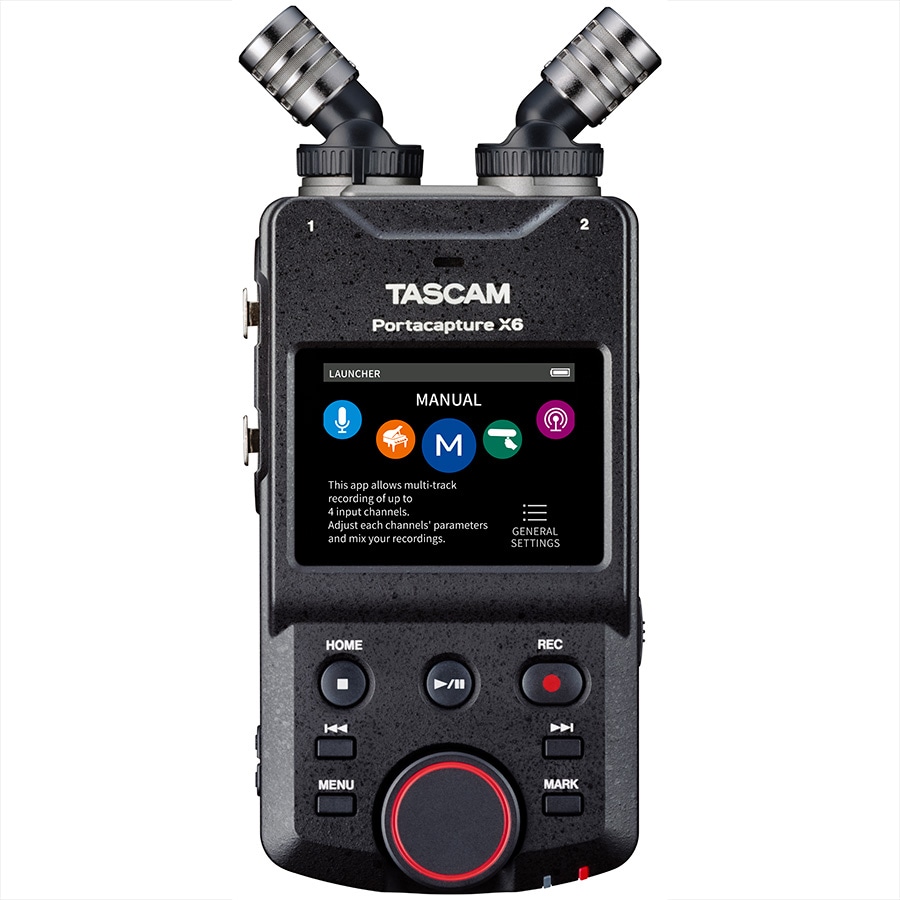

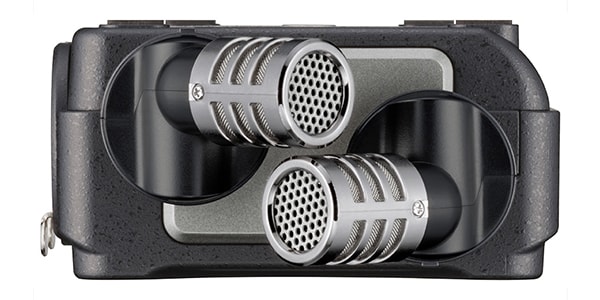

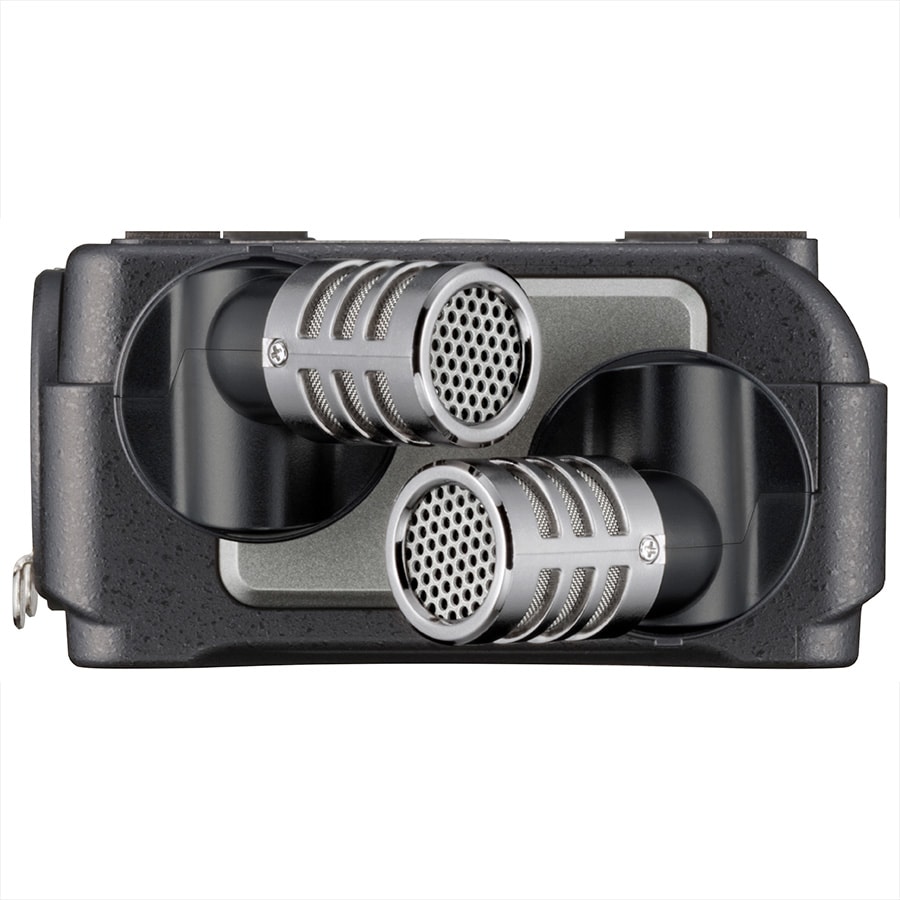

・Has a stereo condenser microphone that can switch between A-B and True X-Y methods

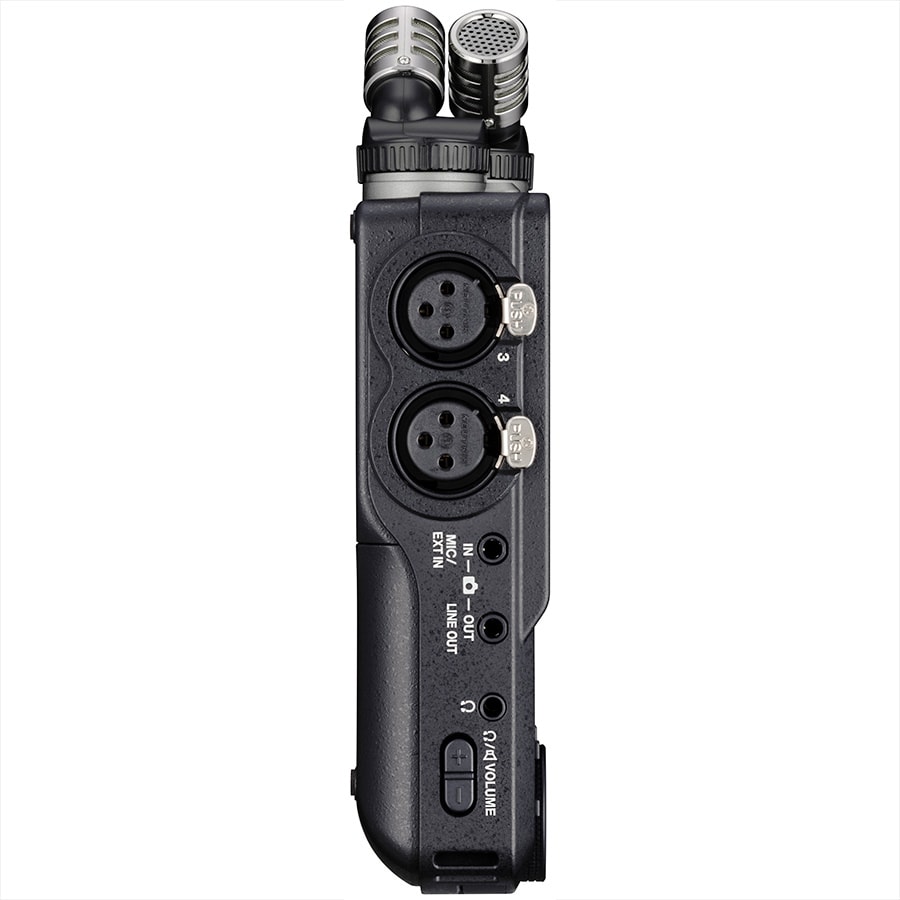

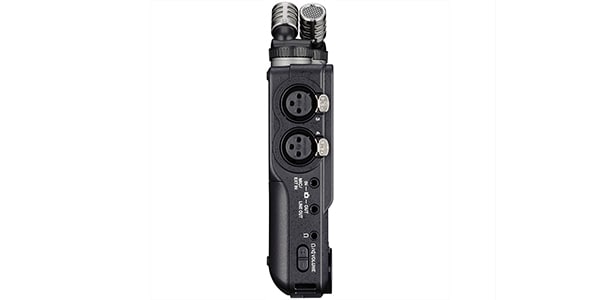

・Has two XLR microphone/line inputs and supports phantom power (+24V/+48V)
・32-bit float processing ensures high-resolution recording without distortion
・6-in / 2-out USB audio interface function
・When the optional AK-BT1 Bluetooth adapter is attached, remote control is possible from the mobile app "Portacapture Control
・When the optional AK-BT1 Bluetooth adapter is attached, wireless time code synchronization is possible

[Recorder Specifications]
■ Recording media:
microSD card (64MB - 2GB), microSDHC card (4GB - 32GB), microSDXC card (48GB - 512GB)
■ Recording and playback formats:
WAV (BWF) 44.1k/48k/96kHz, 16/24-bit, 32-bit float
　MP3 44.1k/48kHz, 128k/192k/256k/320kbps
■Number of channels
・Number of input channels
Four channels
・Number of recording tracks
Six tracks (4 tracks, stereo mix)
【Analog audio input ratings】
■Microphone input (balanced)
Input terminal 3-4 (when the input selection is set to "MIC")
Connector
Equivalent to XLR-3-31 (1: GND, 2: HOT, 3: COLD)
(Phantom power supply supported only when MIC input is selected)
Maximum input level
+2dBV
Minimum input level
-75dBV
Input impedance
　2.2 kΩ or more
Input terminal 3-4 (when the input selection is set to "LINE")
Connector
XLR-3-31 equivalent (1: GND, 2: HOT, 3: COLD)
Maximum input level
+24 dBu
Minimum input level
-53 dBu
Input impedance
Nine kΩ or more
Line input (unbalanced) MIC/EXT IN jack (plug-in power compatible)
Connector
3.5 mm (1/8") stereo mini jack
Maximum input level
0 dBV
Minimum input level
-67 dBV
Input impedance
Ten kΩ or more (when plug-in power is off)
　1.8k Ω or more (when plug-in power is ON)

【Analog audio output ratings】
■Line output (unbalanced) LINE OUT terminal
Connector
φ3.5mm (1/8") stereo mini jack
Nominal output level
-14dBV
Maximum output level
+6dBV
Output impedance
210Ω
■Headphone output
Connector
φ3.5mm (1/8") stereo mini jack
Maximum output
45mW + 45mW (THD + N 0.1% or less, 32 Ω load)
Built-in speaker
0.4W (mono)
Control input/output ratings
USB terminal
Connector
Type-C
Format
　USB2.0 HIGH SPEED
■USB audio
Sampling frequency: 44.1k / 48k / 96kHz
Quantization bit depth: 24 bit
Number of inputs: 6 channels (output from this unit)
Number of outputs: 2 channels (input to this unit)

■Bluetooth device connection terminal
For use with the Bluetooth adapter (AK-BT1) only
■Power supply
4 AA batteries (alkaline, nickel-metal hydride or lithium)
USB bus power from a computer
Dedicated AC adapter (TASCAM PS-P520U, sold separately)
■ Power consumption
7.5W (maximum)
■ External dimensions
75 x 174.3 x 37.2 mm (W x H x D, excluding protrusions)
■Weight
365g/265g (including batteries/excluding batteries)
■Operating temperature
0 to 40°C
■Included items
Portacapture X6 × 1
AA alkaline batteries × 4
Instruction manual (with warranty) × 1
TASCAM ID registration guide × 1
