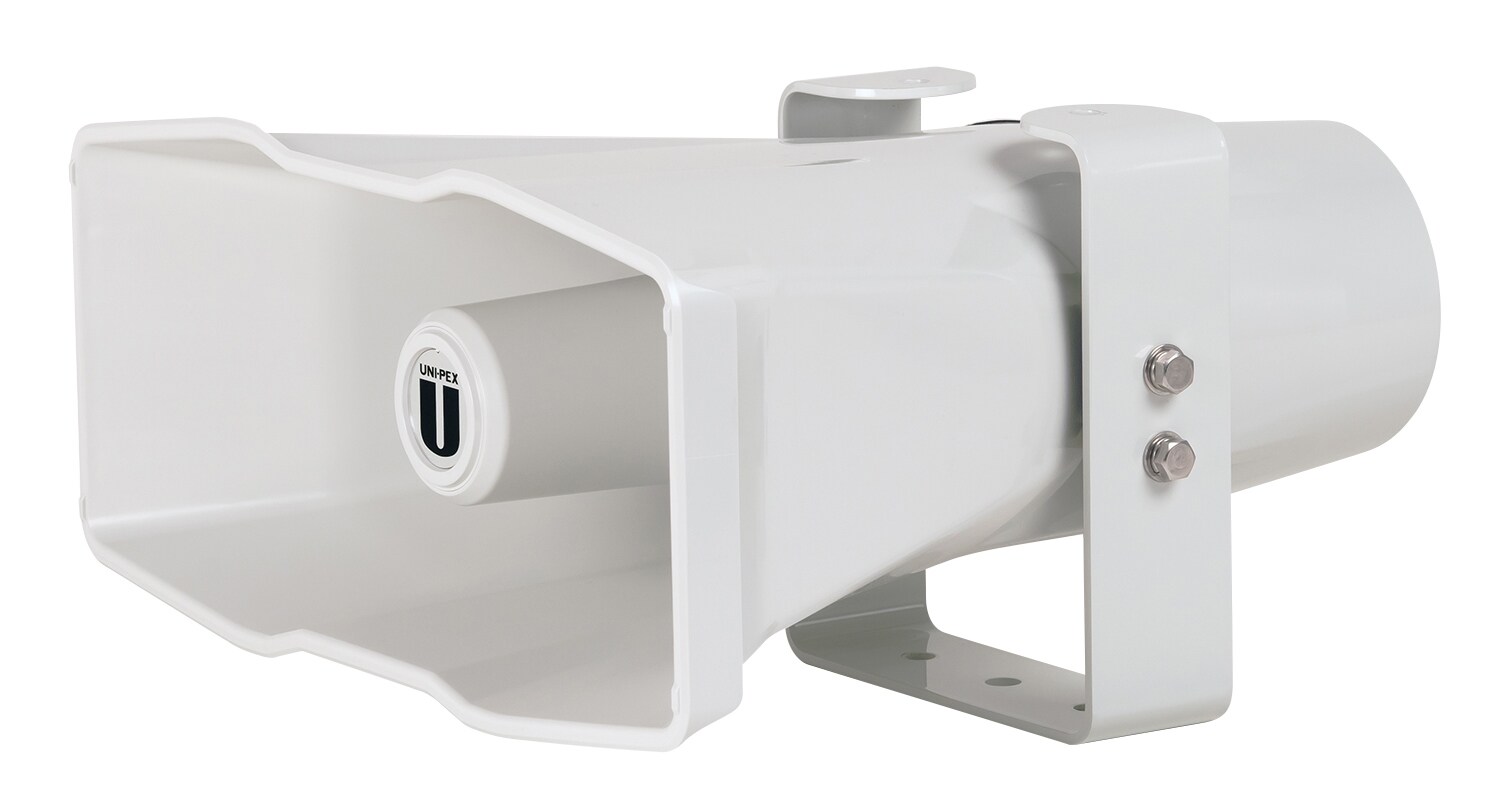

separate toss horn for square medium diameter in-vehicle public address system. It has a square horn that is shorter in height and reduces air resistance than a circular horn with the same area. It is a white color that is ideal for election vehicles and public relations vehicles. It has excellent corrosion resistance by using stainless steel bolts and screws on the outside. Connection to the amplifier is easy with the 2P metal outlet. It has a drip-proof structure that complies with ""IEC 60529 IPX5 (JIS C 0920)"".
■Joining part: JIS C 5504 class 1 (φ34.925mm) x 1
■Direction angle: Horizontal 60° Vertical 30° (2000Hz/-6dB) When connected to this unit + H-392
■Exterior: Horn mouth (ASA resin): Munsell 5GY8.5/0.5 approximate color silver gray
Cover (ASA resin): Munsell 5GY8.5/0.5 approximate color silver gray
Bracket (stainless steel): Munsell 5GY8.5/0.5 approximate color silver gray painted
Horn base (stainless steel)
■Mounting bracket: U-shaped bracket L-shaped
■Aperture dimensions: 390mm x 190mm
■Total length: 416mm (excluding protrusions)
■Compatible driver unit: UNIPEX driver unit excluding those with transformer and P-15F
■Mass: Approximately 3.1kg (excluding accessories)
■Input mechanism: 2P metal outlet
■Operating temperature range: -10°C to 55°C
■Applicable standard: According to JIS C 5504 horn speaker
■Dustproof/waterproof performance: IPX5
■Accessories: Instruction manual (with warranty) x 1, M10 x 20 stainless steel bolt x 2,
M10 flat washer x 2, M10 nut x 2
