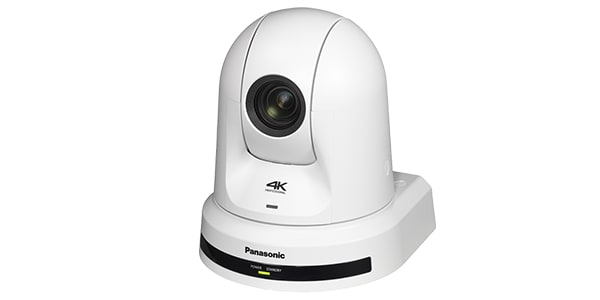

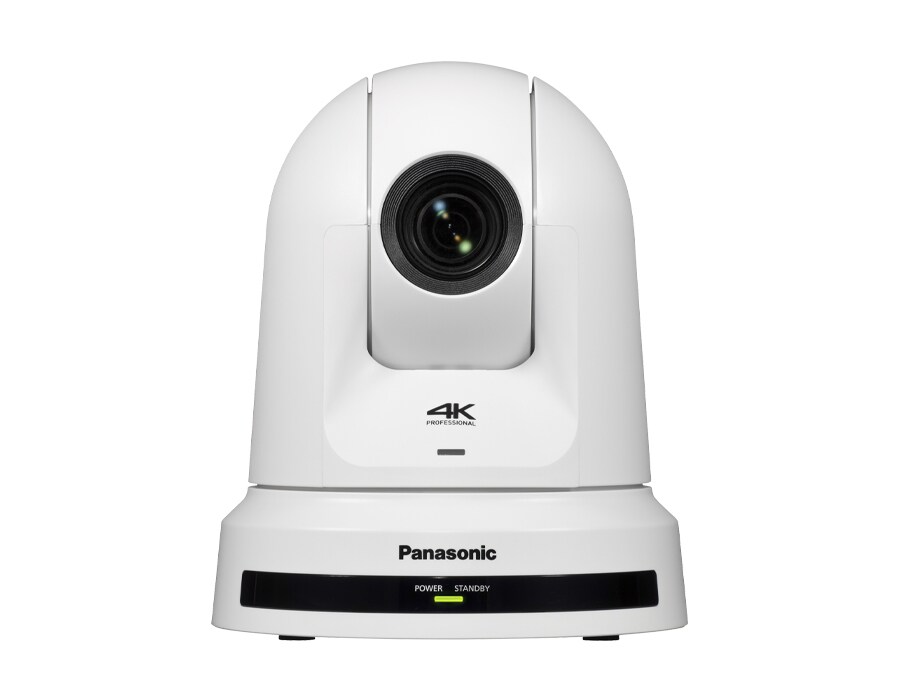

PANASONIC / AW-UE50W

This is a remote camera that enhances video communication in a variety of settings, from classes and seminars to briefing sessions.

■4K integrated camera
■Color: White
[Camera section]
■Image sensor: 1/2.5 type 4K MOSx1
■Zoom magnification
Optical zoom: 24x
i.Zoom: UHD 28x, FHD 36x
Digital extender zoom: 1.4x, 2x
■Lens:
Motorized 24x optical zoom F1.8 to F4.0
*f=4.12mm to 98.9 mm, 35mm equivalent: 25.0mm to 600.0mm
■Angle of view range:
Horizontal angle of view: 74.1° (Wide end) -3.3° (Tele end)
Vertical angle of view: 46.0° (Wide end) -1.9° (Tele end)
Diagonal angle of view: 81.8° (Wide end) -3.8° (Tele end)
■Minimum illuminance: 3 lx
*Conditions: F1.8, 59.94p, 50IRE, +42 dB, no accumulation

[General]
■Power supply: DC12V±10%
*0.8V to 13.2V, AC adapter included
■PoE+IEEE802.3 at compliant: DC42-57V
*Supports software authentication (LLDP communication)
■Current consumption:
Main unit: 1.8A (DC jack input), 0.6A (PoE+ power supply), AC adapter (included): 3.0A
■Operating ambient temperature:
0 °C to 40 °C
■Operating ambient humidity:
20%~90% (no condensation)
■Storage temperature: ?20 °C~50 °C
■SIZE: 160.0(W)x192.1(H)x166.0(D)mm
*Excluding protrusions, cable covers, and ceiling mounting brackets
■Mass
Approximately 1.8kg *Excluding decorative cover and mounting bracket for installation surface
Approximately 2.05kg *Excluding mounting bracket for installation surface
■Compatible controllers:
AW-RP150GJ, AW-RP60GJ, AW-RM50AG, AK-HRP1000[1][2]
AK-HRP1005[2], AK-HRP1015[2], AK-HRP250[2]
*[1]Manufacturer stock limited item
*[2] Planned for future support
*The difference between AW-UE50W/K and AW-UE40W/K is the presence or absence of an SDI terminal (3G-SDI). AW-UE40W/K does not have an SDI terminal section. If you want to output video from the camera using an SDI cable, please choose the AW-UE50W/K.
