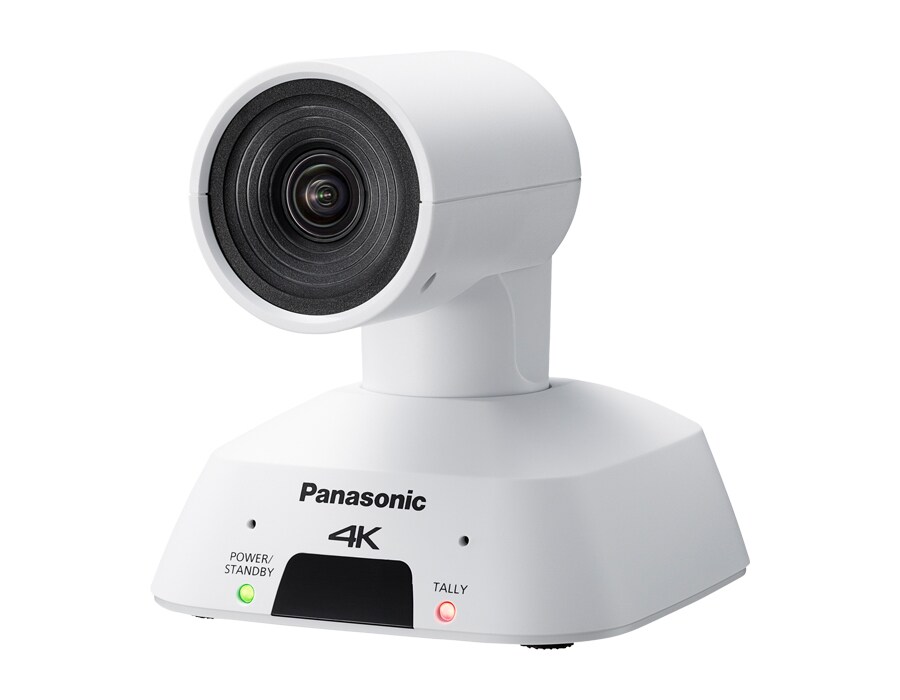

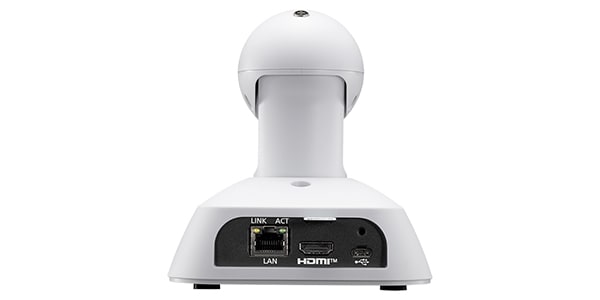

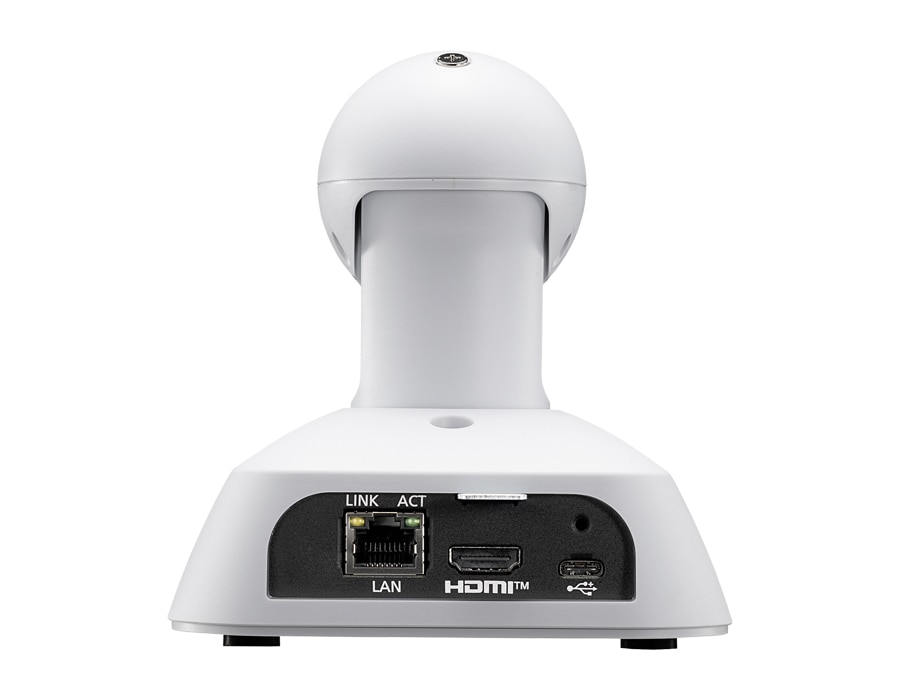

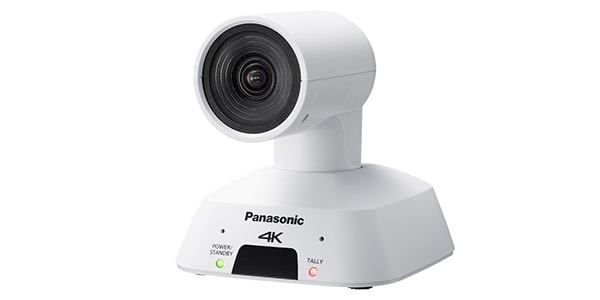

PANASONIC / AW-UE4WGN

This compact 4K camera is equipped with a 111° horizontal ultra-wide-angle lens and is capable of capturing a wide range of images.

■4K integrated camera
■Color: White
[Camera section]
■Image sensor: 1/2.5 type MOS
■Digital zoom: 4x
■Lens: F2.4 (f=2.21mm 35mm conversion: 13.4mm)
■Angle of view range:
When LDC[2] is OFF
Horizontal angle of view: 111
Vertical angle of view: 75°
Diagonal angle of view: 120°
When LDC[2]ON
Horizontal angle of view: 108°
Vertical angle of view: 75°
Diagonal angle of view: 116°
■Minimum illuminance
4 lx(Condition: 50 IRE, Gain=42 dB, Shutter Speed ​​1/60)

[General]
■Power supply: DC5V±5% (4.75V to 5.25V)
■PoE: IEEE802.3af compliant: DC37V-57V
■Current consumption
1.0A (USB connector input), 0.2 A) PoE power)
■Operating ambient temperature: 0 ℃ to 40 ℃
■Operating ambient humidity: 20% to 90% (no condensation)
■Storage temperature: -20 ℃ to 50 ℃
■Mass: Approx. 0.5kg (excluding mounting hardware)
■SIZE: 123(W)x131(H)x139(D)mm
*Excluding protrusions and mounting hardware)
Compatible controller
■AW-RP150GJ[1], AW-RP60GJ[1], AW-RM50AG
*[1]Unlike when other remote cameras are connected, the display corresponds to the menu structure of AW-UE4WGN/KGN.
*[2] Abbreviation for Lens Distortion Correction
