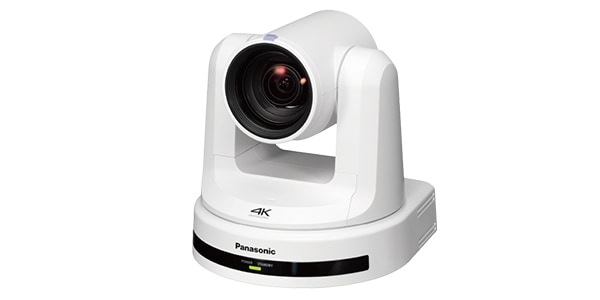

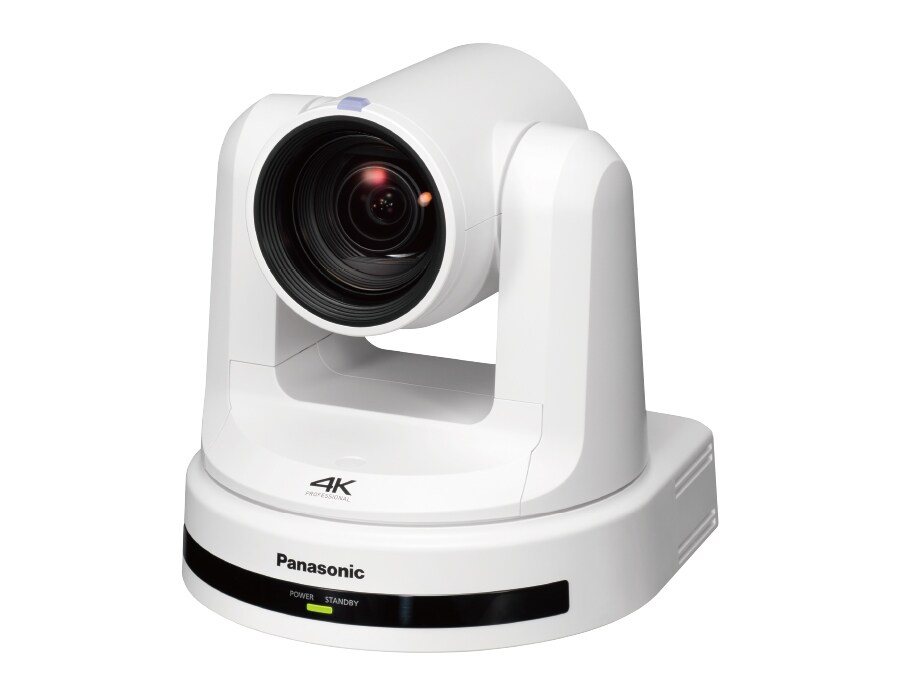

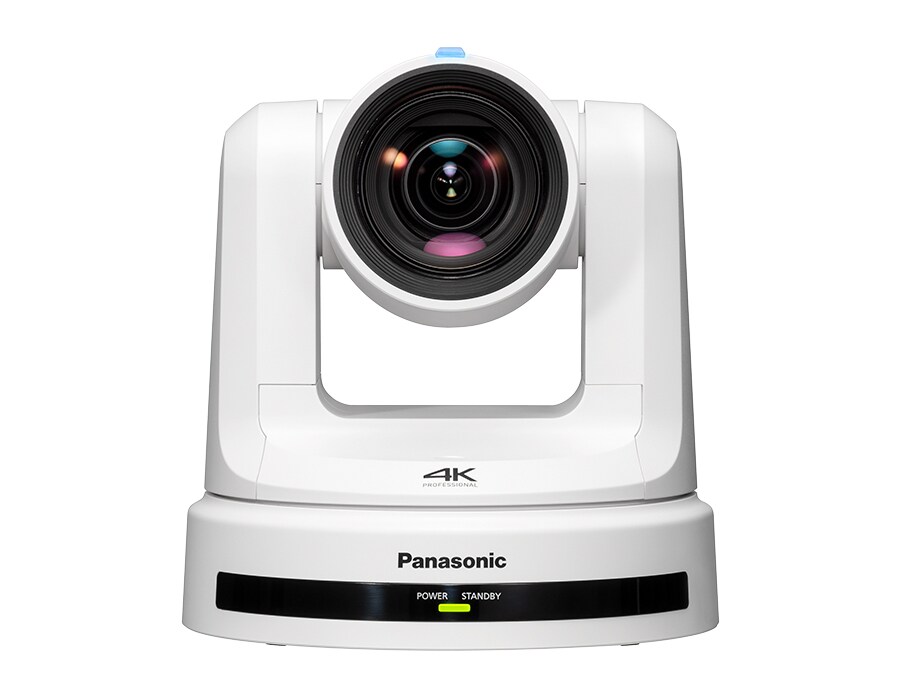

PANASONIC / AW-UE20W 1

A compact remote camera system that is easy to install and operate. This is a 4K entry model that is easy to install even in small spaces.

■4K integrated camera
■Color: White
[Camera section]
■Image sensor:
1/2.8 type 4K MOSx1
■Zoom magnification:
Optical zoom: 12x
■i Zoom: UHD: 1.33x, FHD: 1.33x
Digital extender zoom: 1.4x, 2x
■Lens:
Motorized 12x optical zoom F1.6 to F2.8
(f=3.9~46.8mm, 35mm equivalent: 26.4mm~316.4mm)
■Angle of view range
Horizontal angle of view: 71° (Wide end) -6° (Tele end)
Vertical angle of view: 43° (Wide end) -3° (Tele end)
Diagonal angle of view: 79° (Wide end) -7° (Tele end)
■Minimum illuminance:
0.4 lx (conditions: F1.6, shutter speed 1/30, 50IRE, +42 dB)
[General]
■Power supply:
DC12V(DC12V ±10%)
AC adapter: AC100~240V
■PoE+:
IEEE802.3at compliant: DC42.5-57V
■Current consumption
Main unit: 1.3A (DC jack input), 0.4A (PoE+ power supply)
AC adapter (included): 3.0A
■Operating ambient temperature:
0℃～40℃
■Operating ambient humidity:
20% to 90% (no condensation)
■Storage temperature: -20 ℃ to 50 ℃
■SIZE:
165.1(W)x176.2(H)x176.1(D)mm
*For ground plane, excluding mounting brackets and protrusions
■ Mass: Approx. 1.9 kg
*Excluding mounting bracket for ground surface
■Compatible controllers:
AW-RP150GJ, AW-RP60GJ, AW-RM50AG
