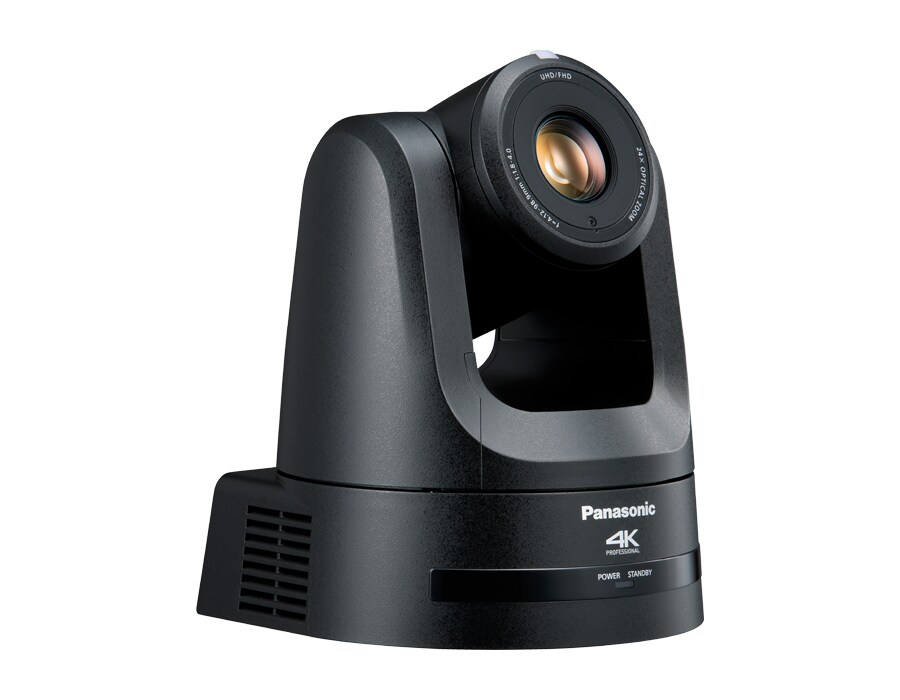

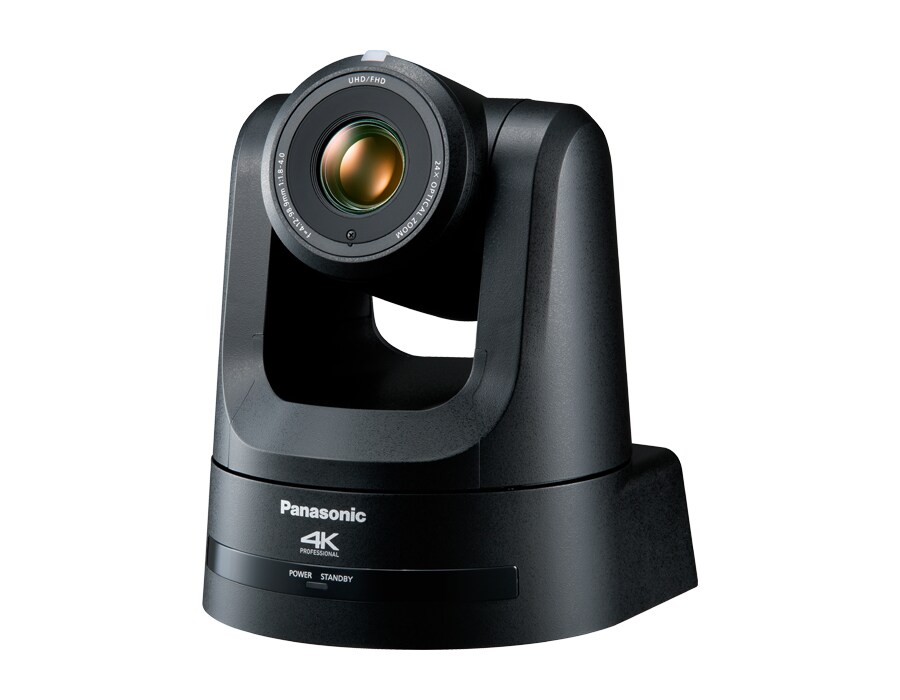

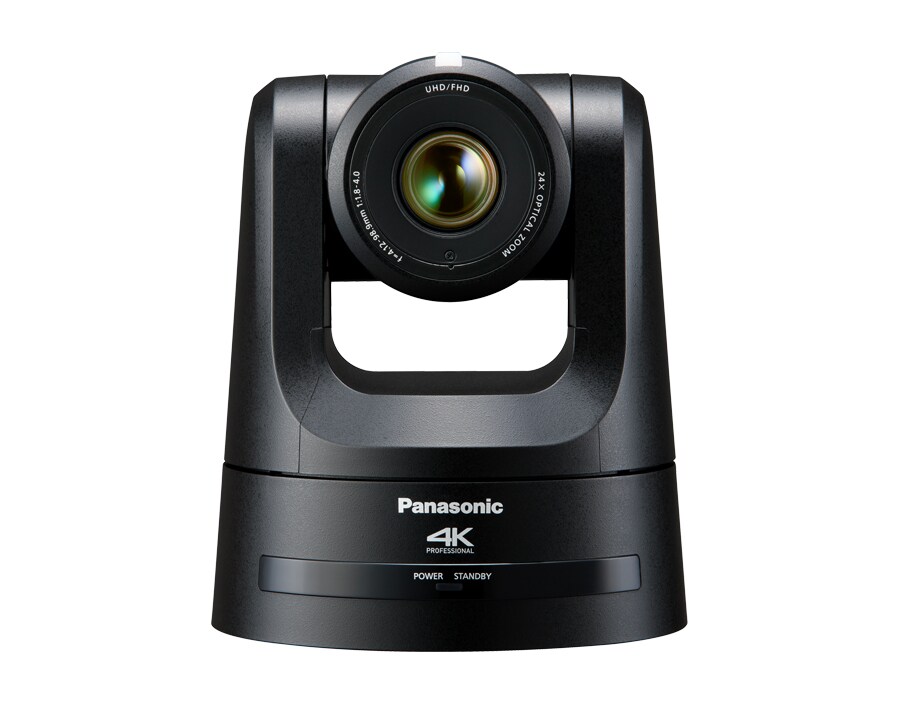

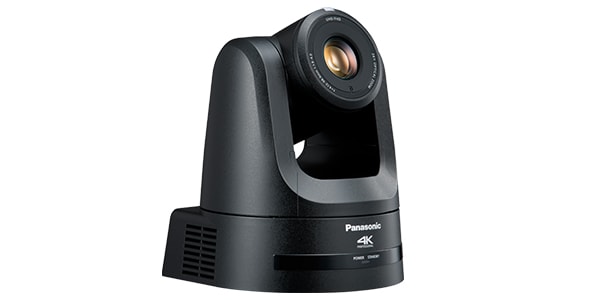

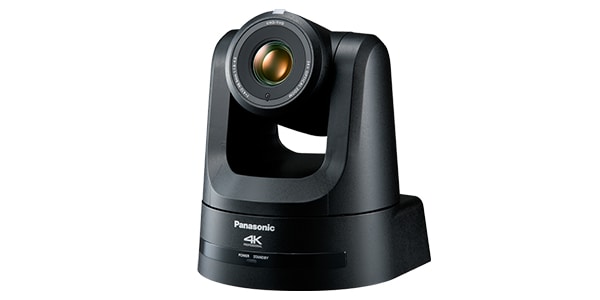

PANASONIC / AW-UE100K

This is a 4K integrated camera that can be used in a wide range of situations, from live event streaming to studio program production.

■4K integrated camera
■Color: Black
[Camera section]
■Image sensor: 1/2.5 type 4K MOSx1
■Zoom magnification
Optical zoom: 24x
i.Zoom: UHD28x, FHD36x
・Digital extender zoom: 1.4x, 2x
■Lens:
Motorized 24x optical zoom F1.8 to F4.0
(f=4.12mm to 98.9mm, 35mm equivalent: 25.0mm to 600.0mm)
■Angle of view range:
Horizontal angle of view: 74.1° (Wide end) - 3.3° (Tele end)
Vertical angle of view: 46.0° (Wide end) - 1.9° (Tele end)
Diagonal angle of view: 81.8° (Wide end) - 3.8° (Tele end)
■Conversion lens: Not supported
■Standard sensitivity:
F4/2000 lx (when [Shooting Mode] is [Normal])
F5.6/2000 lx (when [Shooting Mode] is [High Sens])
■Optical filter:
Through, 1/4, 1/16, 1/64, IR Through (IR Through is used as ""night mode"")
[General]
■Power supply: DC12V (10.8V-13.2V) (AC adapter included)
DC42V-57V (PoE++ power supply)
PoE++
IEEE802.3bt compliant: DC42 V-57V (software authentication (LLDP communication) compatible)
■Current consumption:
3.0A (AC adapter included), 1.0A (PoE++ power supply)
■Operating ambient temperature: 0 ℃ to 40 ℃
■Operating ambient humidity: 20% to 90% (no condensation)
■Storage temperature: -20 ℃ to 50 ℃
■Mass:
Approximately 2.2kg (excluding decorative cover and mounting hardware)
Approximately 2.3kg (including decorative cover, excluding mounting hardware)
■SIZE: 169.2(W)x204.6(H)x170.6(D)mm
*Excluding protrusions, decorative covers, and mounting hardware)
■Compatible controllers:
AW?RP150GJ, AW?RP60GJ, AK-HRP1010, AK-HRP250GJ
