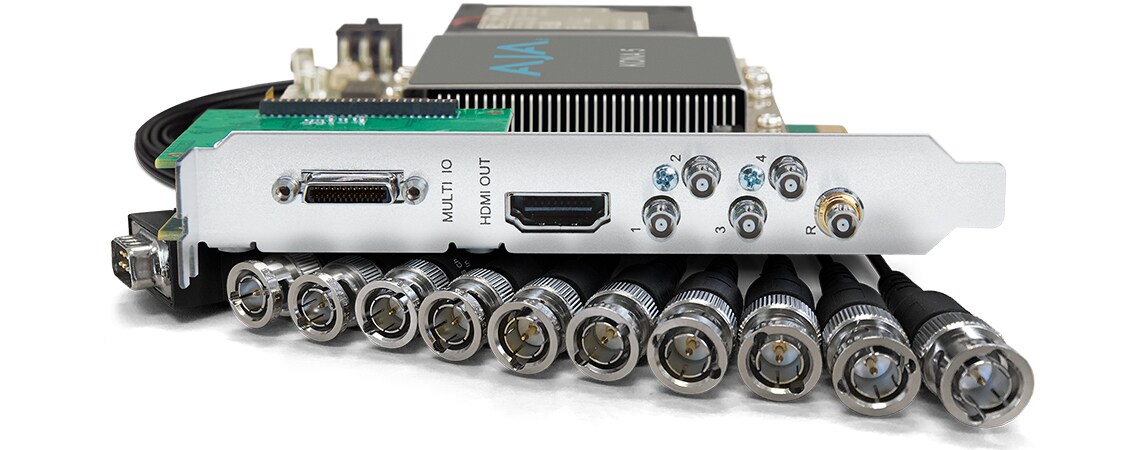

AJA Video Systems / KONA 5 (KONA-5-R0)PCIe 3.0 I/O Card

This is a high-speed 8-lane PCIe 3.0 I/O card with 12G/6G/3G-SDI and a full-size HDMI 2.0 port for connecting to monitors.

PCIe 3.0 I/O card
■Video Formats:
(8K)8192x4320p 23.98,24,25,29.97,30,47.95,48,50,59.94,60
(UltraHD2)7680x4320p 23.98,24,25,29.97,30,50,59.94,60
(4K)4096x2160p 23.98,24,25,29.97,30,47.95,48,50,59.94,60
(UltraHD)3840x2160p 23.98,24,25,29.97,30,50,59.94,60
(2K)2048x1080p 23.98,24,25,29.97,30,47.95,48,50,59.94,60
(2K)2048x1080PsF 23.98,24,25
(HD)1080p 23.98,24,25,29.97,30,50,59.94,60
(HD)1080PsF 23.98,24,25,29.97,30
(HD) 1080i 50,59.94,60
(HD) 720p 50,59.94,60
(SD) 625i 50
(SD) 525i 59.94
High frame rates and 8K/UltraHD2 performance are dependent on host system capabilities.
Not all systems can support all frame rates and resolutions listed above.
Digital video inputs:
12G-SDI, SMPTE-2082, 12-bit*, 10-bit and 8-bit
6G-SDI, SMPTE-2081, 10-bit and 8-bit
3G-SDI, SMPTE-259/292/296/424/425, 12-bit*, 10-bit and 8-bit
4K/UltraHD 4:4:4 (BNCx4)
1.5G-SDI, SMPTE 372M, Dual Link HD 4:4:4 (BNCx2), 12-bit*, 10-bit and 8-bit
1.5G-SDI, SMPTE 292M, single link 4:2:2 (BNCx1), 10-bit and 8-bit
* Bit depth support is application-dependent
Please get in touch with the developer of the software used for compatibility.
Note: KONA 5 SDI connector is HD BNC type
■ Digital video output:
12G-SDI*, SMPTE-2082, 12-bit*, 10-bit and 8-bit
6G-SDI*, SMPTE-2081, 10-bit and 8-bit
3G-SDI, SMPTE-259/292/296/424, 12-bit*, 10-bit and 8-bit
4K/UltraHD 4:4:4 (BNCx4)
1.5G-SDI, SMPTE 372M, Dialink HD 4:4:4 (BNC x 2), 12-bit*, 10-bit and 8-bit
1.5G-SDI, SMPTE 292M, single-link 4:2:2 (BNC x 1), 10-bit and 8-bit
HDMI v2.0
30/36-bits/pixel, RGB or YUV, 6 Gbps per color component
HFR support for 4K, UltraHD, 2K, HD, SD at up to 60p (4:2:2), 10-bit and 8-bit
HDR10 support** - HDR-info frame metadata, HDMI 2.0a/CTA-861.3 compliant
HLG support** - HDMI 2.0b/CTA-861-G compliant
*Bit depth support is application-dependent
Contact your software developer for compatibility
** HDR support is application-dependent
Please get in touch with the developer of the software used for compatibility.
Note: KONA 5 SDI connector is HD BNC type.
19.05(W)x127.00(H)x175.26(D)mm
