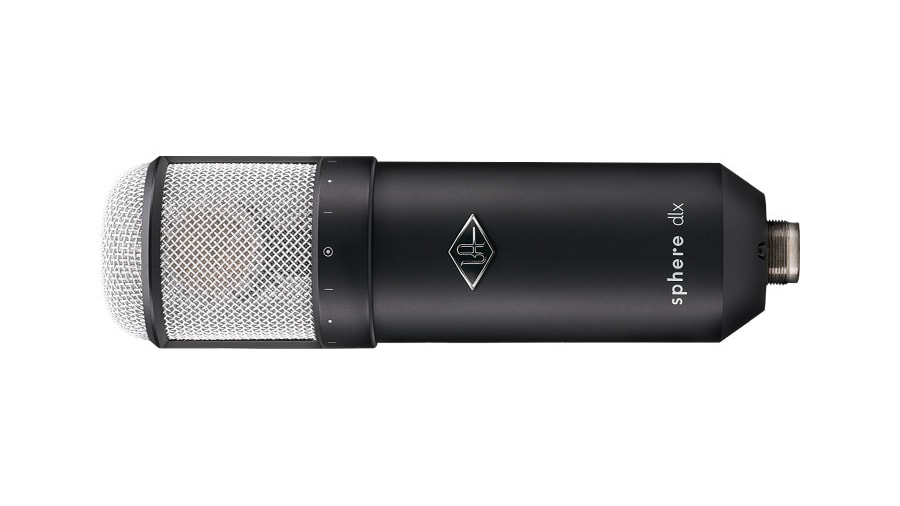

UNIVERSAL AUDIO / Sphere DLX

A high-end model of the Sphere microphone, equipped with 38 types of microphone models and capable of stereo recording.

○Main features and overview of Sphere DLX/LX
Universal Audio Sphere DLX/LX is here for all recording engineers and musicians who want to use world-class microphones, even vintage ones, without worrying about cost or maintenance.
Exclusive Sphere technology provides unprecedented sonic detail, versatility, or control during and after recording.
Experience authentic tone, rich and cultivated from a long recording history.

・Condenser microphone with the lowest noise in its class

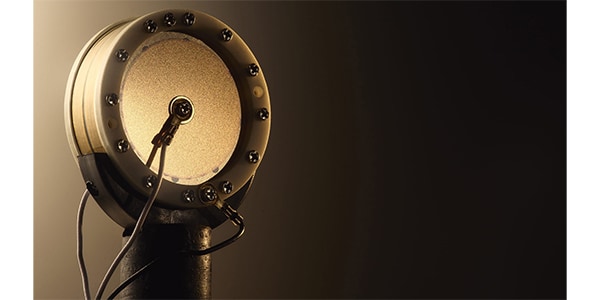

Equipped with gold sputtered dual diaphragm. Achieves the best basic performance in its class. A stand mount, custom 2-channel cable, carrying case, shock mount (DLX only) and other accessories are also available.

・Record with the most popular microphone collection in history (DLX: 38 models, LX:
20 models*)
Featuring numerous legendary microphone models including Neumann, Telefunken, AKG, Sony, and more. The most popular ribbon, condenser, and dynamic microphones of all time are now available for your microphone.
*If you purchase the paid version of the Sphere-specific UAD plug-in, ``Ocean Way Mic Collection'' or ``Putnam Mic Collection,'' LX users will also be provided with 38 different models.

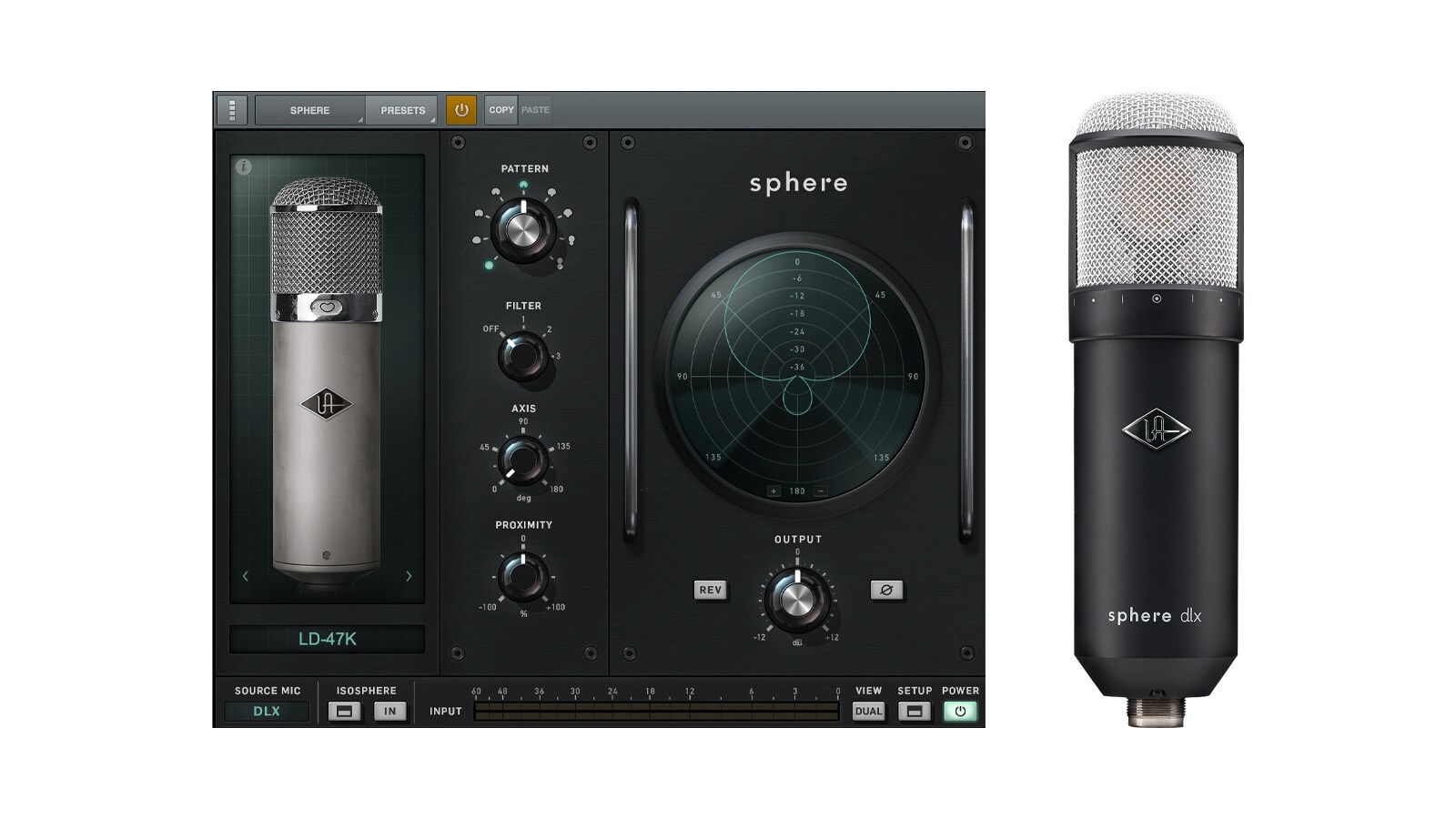

-Mic type, polar pattern, and other microphone characteristics can be changed even after recording
Sphere plug-in is available in native version and Apollo/UAD version. The formats also support VST, VST3, AU, AAX Native, and AAX DSP (UAD version is VST, AU, and AAX Native).

・Stereo recording possible with one microphone (DLX only)
DLX is capable of stereo recording and has a dedicated Sphere 180 plug-in, so it is compatible with stereo sources.

・Blend two classic monaural microphones using dual mode
By blending two monaural microphones, you can record the rich sound of snares, guitar cabinets, etc. by blending two monaural microphones.

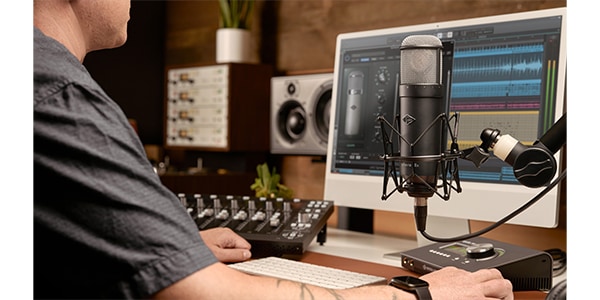

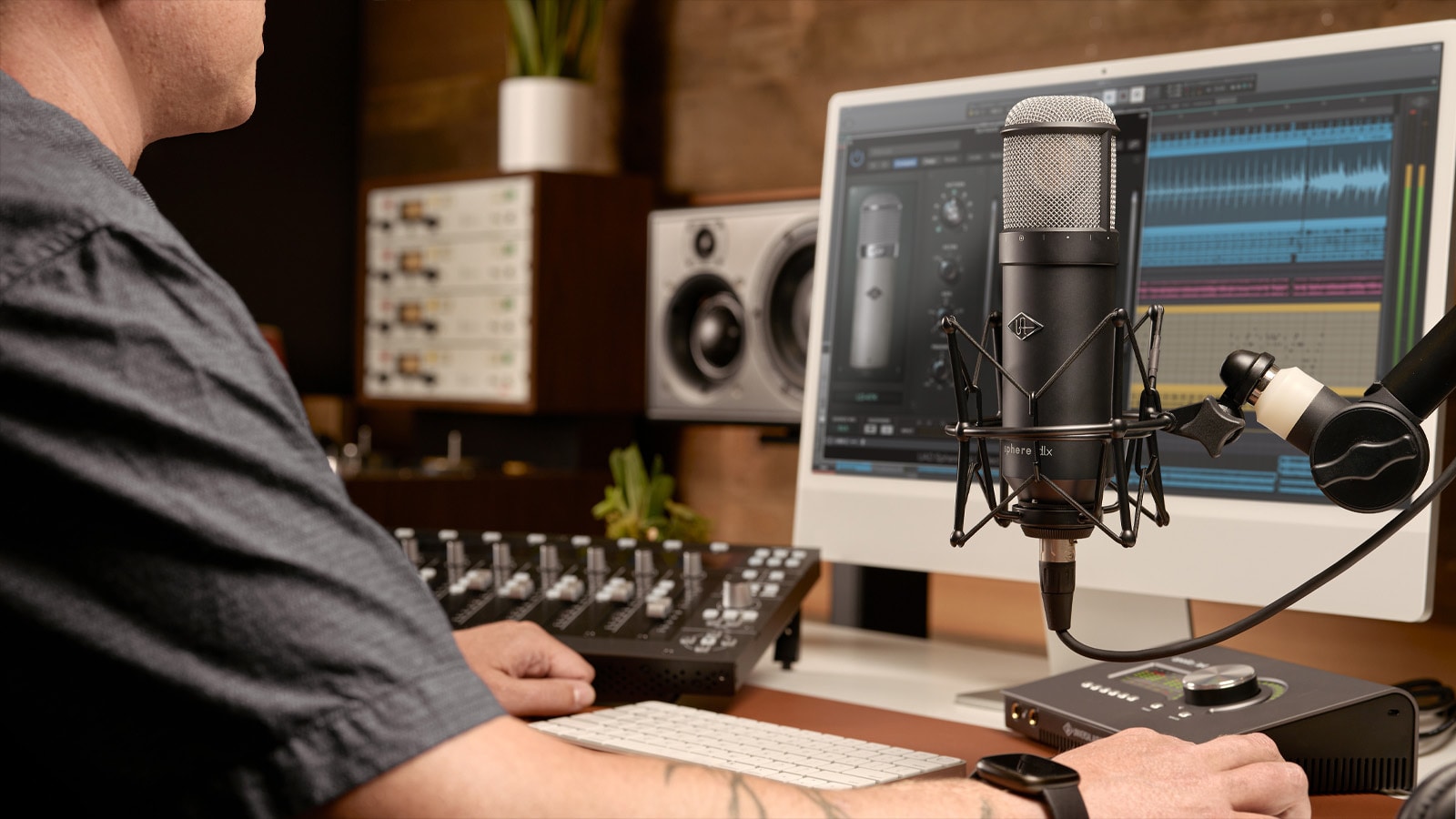

・Real-time microphone audition with Apollo interface
Sphere DLX/LX can be used with various audio interfaces and DAWs equipped with mic preamps, allowing you to switch between mic types before, during, and of course after recording.
Furthermore, when used with the Apollo interface, real-time monitoring with virtually no latency is possible.

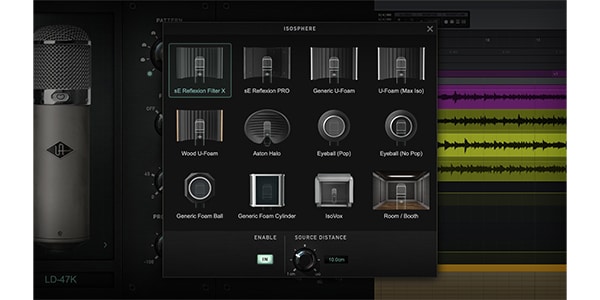

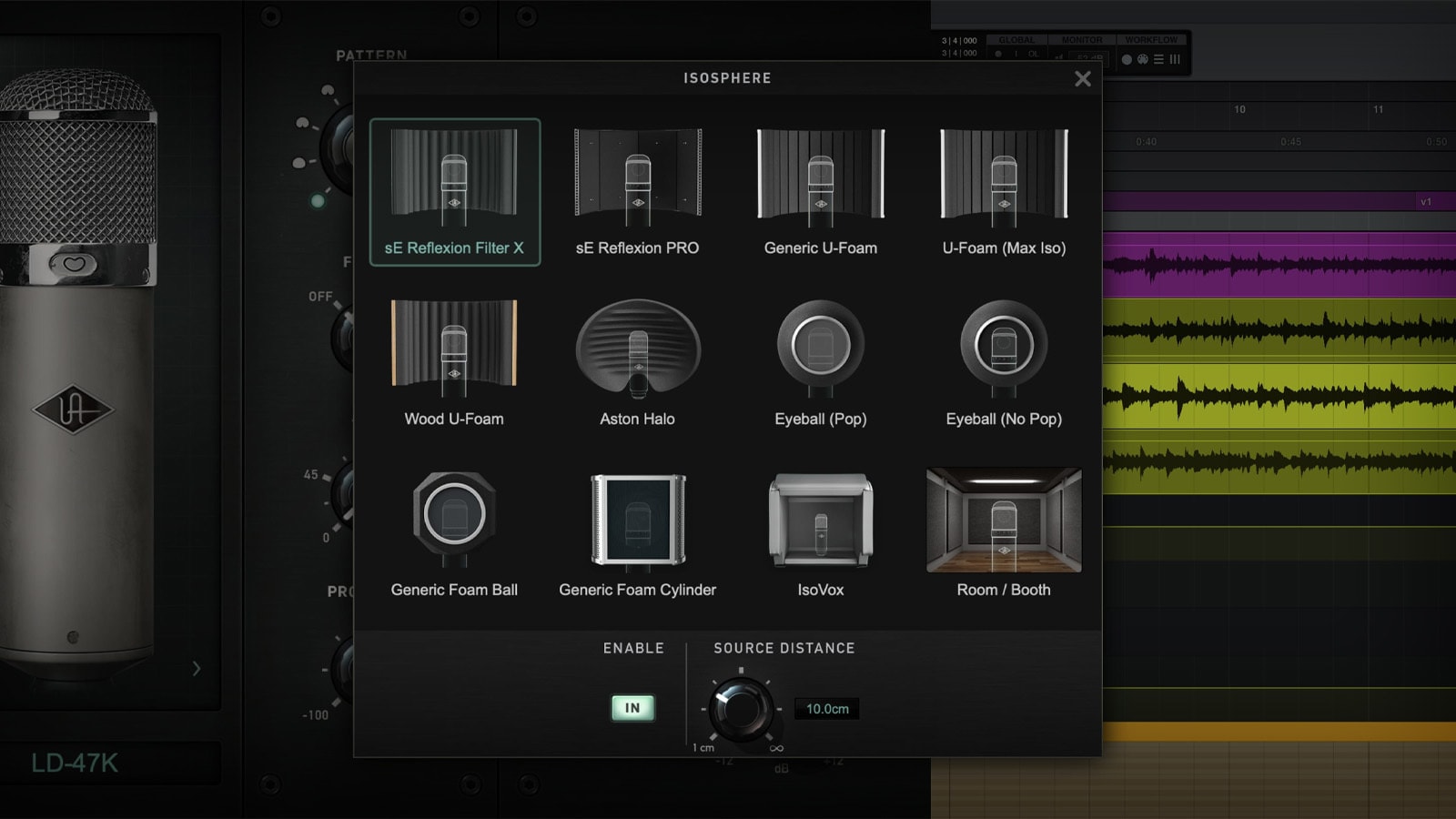

・Isosphere function that reduces unnecessary coloring in the recording space
Equipped with an Isosphere function that reduces unnecessary coloration due to room-specific characteristics and isolation filters.
*It is also included in the paid version of the Sphere-specific UAD plug-in.

○Main specifications of Sphere DLX (microphone body)
・Frequency characteristics: 20 Hz - 20 kHz
・Equivalent noise level: 7 dBA
・Maximum SPL (1% THD): 140 dB (-20 dB with pad switch enabled)
・Dynamic range: 133 dB

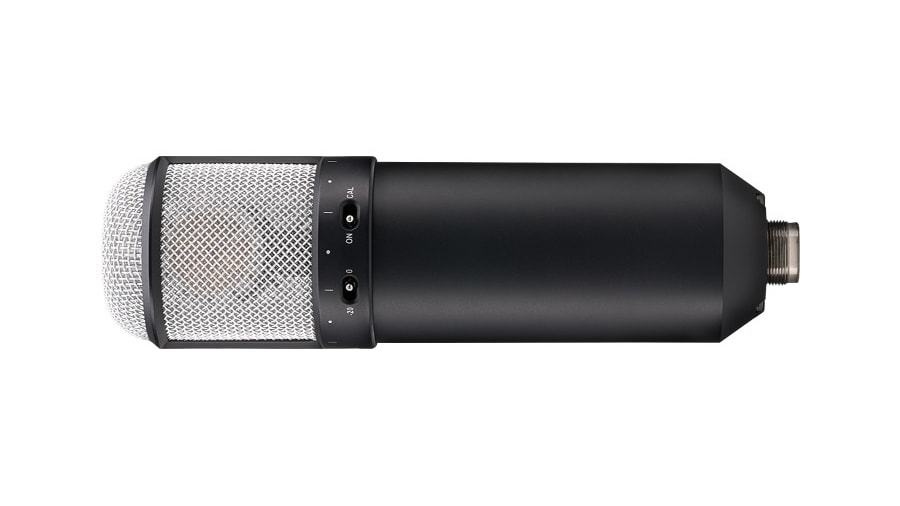

・Pad attenuation: -20 dB
・Sensitivity: -33 dB (22 mV) ref 1V @ 1 Pa, 1 kHz
・Output terminal: 5 pin XLR (male)
・Breakout cable: 5-pin XLR (female) to dual 3-pin XLR (male)
・Output impedance: 200?
・Recommended load impedance: 2000? or more
・Phantom power
Voltage: 48V DC for each channel
Current: 3 mA for each channel (typical)
・External dimensions: length 225 mm x diameter 63 mm
・Body weight: Approx. 770 g

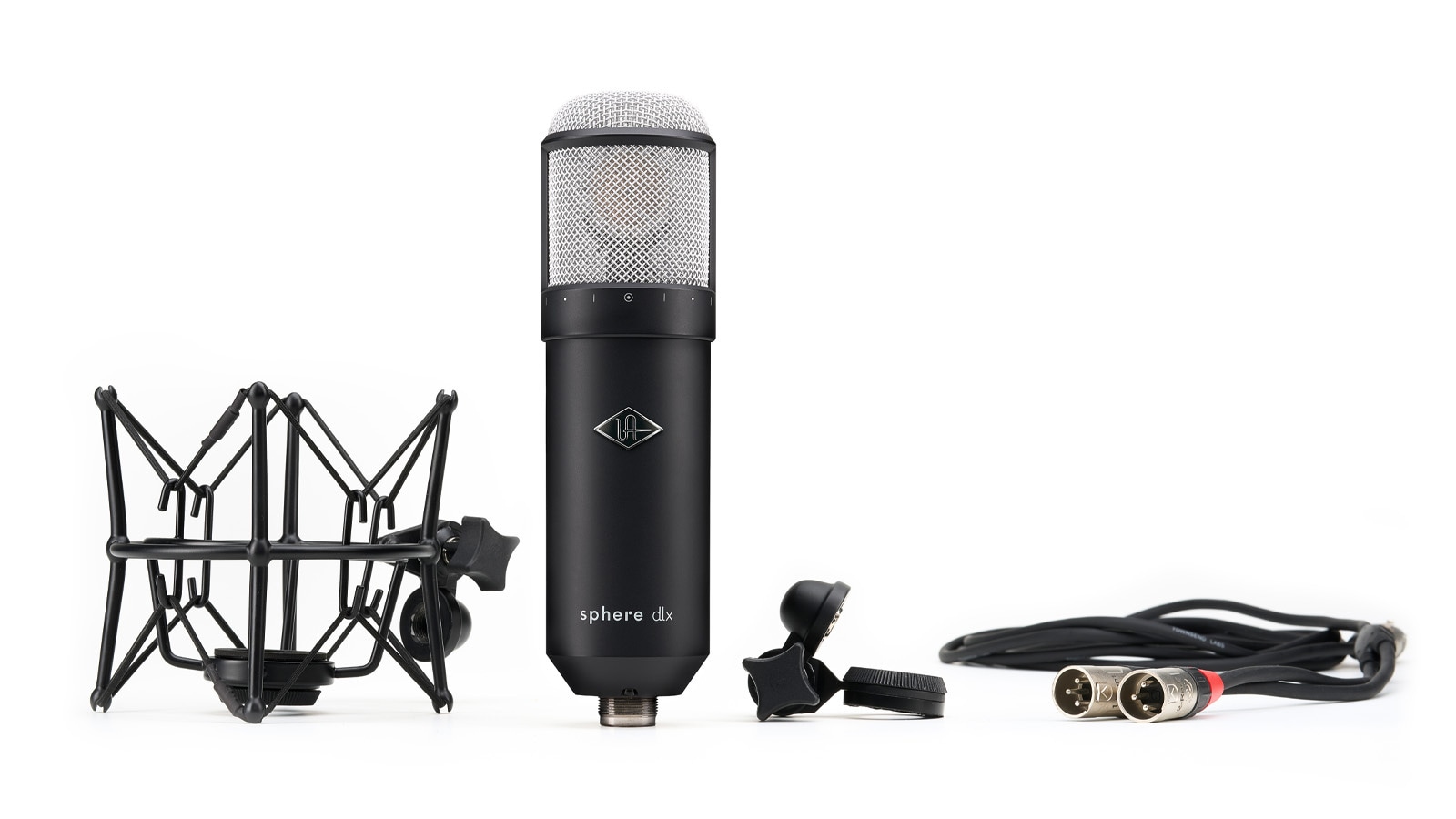

・Accessories: Shock mount, microphone stand mount, microphone cable (approx. 7.5m), carrying case

〇Minimum operating environment
[Hardware]
Mic preamp with two channels of balanced XLR input and +48V phantom power
Or an audio interface

【software】

Apple Silicon or Intel processor
macOS 10.15 Catalina, 11 Big Sur, 12 Monterey, 13 Ventura


Intel or AMD processor
Windows 10, 11 (64 bit)


Native (CPU processing): VST2, VST3, AAX, Audio Units
DSP (real-time processing):
UAD: VST2, AAX, Audio Units HDX: AAX

*UA Connect software is required to register the product and download the native version software.
Requires software v1.3.3 or later.
*Apollo/UAD version requires UAD software v10.2.2 or later.
