KarDiaN / PRIME GEAR ONBOARD

Ovaltone, which has been developing equipment that has been loved and sought after by professionals for over ten years since its founding, has now released its famous "PRIME GEAR" as a character module.

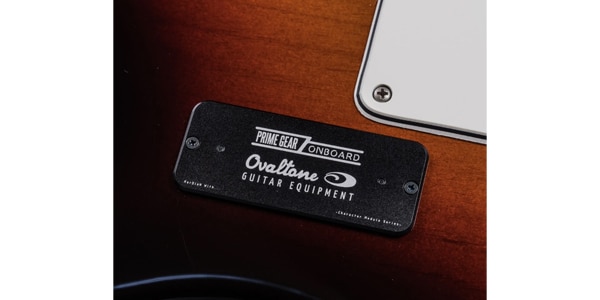

"PRIME GEAR ONBOARD" is a treatment effect that upgrades the performance nuance of PRIME GEAR to its fullest potential and provides the excellent low-impedance conversion required of a buffer device at the shortest possible distance from the guitar.

In addition, during development, Ovaltone matched the GEAR with a character module.
The circuitry has been optimized to maximize the effect of this device, which was originally developed as a pedal effector when attached to a guitar body.
In addition, Mr. Tanaka, the master builder of Ovaltone, assembled the important parts himself, and the final tuning of the sound was done under the complete supervision of Ovaltone.

PRIME GEAR has been loved by professionals for many years, and most of them always have it at the beginning of their effects board, no matter what time of day it is.
The "PRIME GEAR ONBOARD" is the perfect choice not only for Ovaltone fans who love the PRIME GEAR but also for those who are looking for an excellent buffer and a low-impedance signal output to activate their guitar.

CHARACTER MODULE SERIES
The Character Module Series (CMS), the backbone of the PRIME GEAR ONBOARD, is characterized by its "built-in battery" and "socket replacement. Thanks to this small housing, a 9V battery, the so-called 006P type (approx. 50 x 26 mm), can be stored in the CMS with only a simple installation process. Furthermore, the "PRIME GEAR ONBOARD" can be interchanged with other CMS products in the socket without any additional modifications.

You can experience the new performance of the character module without modifying your precious guitar as much as possible.

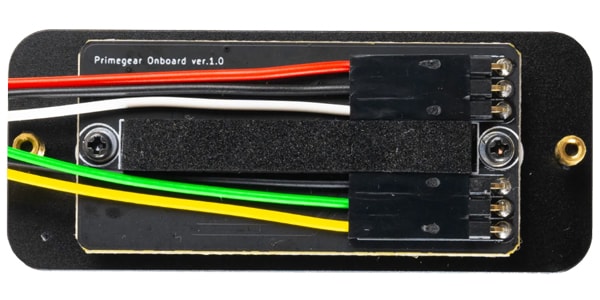

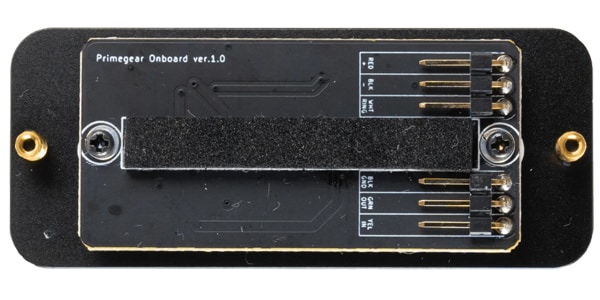

WIRING DIAGRAM
YELLOW: Wiring for inputting output from pickups, etc.
GREEN: Wiring for output from the character module itself.
WHITE: Wires that connect to the ring of the switch-type jack.
BLACK: Ground wire that connects to the common ground of the guitar.

SPECS
Power source: Battery-powered, up to 9V
Dimensions: Width (W) 70 mm, Depth (D) 29 mm, Thickness (H) 12.6 mm (excluding protruding parts such as wiring materials)
Weight: 17g
Power consumption: 0.6mA
JAN: 4589825520314
Accessories: 2 mounting screws, 2 Dodge bit inserts, warranty card

DISCLAIMER
When installing this product on an instrument, it may not be possible to install it on an existing instrument without additional modification. Forced installation without modification may result in damage to your instrument. Please consult with the retailer or repair store where you purchased the instrument before installation. Please note that you are responsible for any problems or accidents that may occur when installing the product and that we do not provide any guarantees. In addition, specifications are subject to change without notice due to product improvement.

The image is a sample. Please note that the anodized aluminum treatment and laser printing may differ slightly from one unit to another. In addition, there may be some dullness due to anodizing or minor scratches due to machining, but this is a specification.
