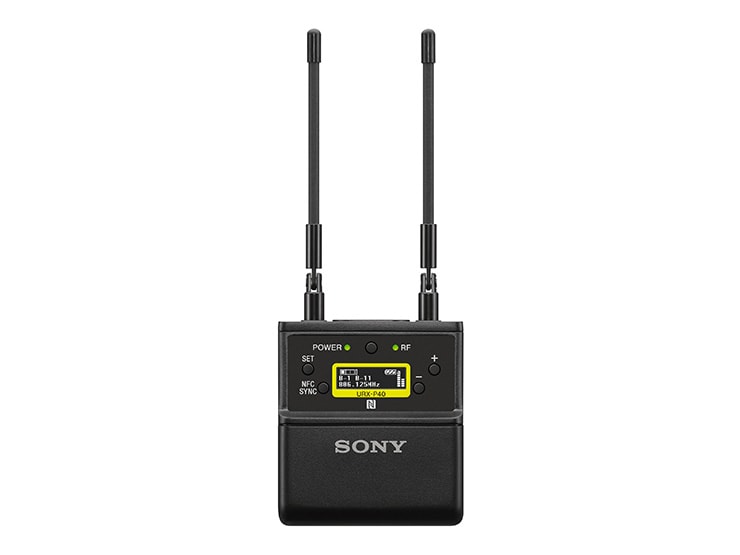

SONY / URX-P40 UHF diversity tuner

SONY800MHz帯ボディーパックトランスミッターUTX-B40と互換性のあるワイヤレス受信機です。小型カムコーダーとの組み合わせにより、ENG、EFP アプリケーションにおいて機動性のあるシステムを構築することが可能です。

Product Features
Sony digital audio processing technology delivers high sound quality.
True Diversity Receiving System for stable signal reception
Channel memory function for quick switching between two frequencies (receiver)

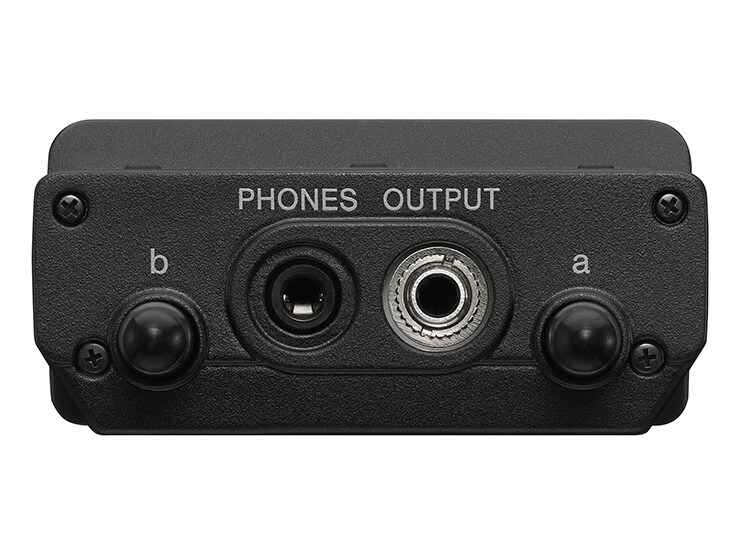

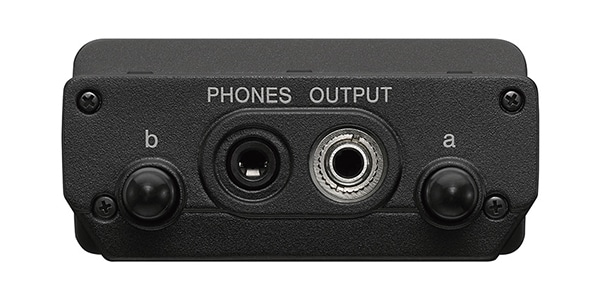

Headphone output jack for monitoring
Monitor mode (receiver) is convenient for use as an ear monitor
Compatible with WL-800/UWP/UWP-D series
Has an output level adjustment function (receiver)
OLED display for easy viewing outdoors
Has a USB port for an external power supply
Compact and lightweight for easy mobility during shooting
Compatible with the digital audio interface when used with the SMAD?P5 Multi-Interface Shoe Adapter (sold separately)

Product Specifications
Antenna: 1/4λ wire antenna (angle adjustable)
Audio output level: -60dBV (ø3.5mm locking 3-pole mini jack, analog output, audio output level 0dB)
　　　　　　　　-20dBFS (external connection terminal, digital output, audio output level 0dB)
　　　　　　　　-50dBV (external connection terminal, analog output, audio output level 0dB)
Audio output level variable range: -12 to +12dB (3dB step)
Audio output terminal: Φ3.5mm locking 3-pole mini-jack, terminal for external connection
Headphone output level: max. Ten mW (16-ohm)
Headphone output terminal: 3.5-mm dia. mini-jack
Receiving system: True diversity system
Local oscillator: Crystal-controlled PLL synthesizer
Reception frequency: 806.125 - 809.750MHz
SN ratio: 60dB (1kHz sin wave, 5kHz modulation)
Audio Delay: Approx. 0.35 ms (analog output), approx. 0.24 ms (digital output)
De-Emphasis: 50μs
Reference frequency deviation: ±5 kHz
Frequency response: 40Hz to 15kHz (Typical)
Strain rate: <0.9% (1kHz Sin wave, 5kHz modulation)
Tone signal frequency: 32.382kHz when compander mode is set to UWP-D
　　　　　　　　　When compander mode is set to UWP: 32 kHz
　　　　　　　　　When the compander mode is set to WL800: 32.768kHz
Indicator: POWER, RF tolerance
Operating temperature: 0 to 50°C acceptable
Storage temperature: -20 to +55°C
NFC function: Yes
USB port: Type-C
Power supply voltage: DC3.0V (2 AA alkaline batteries) DC5.0V (supplied from USB port)
Battery life: Approx. 6 hours (Sony alkaline batteries, AA size (LR6), 25°C, DISPLAY MODEL set to AUTO OFF)
Dimensions (W x H x D): 63 x 70 x 31 mm (excluding antenna)
Weight: Approx. 131 g (excluding batteries)
Accessories: Shoe-mount adapter x 1, belt clip x 1, XLR to BMP conversion output cable for URX-P40 x 1, stereo mini to BMP conversion cable x 1, Before use x 1, warranty card x 1
