DIGICOM / REDLINK 12

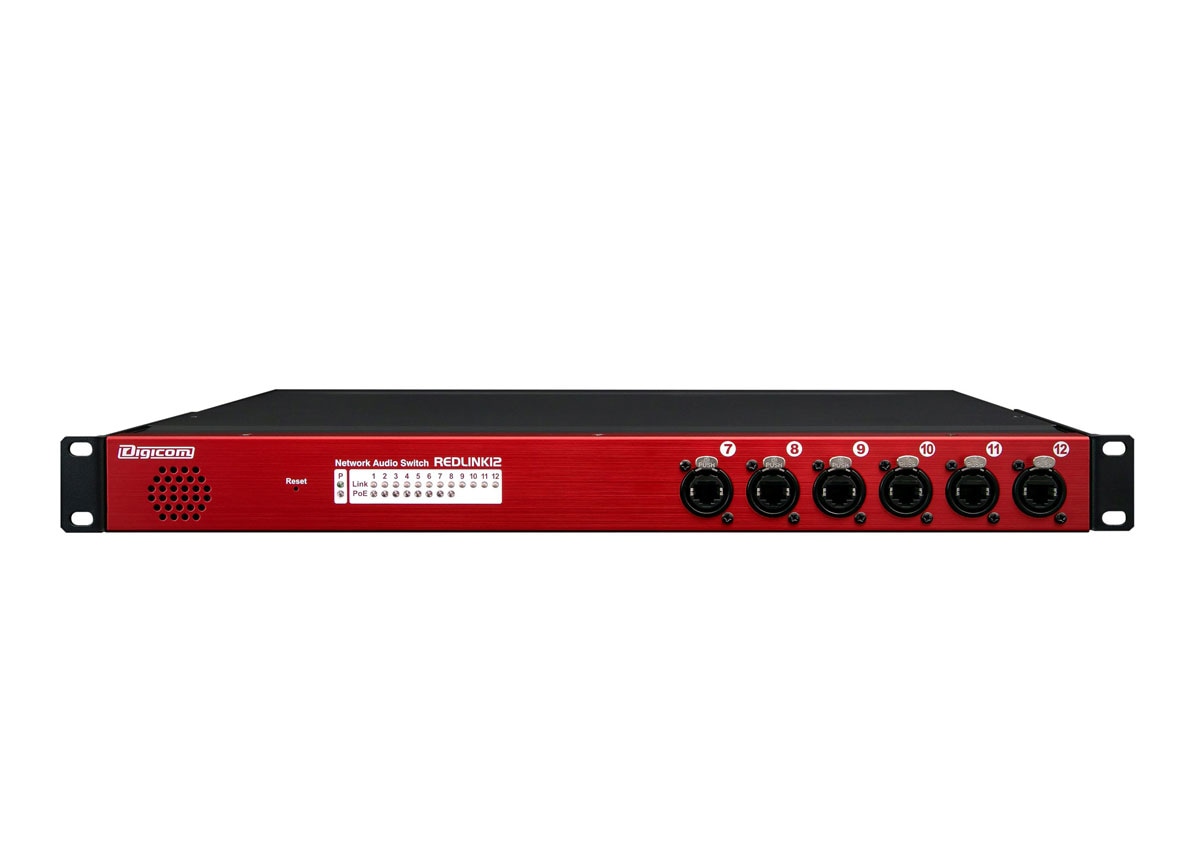

DIGICOM / REDLink12 is an etherCON 12-port network switch optimized for Dante audio networks.

Dante Network Switches

REDLINK12, the Reliable Dante Switch

The successor to the REDLink10 Dante switch, created by Digicom, a company that has been involved in network audio for many years, is now available.
It has 12 etherCON ports.
Up to 4 ports can be changed to optical ports as an option.
Optimized for Dante as standard; no configuration is required.
A stable network system can be built simply by connecting to a Dante device.
It has a PoE+ power supply function, eliminating the need for a power supply to Dante devices that support PoE+ power reception.
The use of etherCON for LAN terminals, opticalCON or FIBERFOX for optical terminals, and IEC LOCK for power cables prevents accidental cable disconnection.
FIBERFOX will be supported in the future.

Product Features
Network switch optimized for Dante audio networks for Dante users
Pre-configured with the QoS settings required for switches in Dante networks.
Easy to connect, no complicated settings are required.
Has PoE+ (IEEE 802.3at) functionality, making it easy to deploy PoE+-compliant devices in a Dante network.
Has 12 etherCON ports as standard, 4 of which can be replaced with opticalCON or FIBERFOX (option, FIBERFOX).
　(Optional: FIBERFOX will be supported in the future)
The use of etherCON connectors ensures frequent connection and disconnection.
The position of the rack mount bracket can be changed (the main unit can be moved 50mm further than its normal position).
The power cable is equipped with a lockable power cable IEC LOCK to prevent accidental cable disconnection.


Product Specifications
Number of ports
Number of posts: 1000Base-T (etherCON) 12 ports
1000Base-SX/LX/T(opticalCON, FIBERFOX) up to 4 ports (optional, port 9-12 replacement)

Port functionality:
Auto-negotiation
MDI/MDI-X auto-switching ○
PoE+ (Power Over Ethernet) ○ (ports 1-8, 30W each port, up to 130W total)

Product Capabilities:
Transfer method: Store & forward
Switching capacity 24Gbps
The number of Mac addresses: 8,000

Hardware Specifications
Power supply 100V-240V, 50-60Hz
Maximum power consumption 155W
Weight 4.4 kg
Dimensions 482 W x 44 H x 282 D (330D, including connector) mm
Cooling fan 0
Accessories IEC LOCK power cable
