APOGEE / Symphony I/O MKII Dante 32x32SE + SoundID with Mic

Symphony I/O MKII, a multi-channel audio interface with Apogee's latest flagship AD/DA converter, bundled with SonarWorks multi-channel speaker calibration, is a great value package!

Multichannel Audio Interface
Dante Support

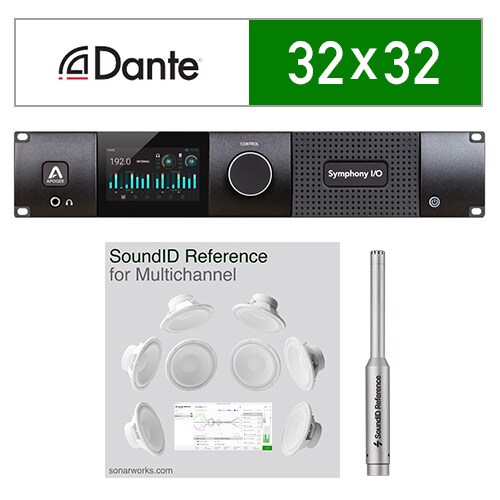

Symphony I/O MKII DANTE 32x32SE and Sonarworks SoundID Reference for Multichannel with Measurement Microphone (retail box) in a bundled set!

32x32SE Analog I/O This is a new model, launching in 2023, with improved quality as the SE version.

Inputs
Analog Inputs: 2x 25-pin D-Sub connector balanced inputs x 16 channels
S/PDIF coaxial inputs: 2x RCA coaxial
Analog input: 2x 25-pin D-Sub connector balanced input x 16ch
S/PDIF coaxial inputs: 2x RCA coaxial

Outputs
Analog output: 2x 25-pin D-Sub connector balanced output x 16ch
S/PDIF coaxial output: RCA coaxial x 2ch
Analog output: 2x 25-pin D-Sub connector balanced output x 16ch
S/PDIF coaxial output: 2x RCA coaxial


Symphony I/O MKII DANTE 32x32SE Legendary Sound Quality Symphony I/O Mk II features Apogee's flagship AD/DA conversion, up to 32 channels of modular custom-configured analog inputs and outputs, an intuitive touchscreen display, and the option of world-class microphone preamps. It can also have optional world-standard quality microphone preamplifiers. Designed for professional-quality audio recording, mixing, and mastering, Symphony I/O Mk II serves as the centerpiece of the finest music production in the modern studio.

Now, with the Symphony I/O Mk II Dante + PTHD option card and an Ethernet cable, you can easily connect and share the Symphony I/O Mk II with any post-production, broadcast, live, or recording studio network. Symphony I/O Mk II can now be easily connected and shared on post-production, broadcast, live, and recording studio networks. The Symphony I/O Mk II Dante + PTHD option card also provides connectivity to Pro Tools HD, allowing you to integrate a Pro Tools HD Pro Tools HD and integrate a Pro Tools HD system into a Dante network environment. No other Dante-capable audio interface offers this level of quality, flexibility, and modularity.


Features Ultimate sound quality - Apogee's flagship AD/DA conversion and optional mic preamps I/O - Up to 32 channels of analog I/O and eight optional mic preamps
Pro Tools HD Peripherals Port - Bi-directional channel send/receive support for up to 32 channels @ 192kHz; Symphony I/O inputs or Dante Rx into Pro Tools in blocks of 8 channels; Pro Tools HD outputs to Dante Tx Pro Tools HD outputs are fed to Dante Tx and I/O module outputs.
The most compatible network technology works seamlessly with other Dante devices.
Supports up to 32 channels @ 96 kHz and 16 channels @ 192 kHz in both directions.
Apogee network control software allows remote control of Symphony I/O settings, including mic pre (only if it has one), calibration, and monitor control (it supports macOS and Windows 10).
Control all Symphony I/O Mk II settings, including calibration, monitors, and mic preamps.

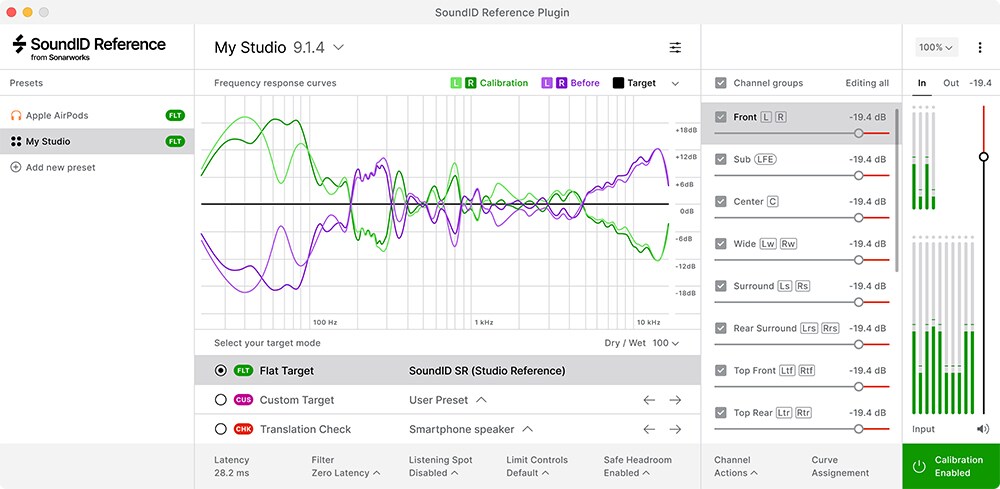

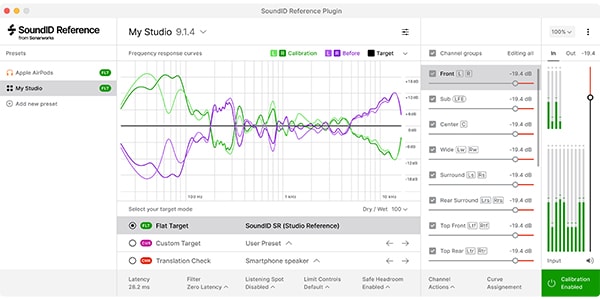

Sonarworks SoundID Reference for Multichannel with Measurement Microphone (retail box) Speaker calibration for multichannel SoundID Reference for Multichannel provides accurate and reliable reference sound for speaker setups ranging from simple stereo to 9.1.6 atmos systems. In addition, it is headphone-compatible and can calibrate over 480 headphone models from its ever-growing headphone profile database to provide consistent reference sound between headphones and speakers.


Features
Reliable, stable, and easy-to-use calibration software for all audio systems.
Accurate speaker measurement and calibration of audio systems from stereo to 9.1.6 channels.
・High precision SoundID reference measurement microphone with individual multi-angle calibration curves.
∙ Out-of-the-box headphone calibration for 480+ models

Control your target sound.
・Flat target curves used by over 100,000 music creators worldwide.
・Customizable targets by limiting the calibration frequency range and manually adjusting the target curve

High performance and flexibility.
∙ Zero-latency plug-in DSP for multichannel
∙ Channel-to-channel phase adjustment function for high-precision time-delay calibration
Native support for Apple silicon platforms/M1 chip

Export of calibration profiles to supported hardware.
・AVID MTRX with SPQ DSP
AVID MTRX Studio
DAD AX32 with SPQ DSP
Dolby Atmos Renderer Mastering Suite
Jones Scanlon Studio Monitors
More hardware support in 2022


What's Included Product License Activation Key: Activate and use the product on three machines.
SoundID Reference multichannel DAW plug-in (AAX, AU, VST2, VST3)
SoundID Reference is a stand-alone application for stereo (ASIO, WASAPI, APO, HAL)

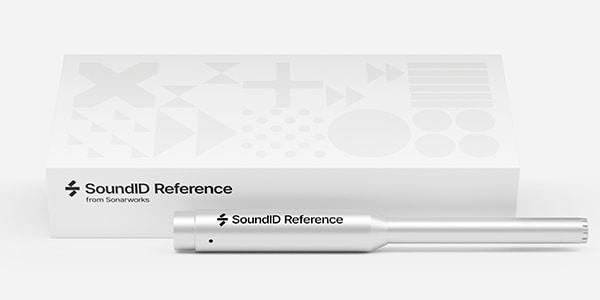

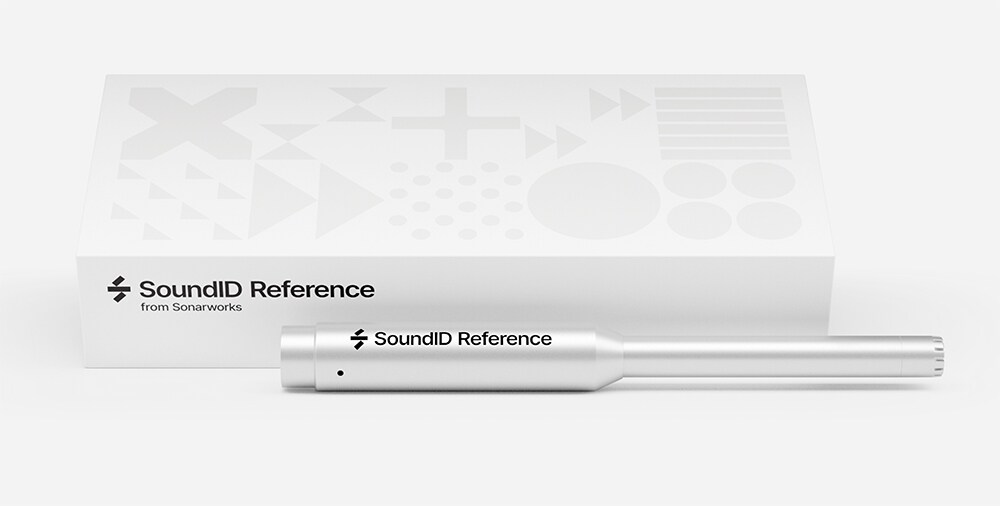

SoundID Reference measurement microphones with XLR connection and individual calibration profiles
Clip for O21-26mm microphones, 5/8" threaded


System Requirements Mac: macOS 10.14; 10.15; 11 Big Sur; 12 Monterey
PC: Windows 10; 11
Microphone stand for multichannel system measurements
Audio interface requirements for speaker measurements
+48v phantom power support
The same audio interface must be used for input and output.
The audio interface must support and be configured for one of the following sample rate formats: 44.1kHz, 48kHz, 88kHz, 96kHz, 192kHz
The audio hardware setup must consist of only a single external hardware device (additional preamp units are supported).
