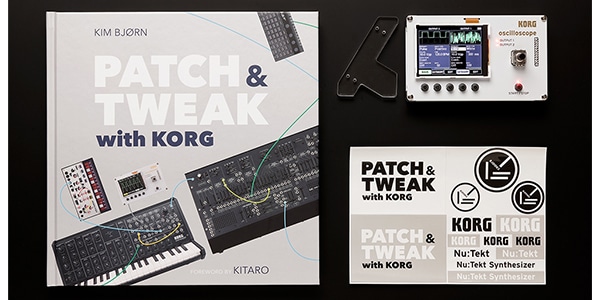

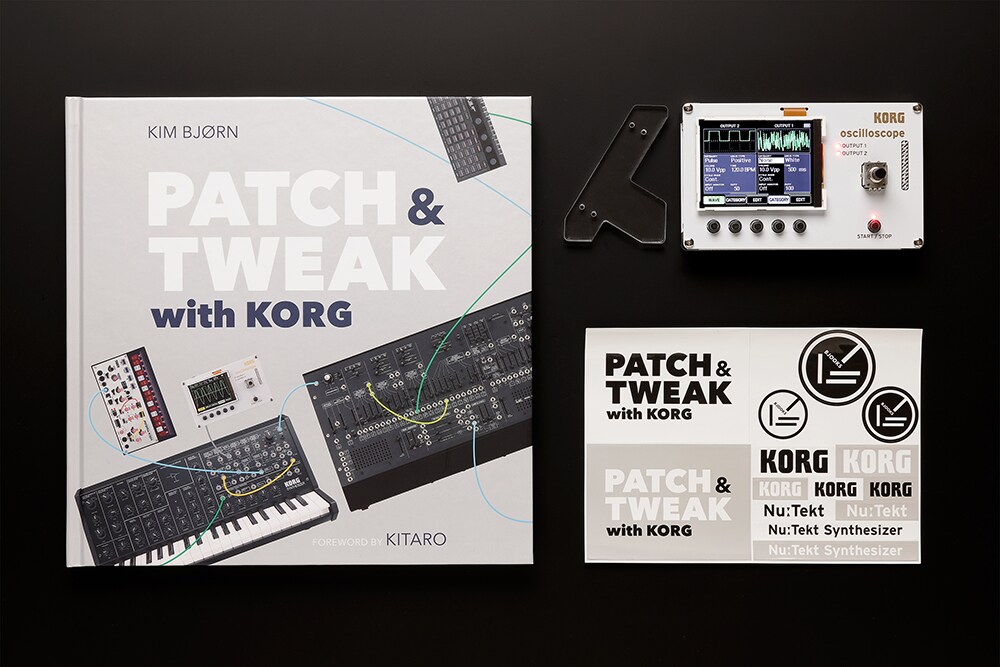

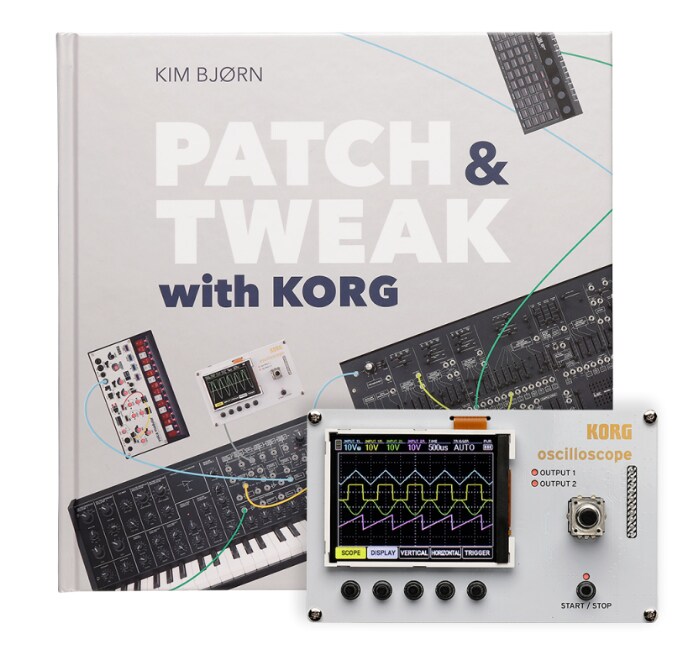

KORG / NTS-2 oscilloscope kit + PATCH & TWEAK with KORG

The first collaboration with BJOOKS, a publisher of remarkable synth books and versatile tools such as oscilloscopes, tuners, FFTs, and spectrum analyzers! This is a gorgeous bundle set of books and equipment.

What is "PATCH & TWEAK with KORG"?
PATCH & TWEAK with Moog" is a book that captures the details of semi-modular synthesis. It was published by BJOOKS, a highly-rated publisher supported by musicians and producers around the world.
The book focuses on the popular Korg and ARP semi-modular synthesizers: the MS-20 mini, the ARP 2600 M, the Volca modular, the SQ-1 and SQ-64 sequencers, and the NTS-2 oscilloscope. It covers synthesizer beginners, experienced professionals, Korg enthusiasts, and ARP fans. This book is a must-have for synthesizer beginners, experienced pros, KORG enthusiasts, and ARP fans alike.

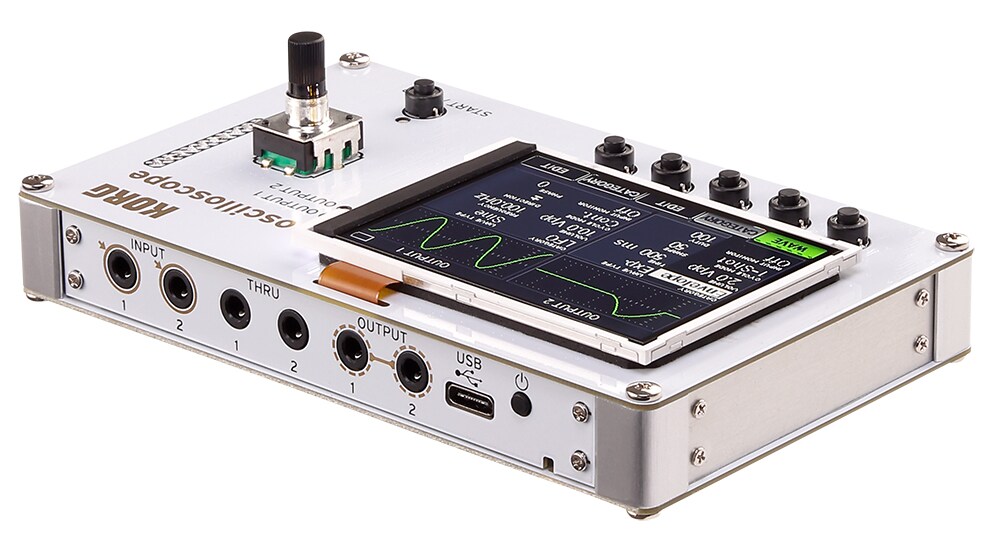

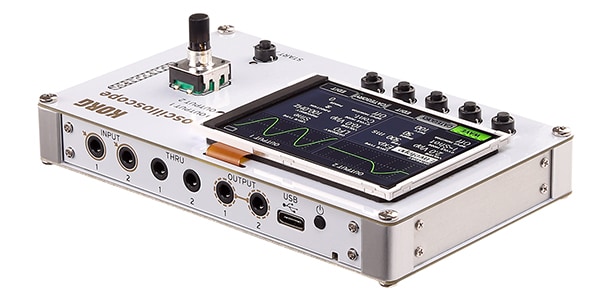

NTS-2 oscilloscope kit Features

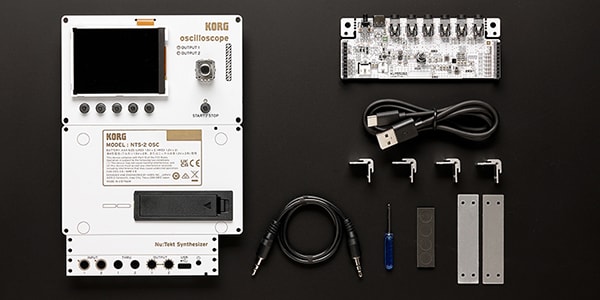

Like all Nu: Tekt products, the NTS-2 is an easy-to-assemble DIY synthesizer kit.
4-channel oscilloscope for easy verification and analysis of audio and CV signals
Has a real-time spectrum analyzer with a dedicated FFT (Fast Fourier Transform) mode
Dual wave generators for synth tool testing and creation
Tuner

NTS-2 oscilloscope kit specifications
Oscilloscope
Mode ：Single, Stereo (Input1L-INPUT1R, Input1L - Input2L, Input2L - Input2R), 4ch, XY (Lissajous, 2ch)
Vertical: 10mV to 5V/div, AC/DC MODE switchable
Horizontal: 50us to 1s/div
Trigger ： Auto, Rise, Fall, Single(rise), Single(fall)

FFT (spectrum analyzer)
Input : mono (1L, 1R, 2L, 2R)
Frequency range: 20Hz to 20kHz

Function generator
Frequency types
sine, square, triangle, saw, noise, pulse, envelope
Frequency range
1Hz to 10kHz, Hz/NOTE mode switchable,
[1ms to 10s,sec/BPM switchable(pulse, envelope mode)
Output level: 10Vpp max, V/dB mode switchable

Tuner
Display indication: Needle, Meter
Input： Mono, Stereo (Input1L-Input1R, Input1L-Input2L)
Calibration: 410-480Hz

Input: Mono, Stereo (Input1L-Input1R, Input1L-Input2L)
Input： 3.5mm Stereo x2, ±10V max

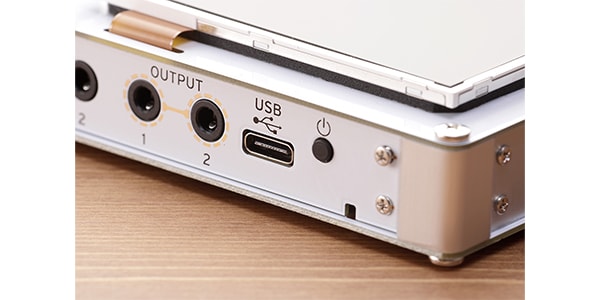

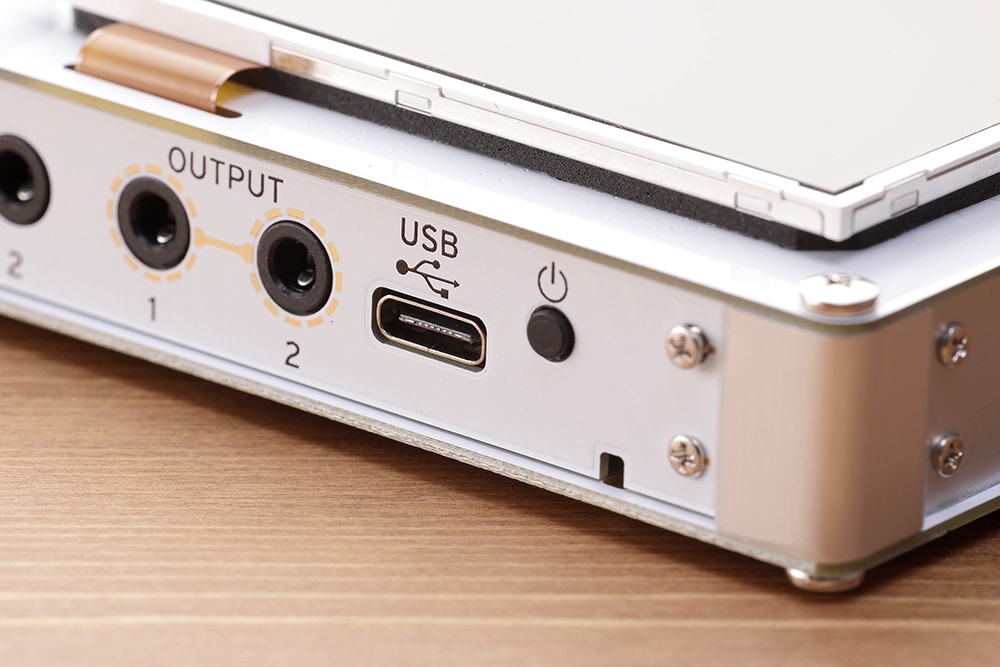

Through Output： 3.5mm Stereo x2
Output： 3.5mm Mono x2, ±5V max

Power Supply
2 AAA batteries (2 hours)
USB type-C (2.0, 500mA max)

Dimensions (W x D x H) / Weight
12.9 x 7.8 x 3.9 cm / 130g without batteries

Accessories: Sticker, side plate for NTS-2
