ATOMOS / ZATO CONNECT

The monitor supports HDMI and USB UVC sources and can be used as a webcam source for conferencing software.

HDMIUSB UVC source-compatible monitor

Operating environment
■Ambient operating temperature: 0-40°C (32-86°F) *No condensation.

[Structure] ■Casing material: ABS plastic
Housing material: ABS plastic
Cooling: Natural cooling (fanless)
Tally lamp: incorporated on the rear panel
Touch screen function: Supported
Power button: Main power on/off and screen lock on/off

【Monitor】】】Touch-screen
■Touch screen:
SuperAtom IPS panel (capacitive touch)
■Screen size: 5.2 inches
■Screen resolution: 1920 x 1080
■Viewing angles:
Vertical: 178°Vertical: 178°Lateral: 178
Left/Right: 178° (left/right)
PPI: 427
Color depth: 10-bit (8+2 FRC)
■Backlight: Edge
Maximum brightness: 1000 nits
Color temperature: D65
Other changes to D93, etc., and fine-tuning of color temperature are not supported.
Color gamut: Rec 709
Calibration Support: Atomos Calibrator supported
It requires an ATOMOS USB serial cable and Calibrate ColorChecker Display Pro/ColorChecker Display Plus or Xrite i1 Display Pro/ Plus.

Video Input】 【Video Input

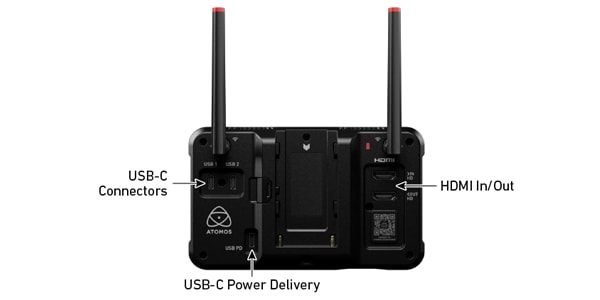

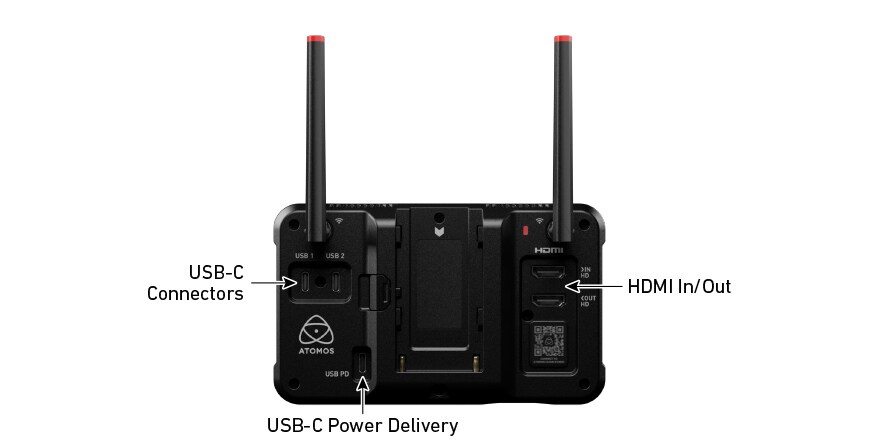

HDMI: 1Xhdmi (1.4) to HD60p supported
USB1 terminal: Webcam to HD60p supported
HDCP copy protection: Not supported

File Name
Normal: Unit Name+Date+Time

Video output】】HDMI：1xHDMI
■HDMI: 1xHDMI(1.4) to HD60p supported
■Network: Ethernet
Use the USB-C to Ethernet adapter included with the USB2 terminal.
USB UVC/Webcam output is disabled when using *.

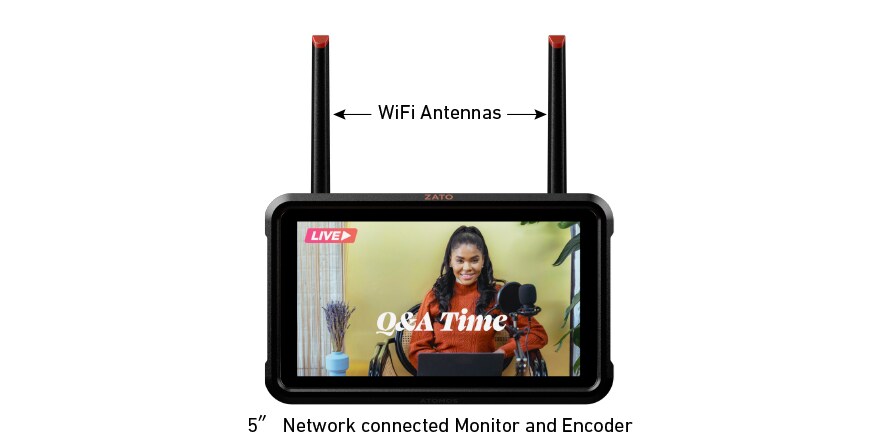

Wi-Fi: Wi-Fi 5
USB HOST： USB Webcam
■ATOMOS Cloud:
Connect to Atomos Cloud Studio service

Web Streaming】】
USB UVC: Supported
Output up to ~HD30p from USB2 terminal
■Custom RTMP streaming distribution:
Supported via Atomos Cloud Studio

Audio Input/Output
Audio quality: 16bit/48kHz
■Audio codecs:
PCM (input/output), AAC (streaming, recording)
HDMI: 2ch (depends on input signal)

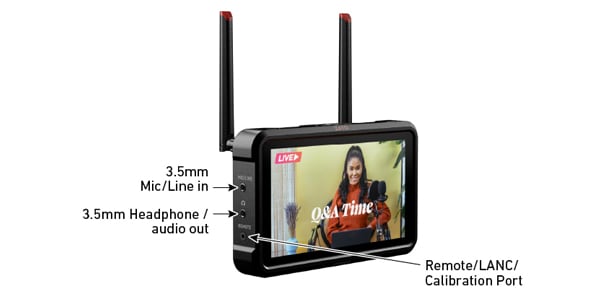

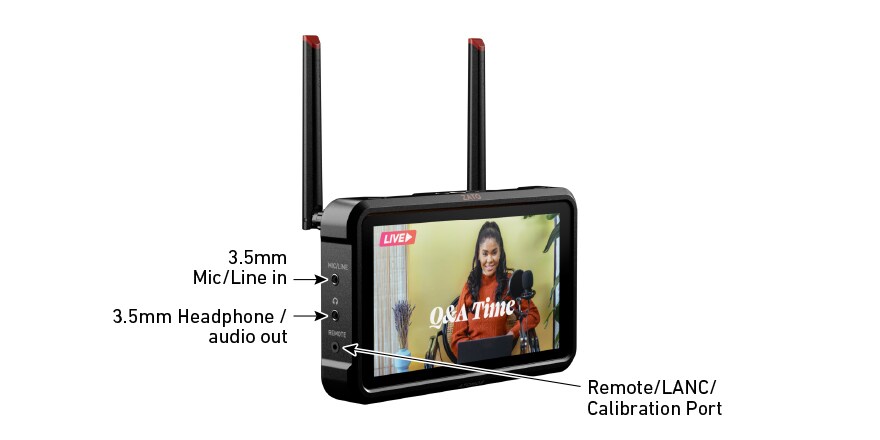

Analog audio input: 3.5mm jack
Headphone output: 3.5mm jack

Power supply】】
Supported input voltage: DC 6.2 to 16.8 V
Power consumption: 10W
Compatible battery: ATOMOS NPF L series
Battery voltage: 7.2 V
■Battery run time:
5200mAh - up to approx. 6 hours (HDp60 screen display and recording. Brightness 50%)
7800mAh - up to approx. 9 hours (HDp60 screen display and recording. Brightness 50%)
DC input:
Connect optional battery eliminator and AC adapter (ATOMPWR012)
D-tap:
Connect the optional battery eliminator and D-tap to the DC cable.
USB:
USB-C PD power supply compatible

Specifications
Size: 151 x 91.5 x 29.5 mm, 245 g
■Screw holes for mounting:
Top: 1/4" screw mount x1
Bottom：1/4 inch screw mount x1
