ATOMOS / Ninja V ＋

5" HDR monitor recorder with 8K RAW recording, capable of recording and shooting up to 8Kp30 and 4Kp120 in Apple ProRes RAW.

8K RAW recording 5-inch HDR monitor recorder

Housing Structure
Housing material: Aluminum alloy & ABS plastic
Cooling mechanism: Has
Tally lamp： Has a lamp on the back (lights up when recording)
AtomX expansion slots: Has

Power supply
Input voltage (battery): 6.2V-16.8V
Operating power: 5.8V-7.2V
Compatible battery: ATOMOS NPF L series
■Battery operating time: 　　　　　　
5200mAh approx. 2 hours (4Kp60 screen display and recording)
7800mAh approx. 3 hours (4Kp60 screen display and recording)
DC input: 3 using the supplied battery eliminator / AC adapter

【Display】.

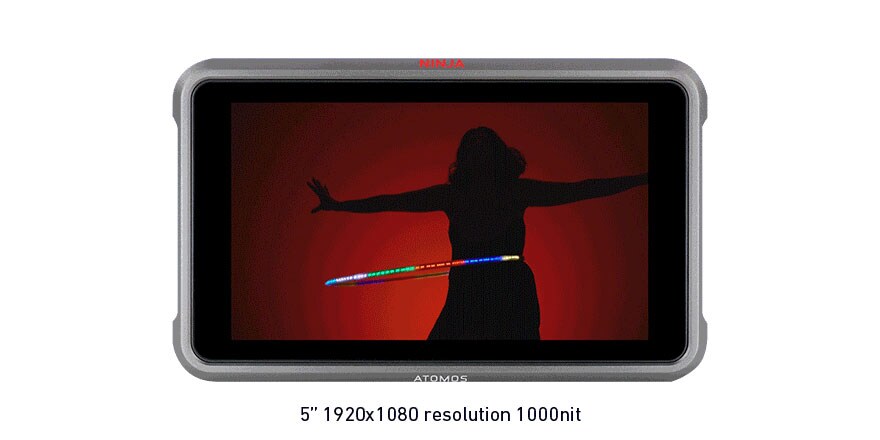

■Touch screen: Super ATOM-IPS LCD panel (capacitive)
■Screen Size: 5.2
■Screen resolution/PPI: 1920 x 1080/427
■Aspect Ratio (video display): 16:9
■Color gamut: Rec709
Maximum color depth: 10 bits (8+2 FRC)
■Backlight: Edge-lit system

HDR Technology
AtomHDR Technology: Log to Native/Rec709/3D LUT/HLG/PQ
3D LUT support: Display/Preview/Loop out
HDR Monitoring Technology: HLG and PQ
HDR output conversion: Log/HDR to HLG/PQ/ Dolby Vision
HDR Monitoring (Gamma):
Sony SLog/SLog2/SLog3, Canon CLog/CLog2 /Clog3t
Arri Log CEI160/LogCEI200/LogCEI250/LogCEI320/LogCEI400/LogCEI500/LogCEI640 /LogCEI800 /LogCEI1000/LogCEI1280 /LogCEI1600, JVC JLog1
Panasonic Vlog, Red LogFilm/Log3G10/Log3G12
FujiFilm Flog, PQ (HDR10), HLG, Nikon N-Log
HDR Monitoring (Gamut)
BT2020, DCI P3, PDCI p3 65
Sony SGamut/SGamut3/SGamut3.cine
Canon Cinema/DCI P3/DCI P3+ /BT2020
Panasonic V Gamut, Arri Alexa Wide Gamut, Rec709, JVC
LS300, Red DragonColor/DragonColor2/RedColor2/RedColor3 /RedColor4 /RedWideGamut

Video Input】】

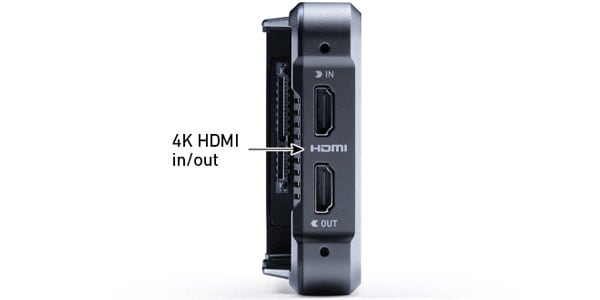

HDMI: HDMI(2.0)×1 4Kp60
HDMI RAW: Supported
SDI: 12G-SDI x 2 (backward compatible)
With an optional AtomX SDI module
■SDI RAW:
Supported: Sony FS700, FS5, FS7 with firmware 10.71 or later
*SDI RAW paid activation required
Signal (camera dependent):
Uncompressed 10-bit or 8-bit 422
■LTC (recording mode only):
Wireless RF connection

Video output
HDMI: HDMI (2.0) x 1 4Kp60
SDI: 12G-SDI x 2 (backward compatible) with optional AtomX SDI module
Level A or Level B selectable
■Signal:
Uncompressed 10bit or 8bit422 (depends on playback file)
■Video signal conversion:
HDMI to SDI/SDI to HDMI
Video and RAW* input to video output supported
*Cross-conversion function from RAW requires SDI RAW paid activation

Audio Input/Output (48kHz PCM Audio)
Audio quality/format: 24/48Khz/PCM
HDMI：8ch 24bit input device dependent
SDI：12ch 24bit input device dependent
Analog audio input：3.5mm 2ch
Headphone output: 3.5mm 2ch

Supported codec resolution and frame rate (recording/playback)
Supported resolution/frame rate: 2
24/48Khz8K RAW: Max. 30p only via HDMI
6K RAW: HDMI and SDI up to 30p only (camera dependent)
(Camera-dependent HDMI 5.9K and SDI 5.7K supported)
4K DCI: 23.98/24/25/29.97/30/50/59.94/60p
4K UHD: 23.98/24/25/29.97/30/50/59.94/60p-HFR 100/120
2K DCI: 23.98/24/25/29.97/30/50/59.94/60p/SONY FX9 RAW up to 2K 180p
1080p:23.98/24/25/29.9/30/50/59.94/60/100/120p
1080i: 50/59.94/60i
720p:50/59.94/60p
PsF Converted to PsF-P, PsF looped out / PCM
■Anamorphic: 3.5K: RAW up to 60p (supported cameras only)
■Apple ProRes Raw: ProRes Raw HQ, ProRes Raw supported
Apple ProRes/ProRes LT, 422, HQ supported
Avid DNx:
AVID DNx: AVID DNxHR HQX. HQ, SQ, LB
HQ, SQ, LB *Codec activation for the free version is required.
H.265: Supported *HQ mode recording only

Playback
■Playlist/Genlock/LTC:
Playlist: Supported/Genlock: Not supported/LTC: Not supported
Loop:
Loop: supported (with in/out markers)
Apple ProRes Raw: Yes
Apple ProRes Raw: Yes, Linear PCM audio is supported
■Avid DNx:
Linear PCM audio supported
Codec activation of the free version is required.
H.265: Supported

Recording functions and recording media
Pre-roll recording:
(HD 8 sec, 4K 2 sec) Not available in RAW
Time-lapse recording: Supported
Media format: Master Caddy II/SSDmini
■File Name:
File names: Automatically numbered and named for each scene, shot, and take.
■Compatible video editing software:
All non-linear editing applications that save files with the. MOV extension and support Apple ProRes, ProRes RAW, and Avid DNxHDR / HD

[On-screen tools
Scope: Luminance waveform/RGB parade/vector scope
Magnification: Zoom 1:1 / Zoom x2
■Focus peaking:
Select Color / Threshold setting / Color / Monochrome / Edge only
Force color: Scale adjustable
Zebra: Adjustable
■Fractional color channel: Blue only
Tag Edit Marker Cut: Possible in playback mode
■Cine frame guide:
2.4:1 / 2.35:1 / 1.9:1 / 1.85:1 / 4:3
Social frame guide: 9:16 / 1:1 / 1.91:1 / 4:5
Safety Areas: Actions and Graphics
Grid markers: 9 grids
■Anamorphic de-squeeze:
1.25x/1.33x/1.5x/1.8x/2x
Display Flip: Invert only
3DLUT 50/50: Preview available on screen

Timecode】】
HDMI: Supported
SDI: Supported
Time: Supported
Wireless RF:
Supported with AtomX Sync module (sold separately)
Bluetooth LE:
Supported with AtomX Sync module (sold separately)

Onboard Processing
■Pulldown elimination:
24/25/30pSF>24/25/30p (2:2 pull-down)
60i>24p(3:2 pull-down)
■4K UHD to HD downscaling:
Possible (loop out and playback)
DCI Crop: Possible (loop out and playback)


Mass】】
Housing material: Aluminum alloy & ABS plastic
■Mounting screw holes:
Anti-rotation 3/8-16 screw holes
1/4-20 screw mounting adapter incorporated one each on top and bottom
SIZE：W151×H:91.5×D:31（mm)
Weight: Main body only: 360g
