TK AUDIO / Transceiver 2

This insert station enables seamless integration between recording equipment and musical instruments. It's designed for use in both recording and stage productions.

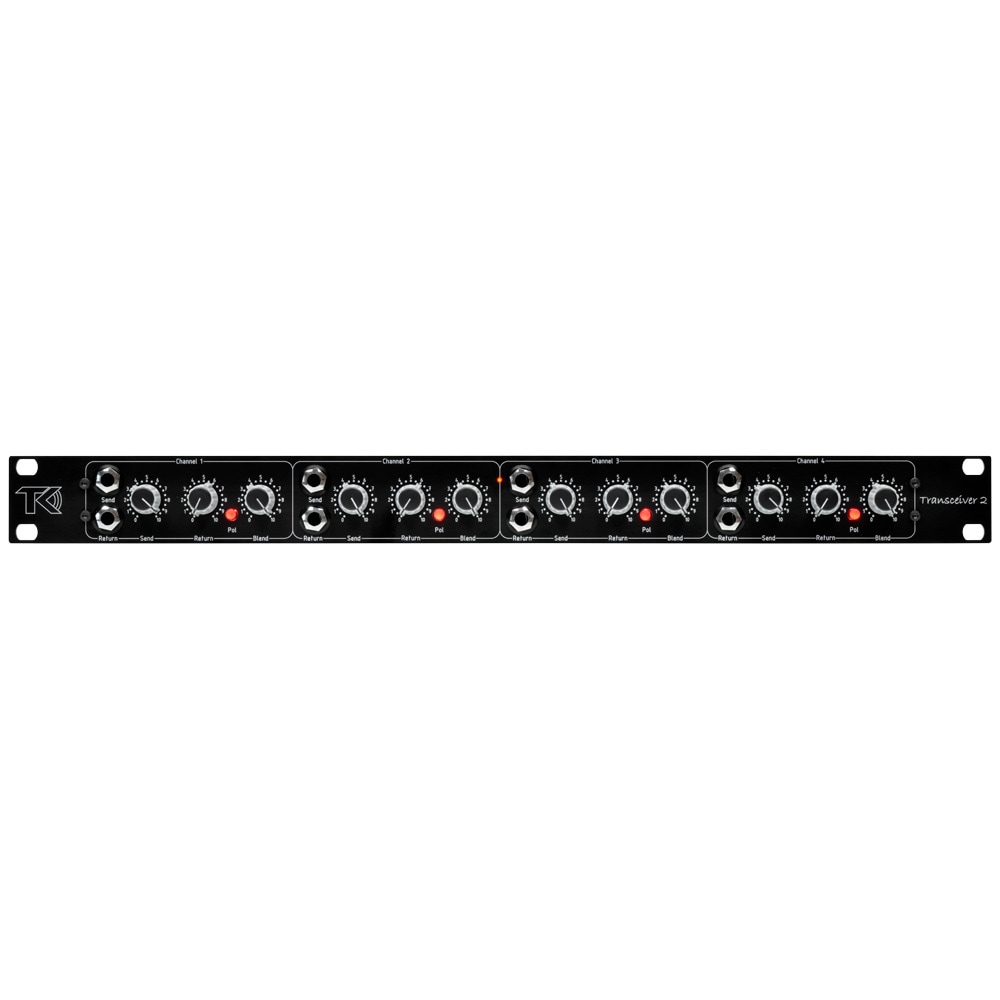

The Transceiver 2 is a 4-channel insert station.

In short, its main function is to convert balanced signals to unbalanced signals and then back to unbalanced signals without compromising signal quality.

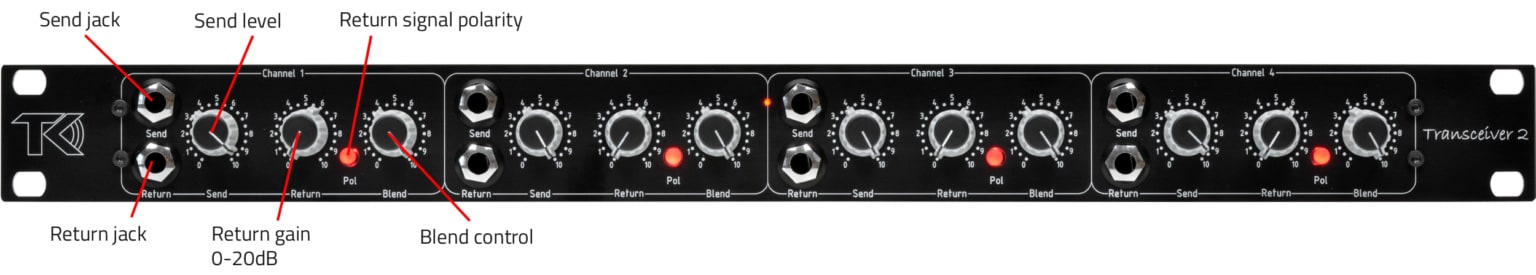

Each channel has send level, return gain control, return polarity switch, and blend control. The blend function, newly added from the original Transceiver, allows you to blend and control the wet signal of inserted effects.

The Transceiver 2 features a transformerless balanced design for the best possible signal processing, flat frequency response, low harmonic distortion, and low noise.

■Product specifications

Max input balanced: +27dBu

Max unbalanced send level: +21dBu

Max return input level: +21dB

Return gain: 0-20dB

Return input impedance: 1Mohm

Max balanced output: +27dBu



Send: TRS jack

Send level: 0 to full (in 41 steps)

Return: TRS jack

Return gain: 0 to 20dB (in 41 steps)

Polarity: flips the polarity of the return signal

Blend control: from dry to wet (in 41 steps)

Regulated, internal power supply with a toroidal transformer

Selectable between 115 and 230V

Power consumption: 12VA
