MEDIAEDGE / VPUS-SS1

The long-awaited 4K model has arrived in the popular Video Pro series! This is a high-quality 4K SDI signal distributor (splitter).

■Power supply:
AC adapter power supply (USB power supply not possible)
AC100-240V/DC12V maximum 246mA
■Maximum power consumption:
3.7W (including AC adapter)
■Operating temperature and humidity range: 0-50°C, 20-80% RH *No condensation
■Storage temperature and humidity range: -20-60°C, 5-90% RH *No condensation

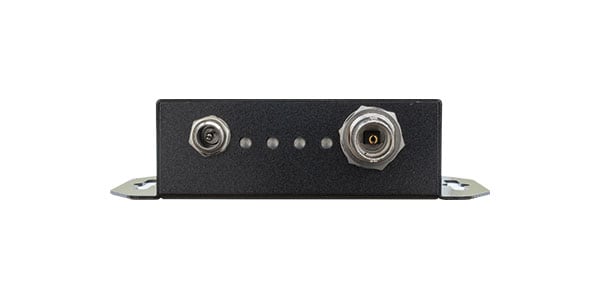

■Input terminal: SDI (75Ω 12G-SDI compatible BNC connector) x 1

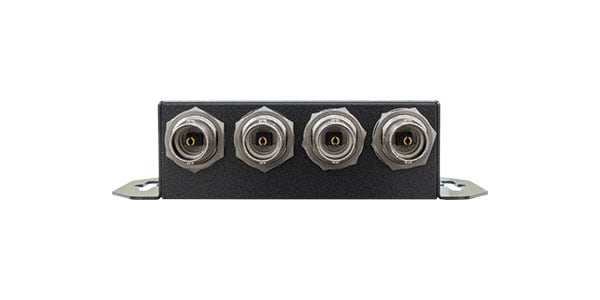

■Output terminal: SDI (75Ω 12G-SDI compatible BNC connector) x 4
■SDI input: 12G-SDI (SMPTE ST2082-1/ST2082-10)
6G-SDI (SMPTE ST2081-10)
3G-SDI Level A Direct image format mapping (SMPTE 425M)
3G-SDI Level B-DL SMPTE ST372 Dual Link mapping (SMPTE 425M)
3G-SDI Level B-DS 2xSMPTE ST292-1 (HD-SDI) dual-stream mapping (SMPTE 425M)
HD-SDI (SMPTE 292M)
SD-SDI (SMPTE 259M)
DVB-AES (EN50083-9)
■SDI through output:
Active through (equalizer/reclock always enabled) x 4
■USB connector: USB Mini-B x 1
■Input/output delay: None
■Recommended maximum SDI cable length:
12G-SDI (L-5.5CUHD) Pathological signal: 70m/Color bar signal: 80m
*For L-5CFB, Pathological/Color bar signal: 60m
6G-SDI (L-5.5CUHD) Pathological signal: 90m/Color bar signal: 100m
3G-SDI (L-5CFB) Pathological signal: 150m/Color bar signal: 170m
HD-SDI (L-5CFB) Pathological signal: 220m/Color bar signal: 250m
SD-SDI/DVB-ASI (L-5CFB) Pathological signal: 400m/Color bar signal: 450m
*Cable used during measurement The cables used are L-5.5CUHD/CANARE, which supports 12G-SD, and L-5CFB/CANARE, which supports 3G/HD-SDI.
*Based on the results of connecting our products to each other with long cables and connecting them to a signal generator and measuring device with 1m cables in front and behind (Long setting).
*Pathological (check field) signals are test signals that evaluate analog performance and PLL.
*The maximum cable length varies greatly depending on the equipment used, the performance and quality of the cable, so please check with the actual device.
You can apply to borrow an evaluation device from the manufacturer's website.
SDI compatible formats:
720x480i59.94, 720x576i50, DVB-ASI
1280x720p59.94/p60/p50, 1920x1080i59.94/i60/i50,
1920x1080p23.98/p24/p25/p29.97/p30
<3G-SDI Level A> 1920x1080p59.94/p60/p50
<3G-SDI Level B-DL> 1920x1080p59.94/p60/p50
<3G-SDI Level B-DS> Same as HD-SDI
<6G-SDI> 3840x2160p23.98/p24/p25/p29.97/p30, 4096x2160p23.98/p24/p25/p29.97/p30
＜12G-SDI＞ 3840x2160p59/p60/p50, 4096x2160 p59/p60/p50
■SIZE: 104(W)x63.6(D)x26(H)mm
*Connector not included, bracket included, bracket cannot be removed
■Weight: 208g
