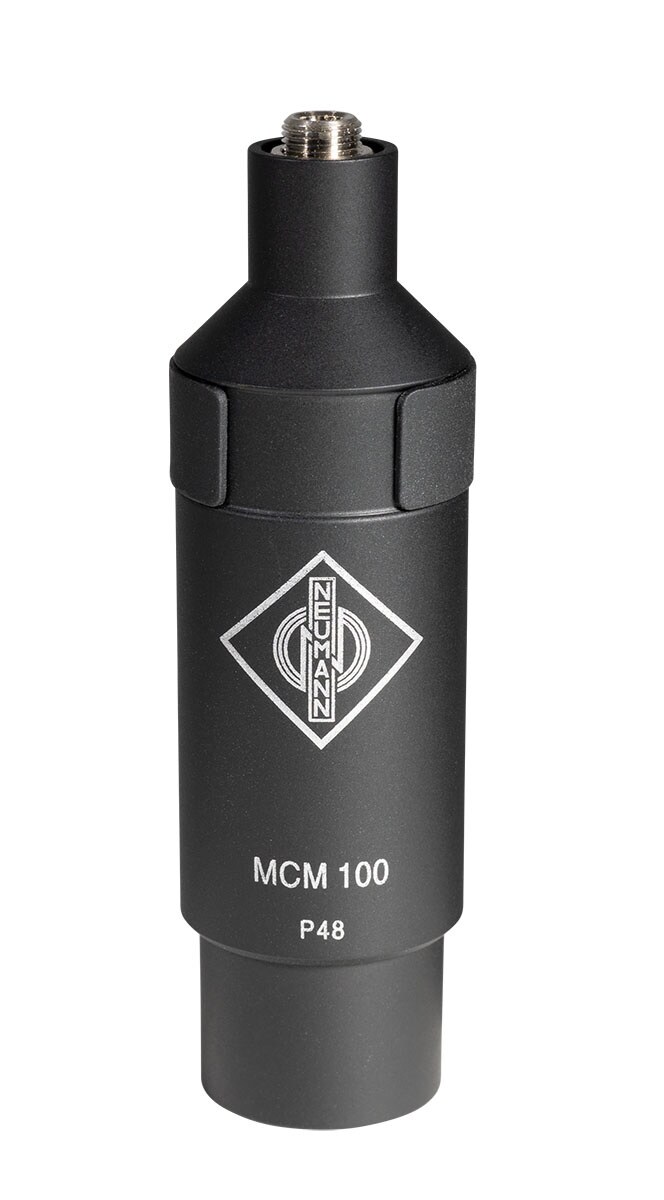

NEUMANN / MCM Output Stage

Phantom adapter for wired miniature clip microphone systems. Input is a 3.5mm mini-jack, and output is a 3-pin XLR.

? Neumann Electret Technology Offers: A New Standard for Sound Evaluation by Installing Small Microphones Nearby
? 153 dB Max SPL? One capsule for loud and sensitive instruments
153 dB Max SPL Compatible with most bodypack transmitters (3.5mm jack/MicroDot/Lemo/4-pin mini XLR)
Hand-assembled in Germany Hand-assembled in Germany for superior tonal consistency
Hand-assembled in Germany for special tonal consistency. Flexible gooseneck connector avoids cable kinks
Flexible, rotatable gooseneck connectors prevent cable kinks. Full line of instrument-specific mounting solutions for gentle and secure microphone placement
Neumann's beautiful design and handling Neumann's beautiful design and ease of handling

■Specifications
Rated impedance 50Ω
Rated load impedance 1000Ω
Current consumption (P48, IEC 61938) 3.5 mA
Power supply 48 V ± 4 V (P48, IEC 61938)
Matching connector XLR 3 F
Weight 96 g
Diameter 22 mm
Length 77 mm
