Tiptop Audio / Buchla 258t Dual Oscillator

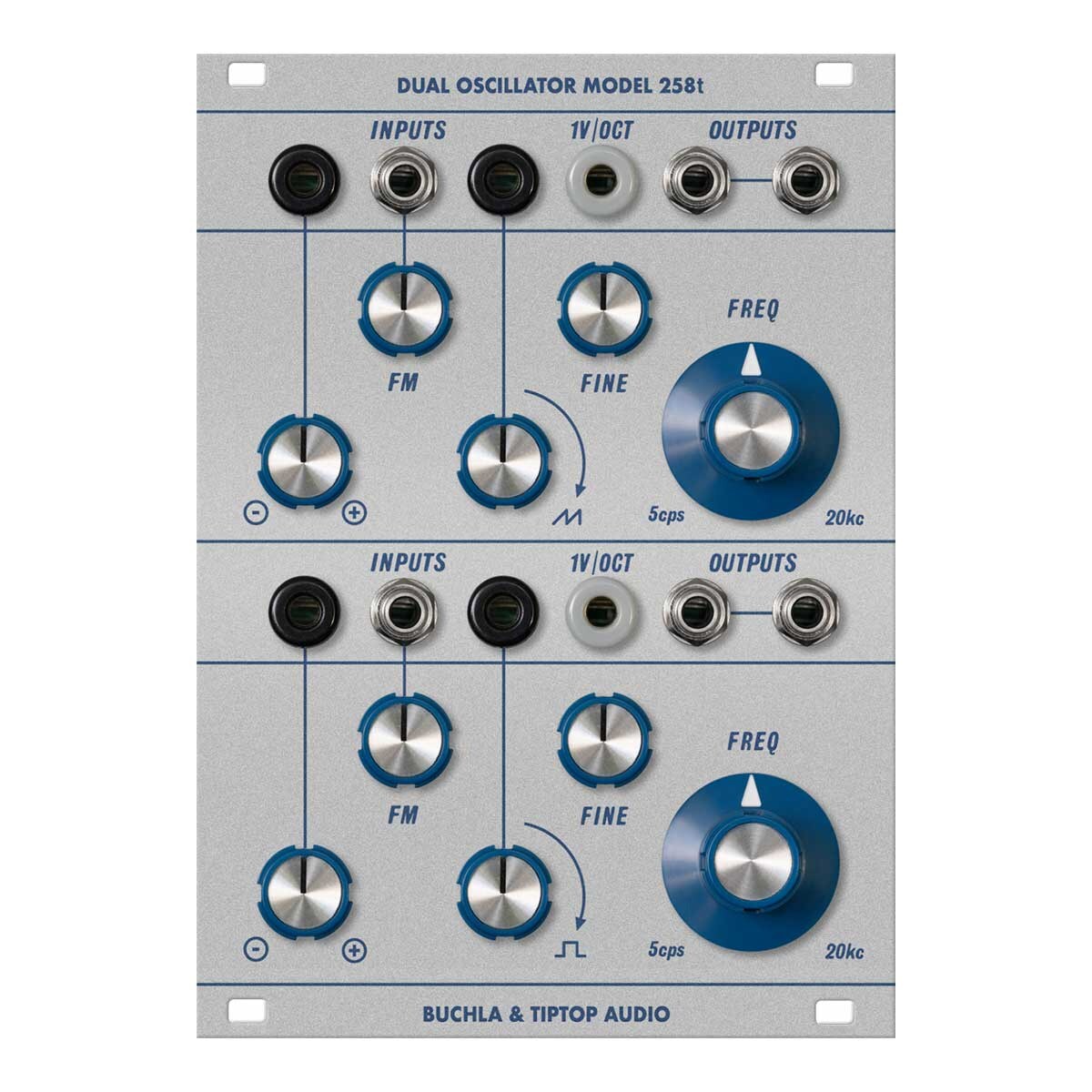

The Model 258t Dual Oscillator is a dual oscillator that outputs two independent continuously variable waveforms. The upper panel outputs a ""sine wave/sawtooth wave"" and the lower panel outputs a ""sine wave/square wave"" continuously variable waveform.

The Model 258t Dual Oscillator is a dual oscillator that outputs two independent continuously variable waveforms. The top panel outputs a ""sine wave/sawtooth wave"" and the bottom panel outputs a ""sine wave/square wave"" continuously variable waveform.

Both oscillators have the same controls and input/output jacks.

The oscillator waveform is controlled by the SHAPE knob, which is indicated by a curved arrow and a waveform icon. Turning the knob fully counterclockwise produces a sine wave, and turning it clockwise produces a sawtooth wave or a square wave. This control can also be controlled by an external CV signal.

The pitch is tuned with the FREQ and FINE knobs, and precise pitch control is possible by inputting an external 1V/Oct voltage.

The FM input with attenuator allows you to generate harmonically rich sounds through frequency modulation. Since there are two audio outputs, you can use FM from one to the other and vice versa to create complex sounds.

[About Buchla & Tiptop Audio ""Eurorack 200 Series""]
The ""Eurorack 200"" series was born from a collaboration between Tiptop Audio and the legendary West Coast synthesizer manufacturer ""Buchla"". The ""200 Series"", a very rare modular synthesizer developed about half a century ago, has been reproduced in Eurorack format. The Buchla module, the essence of West Coast style synthesis, is now available to many modern modular players. The Eurorack 200 series will bring a West Coast feel to your modular system.

Width: 18HP
Depth: 45mm
Current consumption:
+12V: 70mA
-12V: 40mA
