Tiptop Audio / MISO Black

Variations

MISO is a multi-purpose utility module for CV and audio synthesis.

■Overview

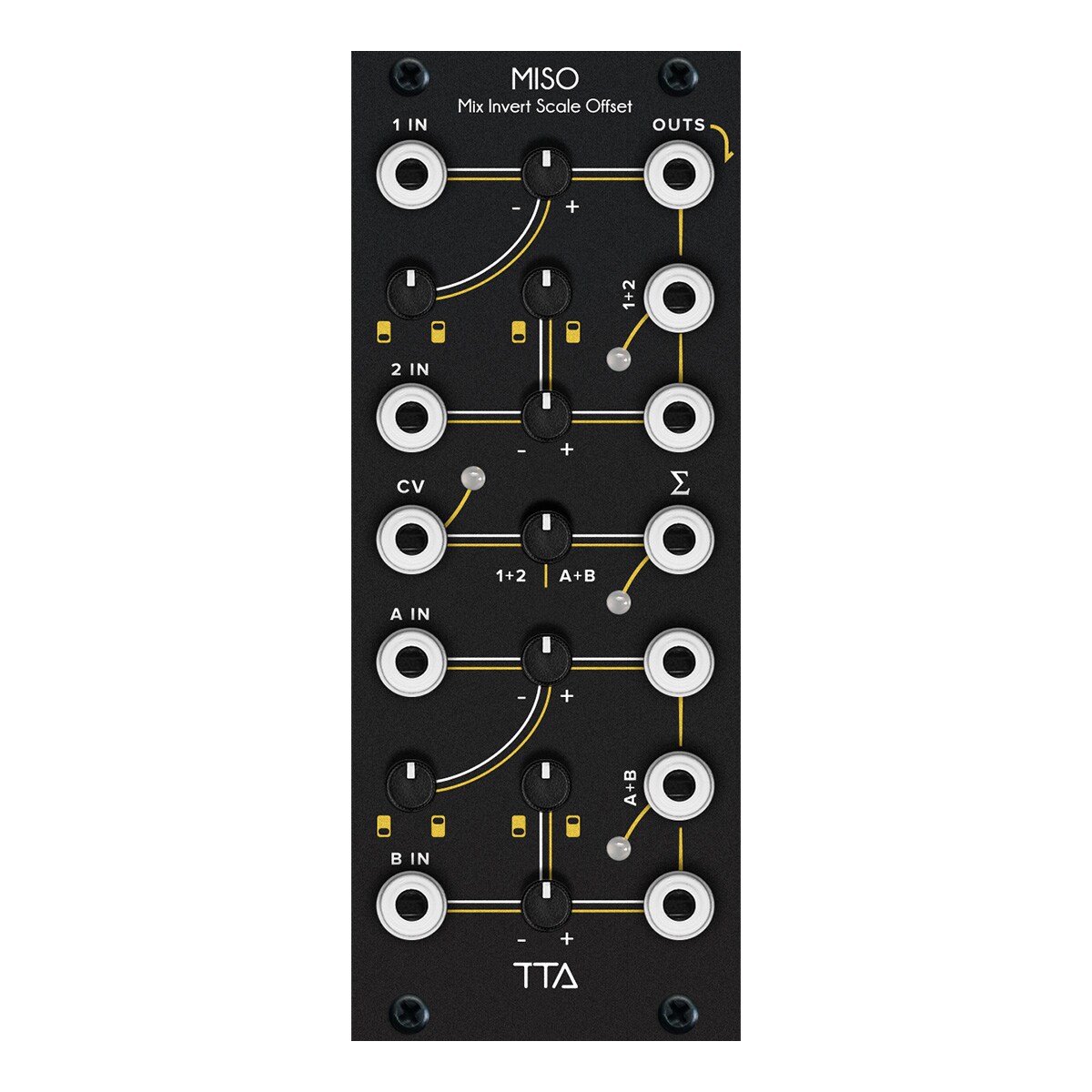

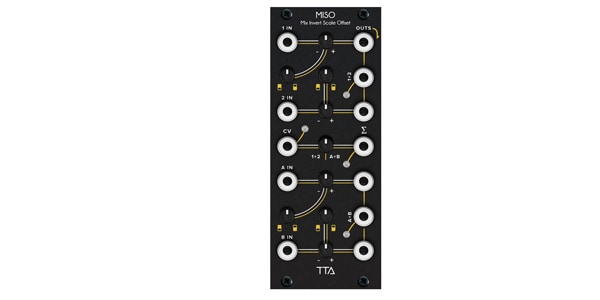

MISO is a multi-purpose utility module for CV and audio synthesis. It combines multiple CV tools into one module to create complex CVs at the output stage. The name comes from the four main functions (Mix, Invert, Scale, Offset) that this module has.

■Features
The two MISO sections (1/2 IN and A/B IN) on the top and bottom of MISO have the same functions. Each section has two inputs that can be used to mix the signals, polarity/shape inversion, scale magnitude, and offset voltage. Each function can be used independently or simultaneously with the total shape summed to the mix output.

In the center of the module is a precise, smoothly changing linear CV crossfader that mixes the output of the upper and lower MISO sections evenly. Feed envelopes, LFOs, and sequences into MISO to create new shapes, then crossfade with CVs manually or using the center section to create even more complex shapes and CV animations. Crossfading the VCO waveforms and audio sample waveforms with CV creates even more interesting effects.

There are countless patches that use MISO to create unexpected effects. MISO is a new module that gives existing modular synthesizers incredible replay value, inspires creative exploration, and offers experimental mixing that is not bound by tradition.

Width: 10HP
Depth: 42mm
Current consumption:
+12V: 55mA
-12V: 55mA
