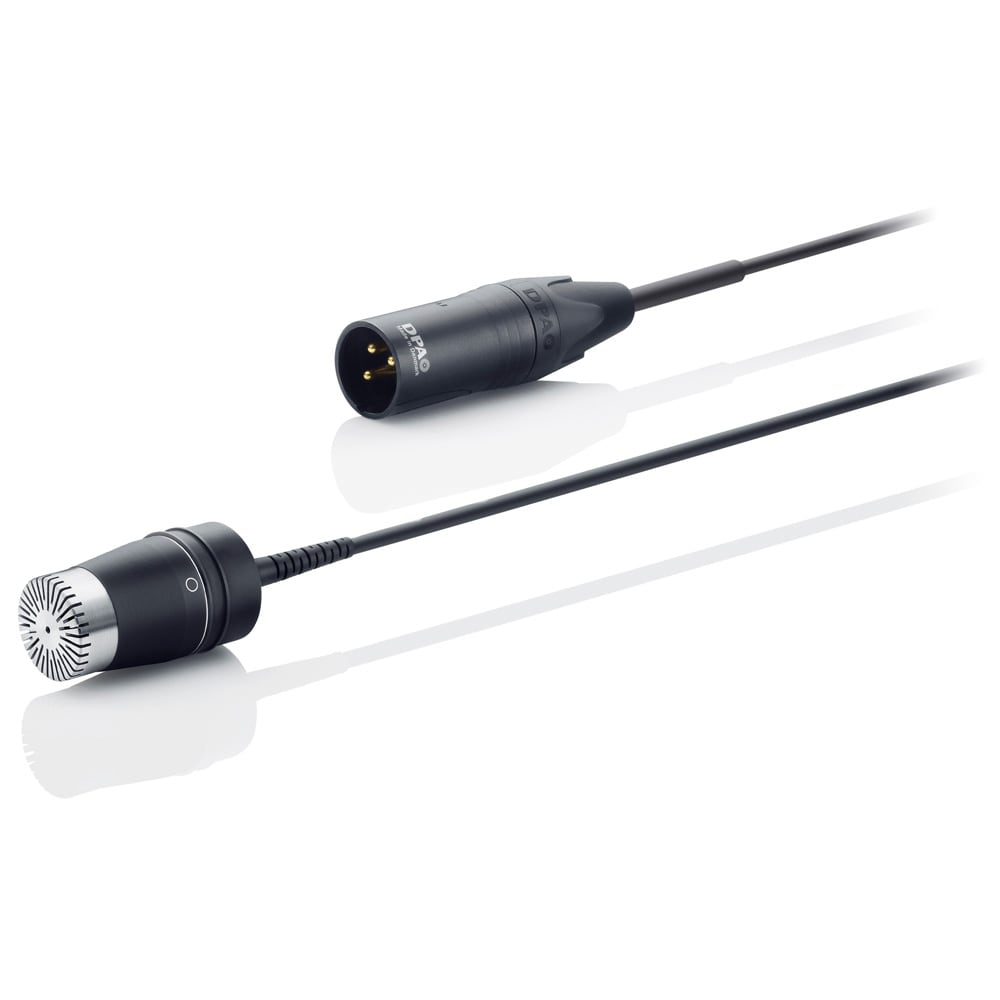

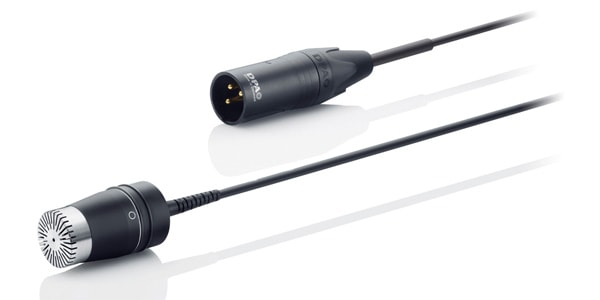

DPA / 4006ER

Omnidirectional microphone with clear sound quality. Rear cable specification. The shape of the microphone can be changed according to the purpose, so it can be used in a variety of situations.

Achieves flat frequency response and low noise floor.

Not only can it record close-up sound, but it can also record sound from a slightly distant source without changing the characteristics of the original sound.

Three types of grids (DD0251, DD0254, DD0297) are included, and an optional nose cone that makes the entire frequency range completely omnidirectional is available. It can be arranged to suit various programs.

Adopts a modular system that allows the microphone capsule and preamplifier to be replaced. The shape of the microphone can be changed to suit the application.

It can also be hung from the ceiling using the suspension shock mount (SM4000-C).

■Specifications

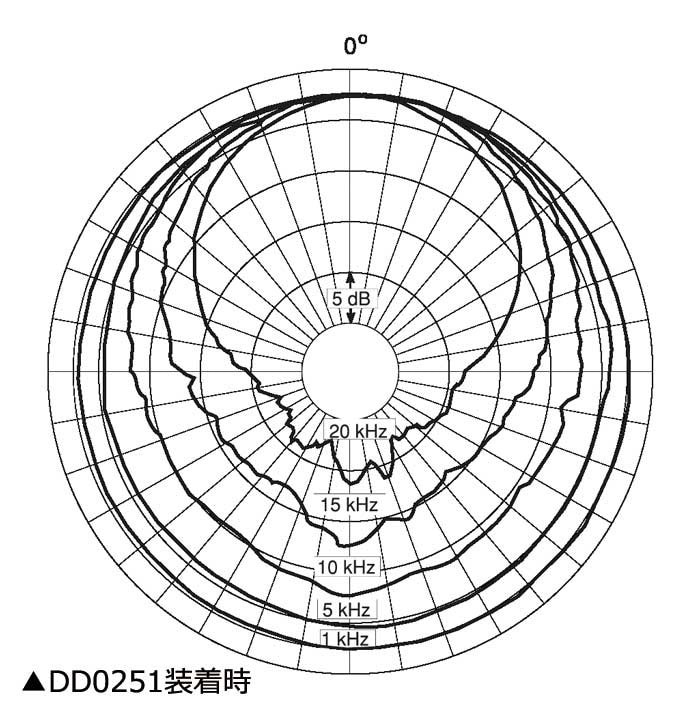

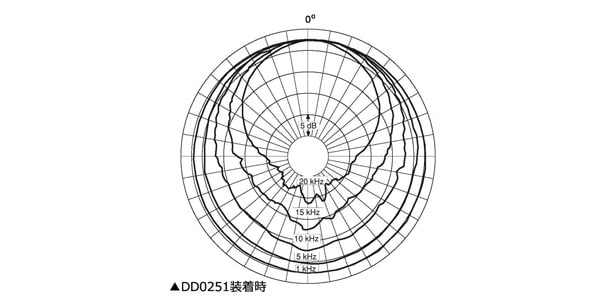

Directional characteristics: Omnidirectional
Cartridge: Prepolarized condenser type, φ12mm

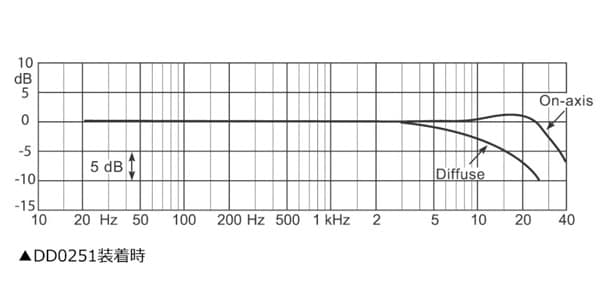

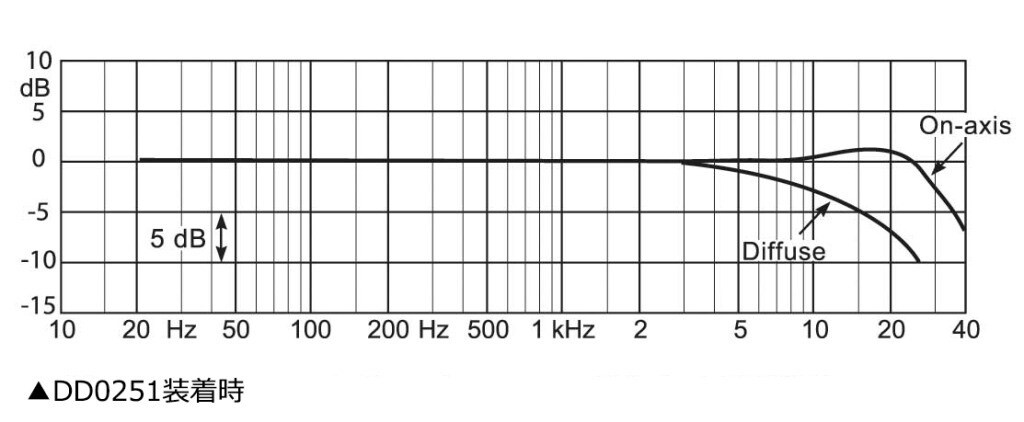

Frequency range (±2dB): 20Hz to 20kHz
Sensitivity (±2dB): -28dB re. 1V/Pa
Equivalent noise level (A-weighted): 15dB re. 20μPa
Total harmonic distortion (THD): 1% or less (132dB SPL)
Dynamic range: 117dB
Maximum sound pressure level: 132dB SPL
Impedance: 100Ω
Cable length: 3m *Can be extended up to 30m by special order
Maximum cable extension distance: 100m
Power supply: Phantom DC48V (± 4V)/3.5mA
Connector: XLR3 pin (male)
Dimensions and weight φ19×35mm, approx. 114g (including cable)

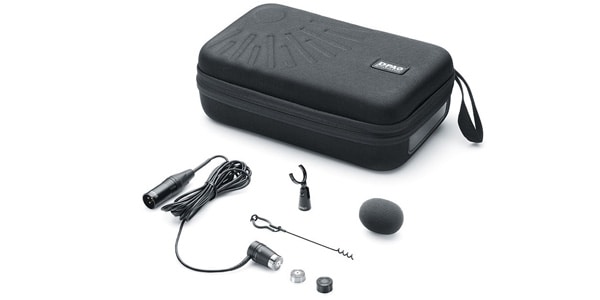

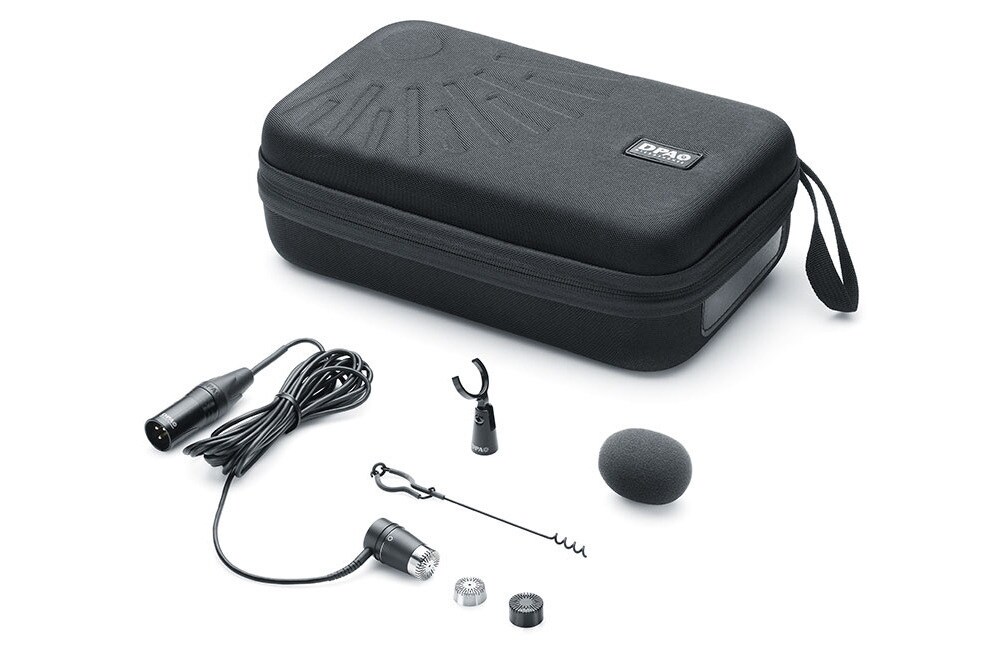

■Accessories
Microphone holder (MC4001) x 1
Windscreen (DUA0041) x 1
Suspension mount (SM4000-C) x 1
Free field grid (DD0251) x 1 *Installed at time of shipment
Close miking grid (DD0254) x 1
Diffuse field grid (DD0297) x 1
