Make Noise / X-Pan

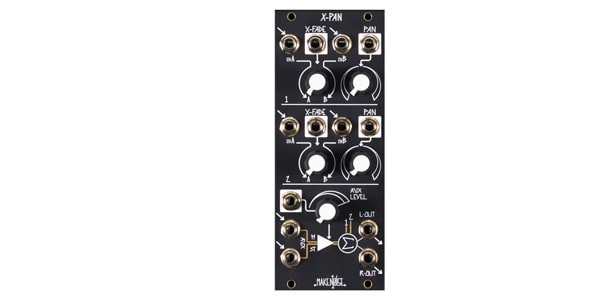

X-Pan is a 5-channel CV stereo mixer that can handle up to 5CH of CV pan/crossfade/mix using 10 VCAs.

X-PAN is a compact and powerful 5-channel CV stereo mixer with low noise/high headroom design. It is only 10 HP in size, but it can create complex panoramic audio images.

X-PAN is highly responsive to CV signals, so you can explore stereo sideband changes with crossfading and panning at audio rates.

It is also DC-coupled, so it can be used as a toolbox for processing and routing CV signals.

X-PAN consists of two full-featured channels and one simpler channel. The top two channels each have two audio inputs and CV crossfade and pan inputs, while the bottom third channel is a stereo Aux input with stereo VCA. All three channels are combined with a stereo SUM output.

Features

- All 5 signal inputs routed to dynamic stereo output

- 10 high quality VCA circuits in just 10hp

- Fully voltage controlled pan, crossfade and mixing

- High headroom, low noise circuitry to maintain signal integrity

- Crossfade and pan at audio rates, variable stereo sideband

- Aux stereo input controlled by stereo VCA with combo pot

- Works as part of a distributed mix console integrated into the whole system with Optomix, modDemix, Dynamix and RxMx

- Can also be used as a complex CV router due to DC coupling

Works well with QPAS, Morphagene

Width: 10HP

Depth: 45mm

Current consumption:

+12V : 145mA

-12V : 110mA
