Make Noise / XOH

XOH is a stereo mixer and headphone amplifier with two inputs and gain adjustment.

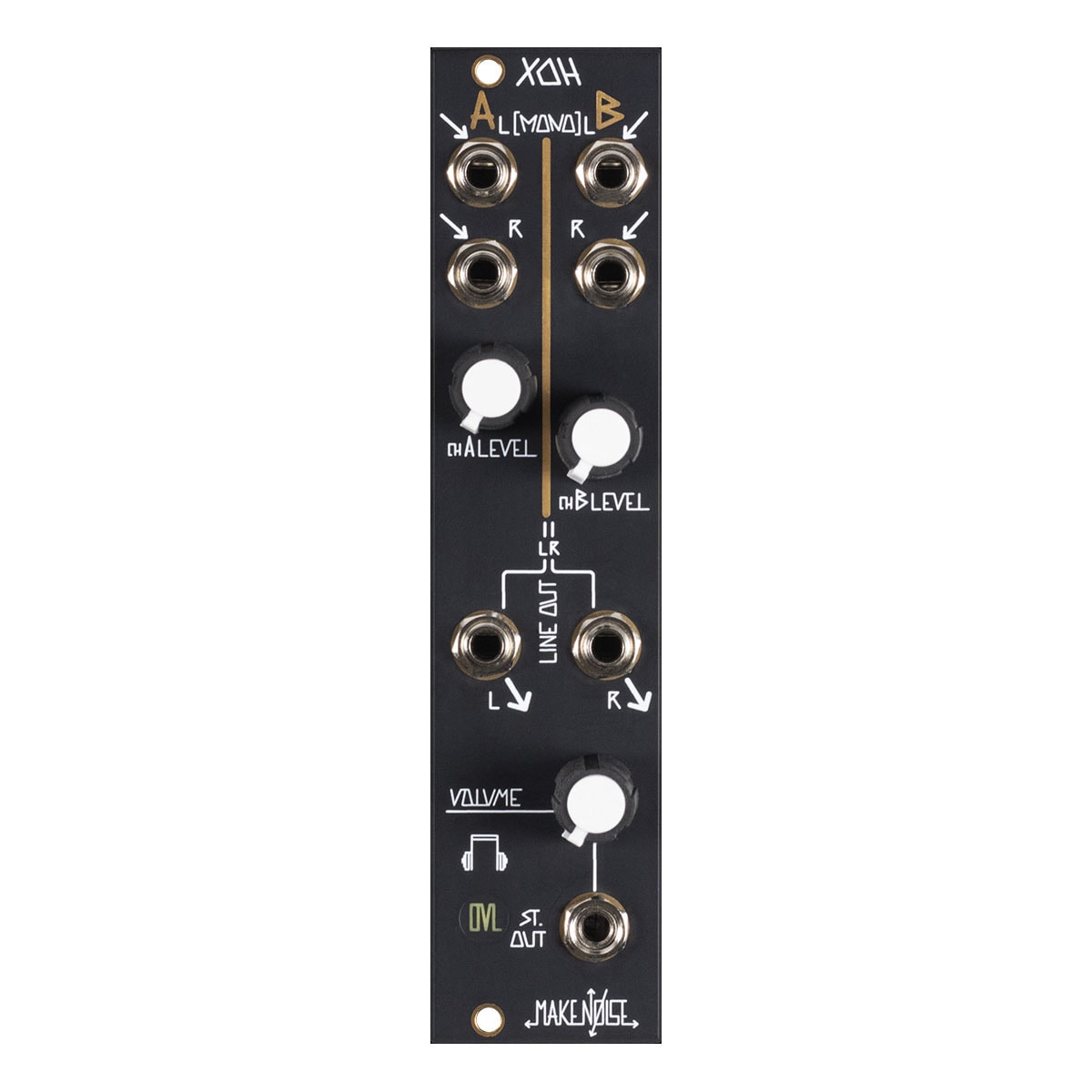

XOH (miX Out Headphone) is an output interface module with a stereo mixer and headphone amplifier for Eurorack modular synthesizers. It consists of two stereo input channels with independent level controls and two stereo outputs: line-level L/R outputs with independent unity gain and an ST. The two stereo outputs are a pair of line-level L/R outputs with independent unity gain and a TRS jack ST.

Ideal for stereo modules: Erbe-Verb, Morphagene, QPAS, X-PAN, Mimeophon
Two mono/stereo input channels, Ch A and Ch B
Has independent level controls for Ch A and Ch B
Two stereo outputs with A/B mix
L/R line-level outputs with independent unity gain
ST.OUT outputs on TRS jacks for headphone and line-level outputs with level control (equivalent to the line drive circuit used in the CV Bus case)
Soft limiter adjusts modular-level signals to line-level to protect your ears and line-level equipment

Width: 6HP
Depth: 24mm
Current consumption:
+12V : 40mA
-12V : 40mA
