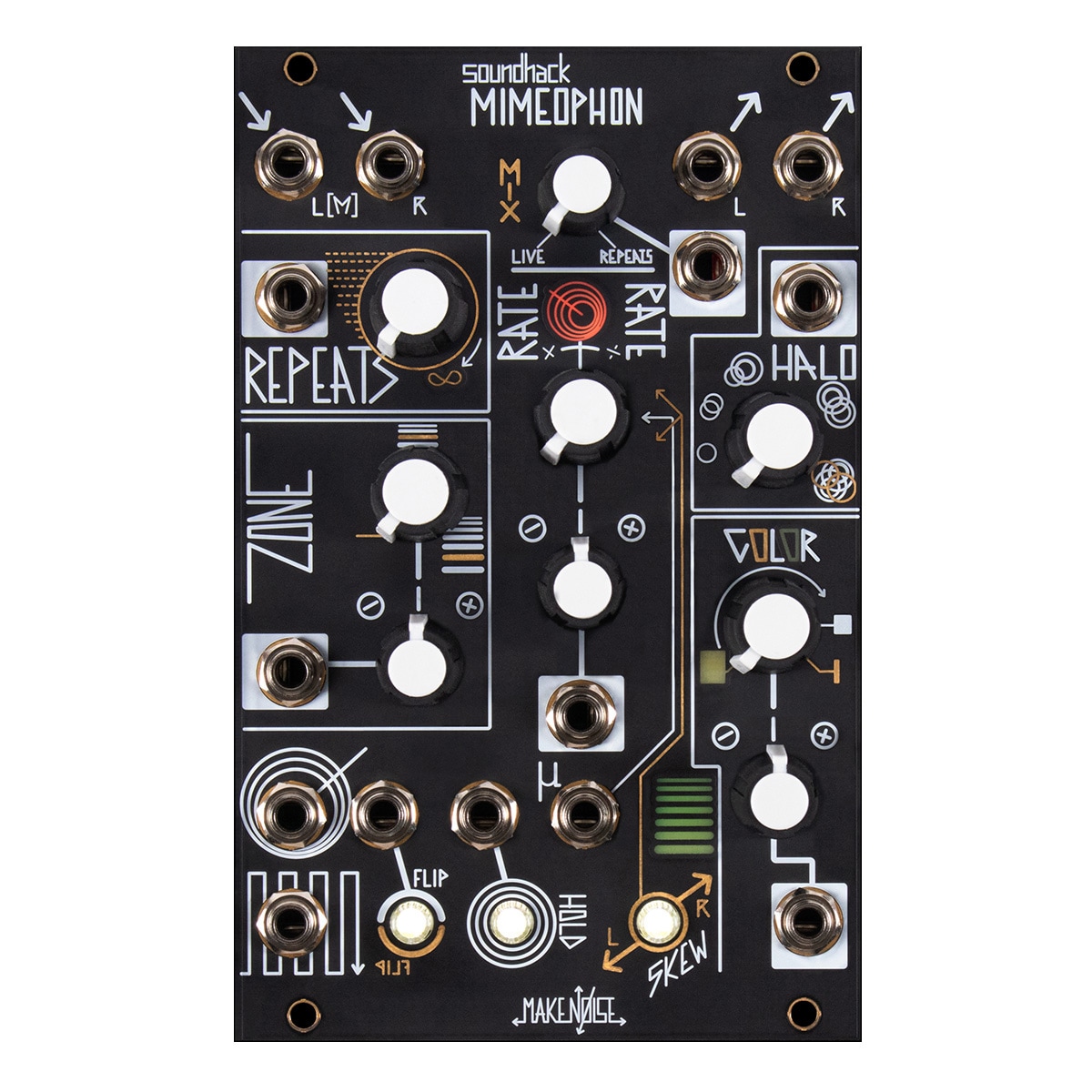

Make Noise / Mimeophon

The Mimeophone morphs between five modes to create a variety of stereo echo delays.

The Microphone is a stereo audio repeater that emulates any spectral response. It produces many echo/delay sounds, from the oil can echoes, warm BBDs, midrange crunch BBDs, tape echoes, crisp, clean delays, and hot-burning early digital delay lines. soundtrack programmer Tom Erbe was responsible for the coding, resulting in a collaboration between Make Noise and the soundtrack.

The name Mimeophon (from the Greek words mimeo (repeat/copy) and phone (sound)) is derived from various historical copying devices, most notably the "Mimeograph," a machine invented by Thomas Edison in the late 19th century to make large numbers of copies of printed material. Many visual artists in the 20th century used such machines to create repetitive composition visual collage style works, known as Xerox or copy art. The Mimeophon opens up similar possibilities in music. It can modulate and morph the time scale of repeating sounds, from very short micro-sounds to phrase lengths, and it can also color and spatialize repeating sounds.

Full stereo inputs and outputs.
Color-coded modulation algorithms: Karplus, Flange, Chorus, Echo, Looping, all morphable between algorithms
Rate continuously controls repeat frequency within a zone.
Skew repeats at different rates for left and right channels
μRate adds a Doppler modulation effect
Create tempo-sync, complex repeat patterns for Doppler-free modulation with Rate.
An infinite number of repetitions.
Halo controls the depth of stereo space.
Color controls feedback energy.
Rate output generates pulses at a skew tempo for synchronization within a modular system.
Zones can be inverted for reverse repeat playback
Hold sound for infinite loop non-destructive modulation
Fully CV controllable Time, Space, and Color modulation algorithms
Reasonable current consumption
Mimeophon is designed for musical applications and is not suitable for experimental use.

Width: 16 HP
Depth: 45mm
Current consumption:
+12V : 100mA
-12V : 10mA
