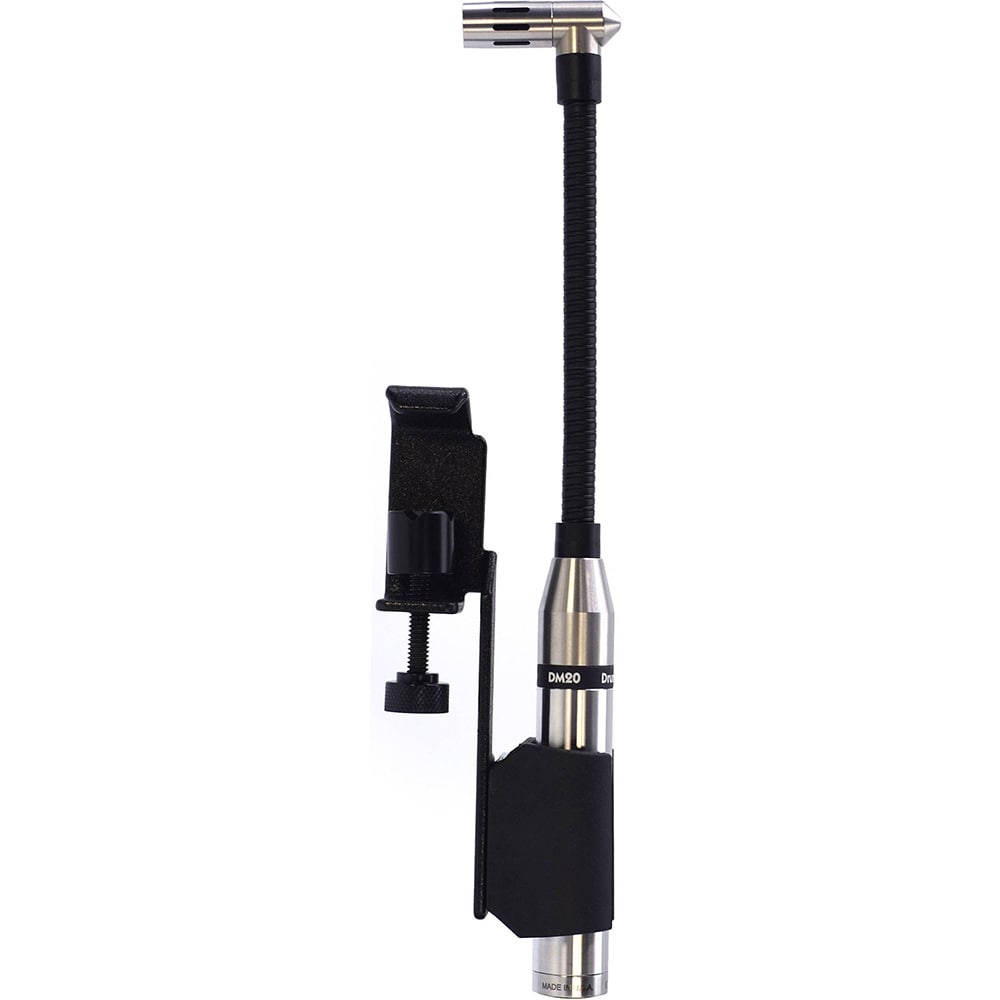

EARTHWORKS / DM20

This cardioid condenser microphone is designed for use in nearby microphone setups for drums, such as snares and toms, in live performance and recording environments.

Condenser microphone
For snare and tom
■Specifications
Frequency Response: 50Hz - 20kHz ±2dB @ 15cm
Directivity pattern: Cardioid (unidirectional)
Sensitivity: 8mV/Pa (-42dBV/Pa)
Power supply voltage: 24-48V phantom, 10mA
Maximum input level: 150dB SPL
S/N ratio: 74dB (A-weighted)
Output terminals: XLR (No. 2 hot)
Output Impedance: 200Ω balanced (pins 2 & 3)
Minimum Output Load: 1000Ω (pin 2 & 3)
Output Noise: 20 dB SPL equivalent (A-weighted)
Dimensions: 282mm x 22mm
Gooseneck length: 121mm
Weight: 250 g
