DPA / 6061-OC-U-F00

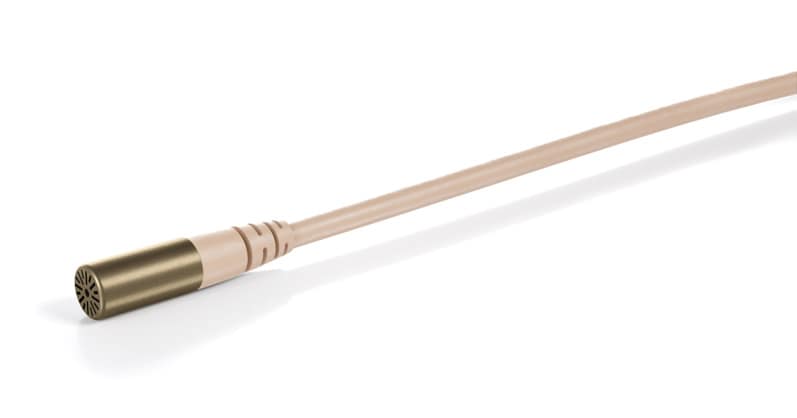

This is a high-quality lavalier microphone that is extremely small with a diameter of 3 mm, yet picks up sound clearly without distortion.

・Compared to the capsule of the conventional model (φ5mm), the capsule of the subminiature microphone is approximately 60% the size.

・Equipped with CORE technology, it provides distortion-free and transparent sound quality across the entire range. From whispering to screaming, it achieves a natural DPA sound with high clarity.

・One type of grid, boosting the 8kHz to 20kHz band by 4dB.

◆High durability that can withstand harsh scenes

・Water-repellent nano-coating is applied to the microphone body, and hermetic sealing is applied to the amplifier section, achieving high durability that meets the IP58 standard.

　Dustproof grade 5: No dust that would cause harmful effects can enter the interior.

Waterproof grade 8: Water will not enter the interior even if it is continuously submerged in water.

*Tests are conducted by DPA Microphones at the request of Force Technology, a third-party organization in Denmark.

・Diaphragm is double gold-plated.

・The microphone capsule and grid are made of metal with a PVD coating that is impact-resistant and highly abrasion-resistant.

・Uses a φ1.6mm microphone cable, just like the previous model. In addition to using highly durable Kevlar material, the connection part with the connector also comes with a cable relief to increase strength.

◆Excellent maintenance
・The grid can be removed for cleaning. It is equipped with a click mechanism that allows you to check that it is correctly attached when returning it to the microphone capsule.

・The microphone body can also be washed with water.

◆Wireless compatible
・Can also be used as a wireless microphone from various companies by using a wireless adapter sold separately. Adapters for major wireless systems such as Shure and Sennheiser are also available with direct attachment processing.

[Product Specifications]

Type: Lavalier microphone

Polar pattern: Omnidirectional

Cartridge: Prepolarized condenser type

Frequency range (±2dB): 40Hz-20kHz 4dB soft boost @8-20kHz

Sensitivity (±3dB@1kHz): -44dB re. 1V/Pa

Equivalent noise level (A-weighted): 26dB(A) re. 20μPa

Total harmonic distortion (THD): Less than 1% (128dB SPL peak)

Dynamic range: 102dB

Maximum sound pressure level: 144dB

Output impedance: MicroDot: 30-40Ω, DAD6001-BC: 100Ω

Cable extension distance: Up to 300m (when using DAD6001-BC)

Power supply: Wireless: 5V-10V, Wired (DAD6001-BC): Phantom DC48V±4dB
Color: Beige
Weight: 8g (including cable and MicroDot terminal)
Microphone head dimensions: H3.4×W14.4mm (with grid attached)
Capsule diameter: 3mm
Cable length: 1.8m
