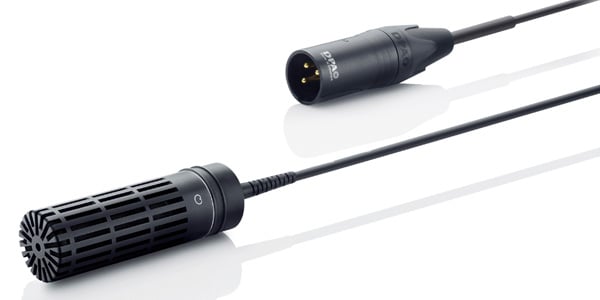

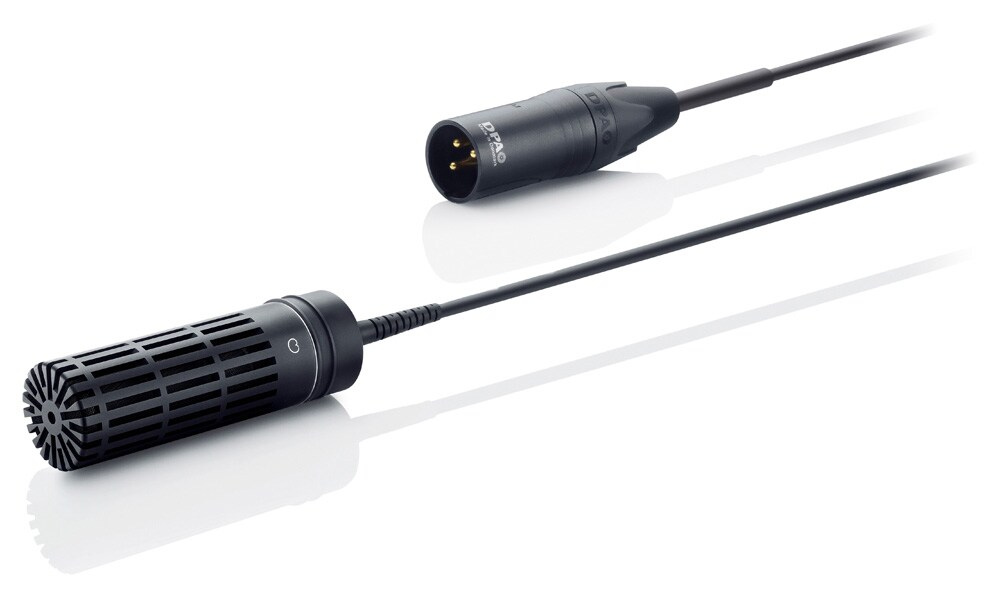

DPA / 2011ER

Variations

Omnidirectional microphone (48V), modular active cable rear cable specification, MMC2011 + MMP-ER

■Specifications
Model number: 2011ER
Polar pattern: cardioid
Cartridge: prepolarized condenser, φ19mm (twin diaphragm)
Frequency range (±2dB): 50Hz~17kHz, 3dB boost @ 12kHz
Sensitivity (± 2 dB @ 1kHz, nominal value): -40 dB re 1V/Pa
Equivalent noise level (A-weighted): 20dB
Total harmonic distortion (THD): 1% or less
Dynamic range (representative value): 117dB
Maximum sound pressure level: 144dB
Impedance: 100Ω
Cable length: 3m
Power supply: phantom DC48V/3.5mA
Connector: XLR3 pin (male)
Dimensions, weight: φ19×63mm, 115g

■Accessories
Windscreen (DUA0020), suspension mound (SM4000-C)
