ATOMOS / ATOMOS Sumo19 SE

This is a studio monitor and RAW, ProRes, and DNx recorder equipped with a 19-inch high-brightness LCD that supports HDR.

■Studio monitor & RAW/ProRes/DNx recorder

Monitor

■Touch screen: Super Atom IPS panel (capacitive touch)

■Screen size: 19 inches

■Screen resolution: 1920x1080

■PPI: 120

■Color depth: 10-bit (8+2 FRC)

■Backlight: Optically bonded quantum dots

■Maximum brightness: 1200nits (+/-10%)

■Aspect ratio: 16:9

■De-interlace function:

Enable/disable the mode that reduces image retention and burn-in of interlaced images such as HD60i

■Color temperature: D65

*Changes to other formats such as D93 and fine-tuning of color temperature are not supported

■Color gamut: DCI-P3

[Color pipeline]

■Gamma: Sony SLog/SLog2/SLog3, Canon Clog/CLog2/Clog3, Arri Log CEI160/LogCEI200/LogCEI250/LogCEI320/LogCEI400/LogCEI500/LogCEI640/LogCEI800/LogCEI1000/LogCEI1280/LogCEI1600, Panasonic V-log, JVC JLog1, Red LogFilm, Log3G10/Log3G12, FujiFilm F log, PQ(HDR10), HLG, Nikon N-Log
■Gamut: BT2020, DCI P3, DCI P3+, DCI p3 65, Sony SGamut/SGamut3/SGamut3.cine, Canon Cinema, Panasonic V Gamut, Arri Alexa Wide Gamut, Rec709, JVC LS300, F-Gamut, Red DragonColor, DragonColor2 , RedColor2, RedColor3, RedColor4, RedWideGamut
■3DLUT display: .Cube format
■3DLUT output: Loop out
■3DLUT 50/50: Supported
■Monitoring mode: Native/709/HLG/PQ/3D LUT
■HDR output conversion: HDR to HLG/PQ
【Color management】
■Display settings: Brightness, lift, gamma, gain
■AtomHDR technology: Equipped
■3DLUT: Applies to display, monitor output, and recording
(8 .cube files can be read from SSD and stored)
■LEAGALIZE: Converts input brightness range from full to legal
【Video input】
■Metadata
SDI: File name from Arri, RED
RAW-White balance, exposure index, shutter speed/angle, iris F stop, ISO, gamma, color gamut
[File name]
■Normal: S/S/T&Rolling
■Via SDI: Red, file name from Arri
[Video output]
■HDMI: Supports 1xHDMI to 4K60p
■SDI: 1x12G-SDI, auto-detection with backward compatibility
Level-A and Level-B can be selected
■Video chroma subsampling: 4:2:2
■Color depth: 10-bit video
[Web streaming]
■USB UVC:
Supported via ATOMOS CONNECT (sold separately)
[Video conversion]
■HDMI→SDI: Supported (video only)
■SDI→HDMI: Supported (video and RAW inputs are supported for video output)
[Audio input/output]
■Audio quality: 24bit/48kHz
■Audio codec: PCM
■HDMI: 8ch 24-bit (depends on input signal)
■SDI: 12ch 24-bit (depends on input signal)

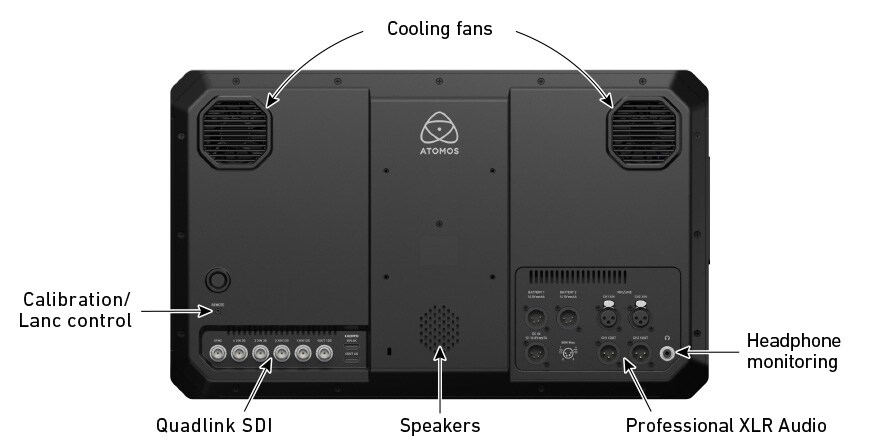

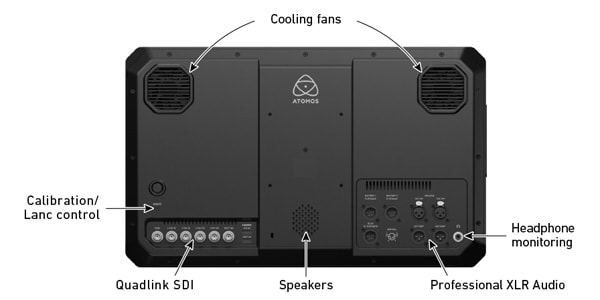

■Analog audio input: 2xXLR
■Analog audio output: 2xXLR
■Built-in speaker: 2x5W
■Headphone output: 3.5mm 2ch
[Timecode, sync]
■Supports overlay data: HDMI and SDI
■Time: Supported
■LTC: LTC input via BNC connection in recording mode
■Genlock: GENLOCK input in playback mode
[Supported resolution. Frame rate (recording, monitoring, playback):

■4K DCI: Supports up to 4K60p

■4K UHD: Supports up to 4K60p

■2K DCI 2048x1080: Supports up to 2K60p (SDI input only)

■FHD1920x1080: Progressive: Supports up to FHD120

■FHD1920x1080 PsF: Pull down

■FHD1920x1080 Interlaced: 1080i50/1080i60

■1280x720p: 60p

■6K RAW: Supports up to 6K30 (SDI RAW input only)

■4K RAW: Supports up to 4K60 (SDI RAW input only)

■2K RAW: Supports up to 2K240p (DI RAW input only)
[Recording codec]
■CDNG: Only when using SDI RAW input
■ProRes RAW: Supports ProRes RAW, ProRes RAW HQ 12bit to 6K30p/4K60p
■Apple ProRes: Supports LT, 422, HQ to 4k60p
■Avid DNxHD: Supports up to 1080p60
■Avid DNxHR: Supports up to 4K60p
[Playback]
■Playlist: Supported (custom playlists can be created from full/sub clips)
■Loop: Supported (in/out playback also possible)
■CNDG: Not supported
■Apple ProRes RAW: Supports recorded clips (linear PCM audio)
■Apple ProRes: Supported (linear PCM audio)
■Avid DNx: Supported (linear PCM audio)
[Monitoring]
■SDR: Native, 709, LUT
■HDR: HLG, PQ Rec2020
■De-Interlace: Enable/disable function
【Recording function】
■Preroll function: Supported (HD 8 seconds, 4K 2 seconds)
※Not supported when RAW input
■ISO recording (multi-recording)
Up to 4 inputs, up to 1080p60 recording
※3G SDI only supports Level-A
■Switching program recording: Supported (up to 1080p60)
■Time lapse: Supported
【Multi-input/switching】
■SDI in1/in2 switching: Supported (supports up to 4K60p per input)
■SDI multi-input: Up to 4 inputs, up to 1080p60 (3G SDI only supports Level-A)
■Multi-view display: Can display 4 screens on the monitor
*When in multi-ISO input mode
■Input switching:
Selected video can be displayed in full screen *When in multi-ISO input mode
[Housing]

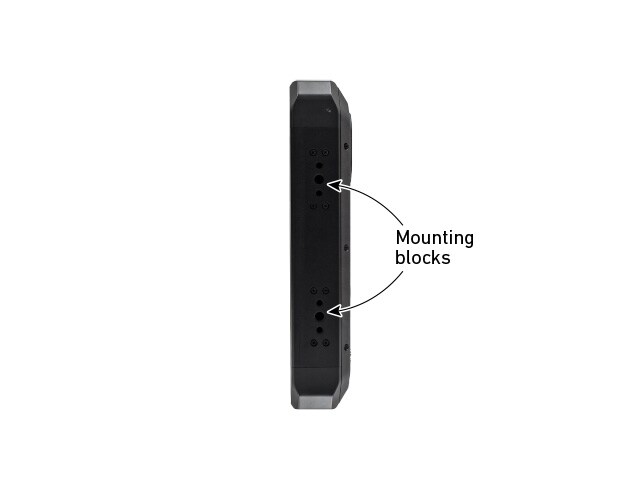

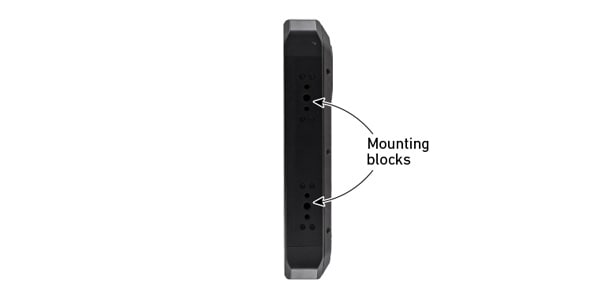

■Mounting screw holes:
1/4 inch: 4 on top, 6 on bottom, 4 on right side, 2 on left side
3/8 inch: 2 on top, 3 on bottom, 2 on right side, 1 on left side
■VESA mount: 100x100mm on the back
■SIZE: 504(W)x310(H)x63(D)mm　6.2 kg (monitor body)
