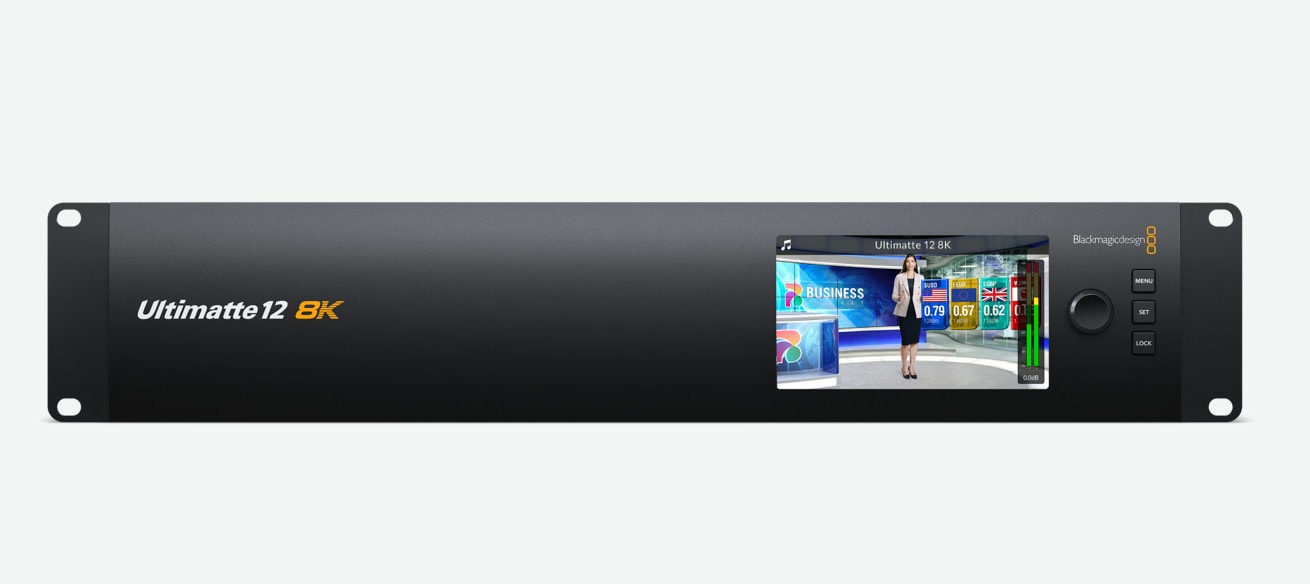

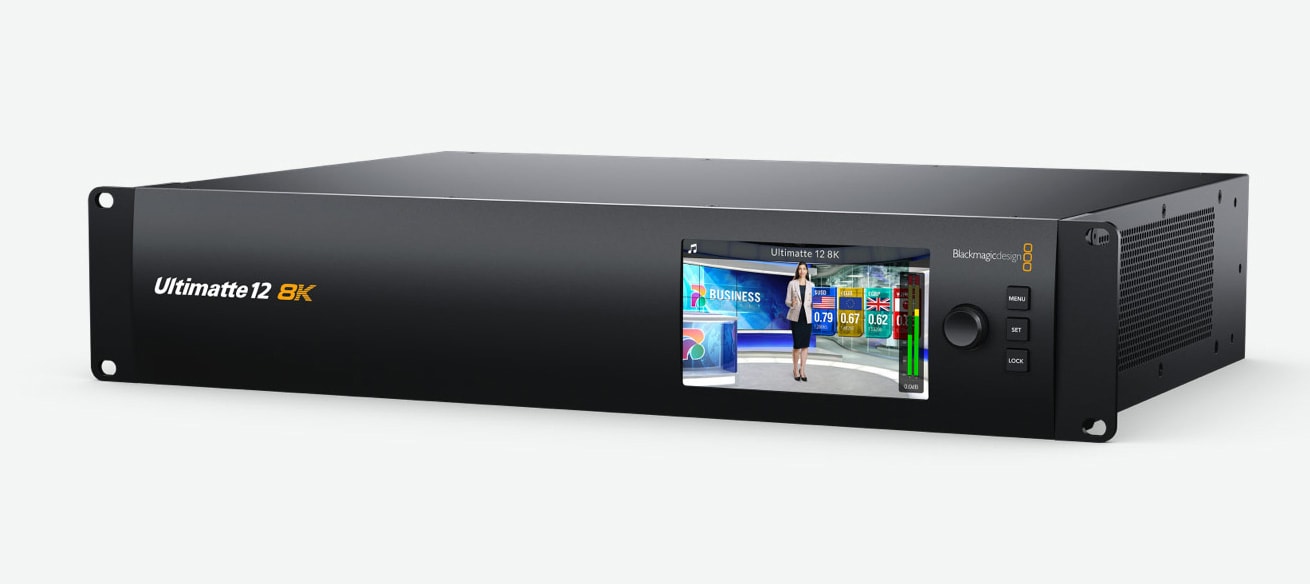

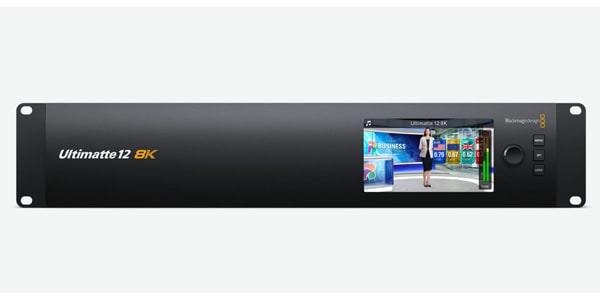

Blackmagic Design / Ultimatte 12 8K

An advanced real-time compositing processor for keying live action into next-generation broadcast graphics, virtual sets, etc. It has 12G-SDI, so it can handle HD, Ultra HD, and 8K, with sub-pixel processing for stunning images.

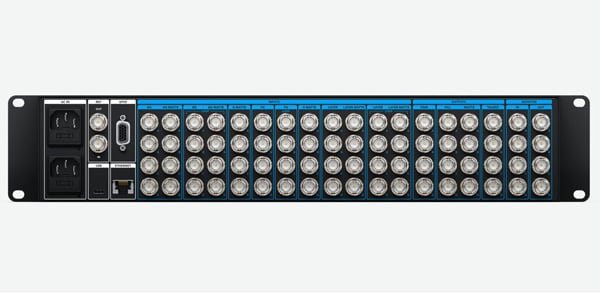

Connection】 【Connection
SDI video input: 32
SDI video output: 20
■SDI video loop output: 20
Reclock SD, HD, Ultra HD, and 8K at each input
■SDI rate: 270 Mb, 1.5G, 3G, 6G, 12G
Video input resynchronization: All inputs
■Reference connections:
BNC input x1, BNC output x1
Tri-level sync or black burst
GPIO: DE15
■ Ethernet:
Up to 10Gb/s (for device control and loading stills into the media pool)
■Computer Interface:
USB-C 3.0x1 (for configuration and software updates)
Formats】 【Format】.
■SD Video Format:
525i59.94 NTSC, 625i50 PAL
■HD video formats:
720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
Ultra HD video formats:
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
■8K video formats:
4320p23.98, 4320p24, 4320p25, 4320p29.97, 4320p30, 4320p50, 4320p59.94, 4320p60
■SDI Standards:
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081?1, SMPTE 2081?10, SMPTE 2082?1, SMPTE 2082?10, SMPTE 2081?12, SMPTE 2082?11, SMPTE 2082? 2082.11, SMPTE 2082.12, SMPTE 2082.11, SMPTE 2082.12
Video sampling: 4:2:2
Color accuracy: 10-bit
Color space: REC 601, REC 709, REC 2020
■Supported multi-rate:
SD, HD, 6G?SDI, 12G-SDI, 2SI quad link 12G-SDI, 2SI dual link 12G-SDI, 2SI quad link 6G-SDI auto-detection
Composite Source】】
■Foreground:
12G-SDI input x4 (loop output supported)
■Background:
12G-SDI input x4 (loop output supported)
Still, from the media pool
■Background matte:
4 x 12G-SDI inputs (loop output supported)
Internal Window
Still, from the media pool
Garbage Matte: 4 x 12G-SDI inputs
Internal Window:
Still, from the media pool
■Holdout Mat:
12G-SDI input x4
Internal Window
Still, from the media pool
■Layers:
12G-SDI input x4
Loop output supported
Still, from the media pool
■Layer format
12G-SDI input x4
*Loop output supported
Internal Window
Still, from the media pool
[Composite output
Fill: 12G-SDI x4
Matte: 12G-SDIx4
■Program: 12G-SDIx4
Performer: 12G-SDIx4
Monitor]
Monitor input: 12G-SDIx4
For cascade connection of monitors
■Monitor output:
12G-SDIx4
The program, foreground input, background input, compound matte, internal matte, fill output, layer input, background matte input, garbage matte input, holdout matte input, layer matte input, processed holdout matte, processed garbage matte, processed Processed background matte, for monitoring screen correction
Media Pool]
■ Background still image formats:
TGA, TIFF, BMP, PNG, JPG
■Background & alpha still image formats;
TGA, TIFF, BMP
■ Layer still image formats:
TGA, TIFF, BMP, PNG, JPG
■Layer & alpha still image formats:
TGA, TIFF, BMP
■Gavage-matte still image formats:
TIFF, BMP, PNG, JPG
Holdout matte still image formats:
TIFF, BMP, PNG, JPG
■Media pool memory:
6GB (non-volatile internal storage)
■Display
Built-in 5-inch color display:
Supports display of device name, video preview, audio meter, and menu
【Others】.
■Installation: Height: 2U rack
SIZE：482(W)x88.4(H)x338(D)mm 8.68kg


The Campaign period for this product is one year of the manufacturer's warranty.
