Blackmagic Design / Ultimatte 12 HD Mini

Advanced real-time keyer for creating next-generation virtual sets and more using consumer-grade cameras, HDMI connection is ideal for use with Blackmagic Studio Camera, Pocket Cinema Camera, and ATEM Mini live production switchers. The HDMI connection is ideal for use with the Blackmagic Studio Camera, Pocket Cinema Camera, and ATEM Mini live production switcher.

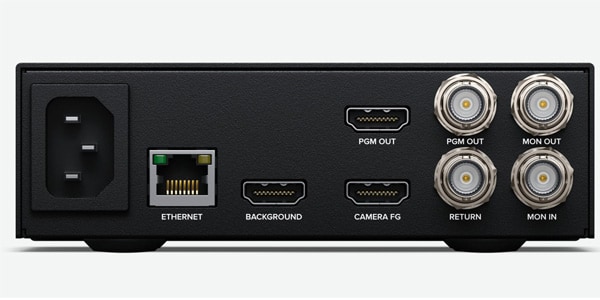

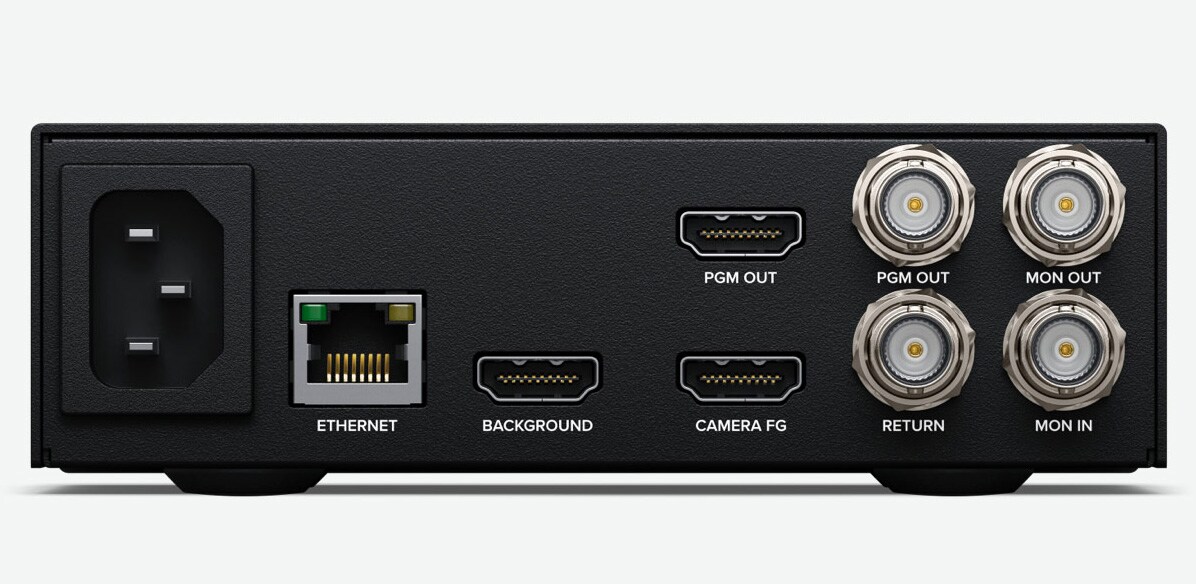

Connection】】
SDI video input: 2
Monitor input (for cascade connection), return input (for camera control)
SDI video output: 2
HDMI video input: 2
HDMI video output: 1
Video input resynchronization: All inputs
SDI rate: 270 Mb, 1.5G, 3G
■ Ethernet:
Up to 1Gb/s (for device control and loading stills into the media pool)
■Computer Interface:
USB-C 3.0 x1 (for configuration and software updates)

Formats】 【Formats
■SD Video Format:
525i59.94 NTSC, 625i50 PAL
■HD video formats:
720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
■SDI Standards:
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M level A and B
Video sampling: 4:2:2
Color accuracy: 10-bit
Color space: REC 601, REC 709
Supported multi-rate: SD and HD auto-detection
Composite Source】】
Foreground: HDMI input x1
Background: HDMI input x1
Still, from the media pool
Background matte: Internal window
Still, from the media pool
Garbage matte: Internal window
Still, from the media pool
Holdout mattes: Internal window
Still, from the media pool
■Layers:
Still, from the media pool
■Layer Mat:
Internal window
Still, from the media pool
Composite Output
■Program:
HDMIx1
3G-SDIx1
Monitor】】Monitor
■Monitor Input:
3G-SDIx1
For cascade connection of monitors
■Monitor output:
3G-SDIx1
The program, foreground input, background input, compound matte, internal matte, fill output, layer input, background matte input, garbage matte input, holdout matte input, layer matte input, processed holdout matte, processed garbage matte, processed Processed background matte, for monitoring screen correction
Media Pool]
■ Background still image formats:
TGA, TIFF, BMP, PNG, JPG
■Background & alpha still image formats:
TGA, TIFF, BMP
■Layered still image formats:
TGA, TIFF, BMP, PNG, JPG
Layer & Alpha Still Image Formats:
TGA, TIFF, BMP
■Gavage-matte still image formats:
TIFF, BMP, PNG, JPG
Holdout matte still image formats:
TIFF, BMP, PNG, JPG
■Media pool memory:
6GB (non-volatile internal storage)
Other】】

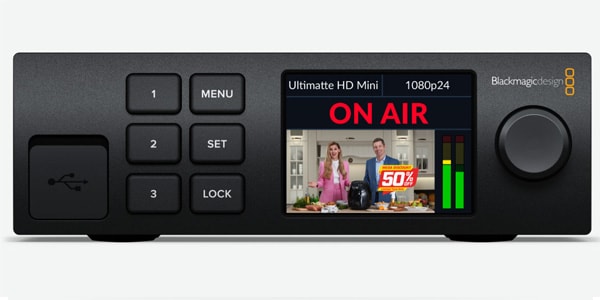

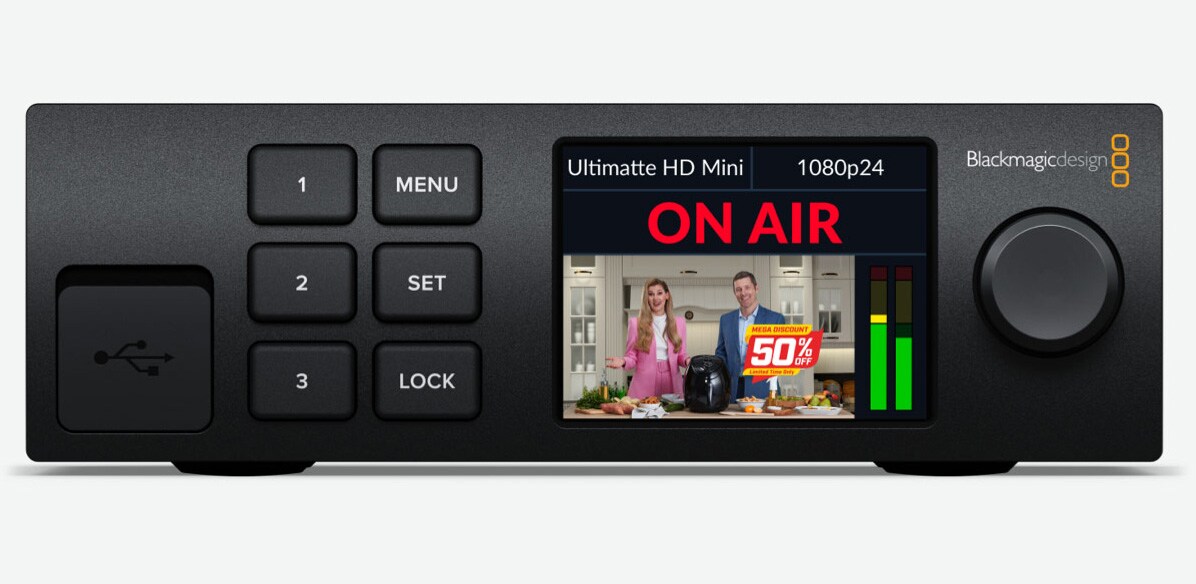

■Display:
Built-in 2.2-inch color display
*Supports display of device name, video preview, video format, audio meter, status, and menu
■Installation
Width: 1/3U rack, Height: 1U rack
■SIZE：140(W)x44.2(H)x177(W)mm 760g

* The Campaign period for this product is one year of the manufacturer's warranty.
