Ferrofish / Pulse16 DX +24 CV Single Mode

Ferrofish Pulse16 DX +24は、プロフェッショナルなスタジオやライブの現場で安定した妥協のないパフォーマンスを実現するためにデザインされたAD/DAコンバーターです。シングルモードのSFPモジュールを搭載。また、アナログ・モジュラー・シンセサイザーなどのコントロールに最適な「CV I/Oオプション」が追加されています。

16-Channel Analog <> Dante / MADI / ADAT Converter

Product Overview
The Ferrofish Pulse16 DX +24 is an extremely cost-effective AD/DA converter designed to provide stable, uncompromising performance in professional studios and live performance environments, with 16 balanced analog inputs and outputs, 4 ADAT inputs and outputs, MADI optical inputs and outputs capable of transmitting 64 channels of audio, and Dante audio network inputs and outputs (2 x RJ45). In addition to the functions of the Pulse16 DX, the maximum reference level can be set up to +24dBu.
By combining it with a MADI audio interface, it is possible to build a multi-channel recording and playback system such as spatial audio.
It integrates 16 analog inputs and outputs into a Dante network, and can also be used as a format converter between ADAT, MADI, and Dante digital interfaces.

Excellent Sound Quality
The Pulse16 DX +24 supports up to 192 kHz, and in addition to sophisticated analog amplifiers and powerful jitter removal circuits, it delivers high resolution and faithful sound quality at both 48 kHz and 192 kHz. It also uses high-end AD/DA converters to achieve professional quality ADDA conversion.

Analog & Digital Input/Output
The 1U-sized unit is equipped with 16 balanced analog inputs and 16 balanced analog outputs. All input and output signals can be monitored from the headphone output on the front panel.

The Pulse16 DX +24 comes standard with a MADI optical multimode terminal, and the Pulse16 DX +24 Single Mode comes standard with a MADI optical singlemode terminal, allowing input and output of up to 64 channels (@48kHz). The four ADAT inputs and outputs support up to 16 channels and are compatible with 96 kHz in SMUX/2 mode.

The Dante network has two redundant terminals, allowing 64 channels of input and output at 48 kHz.
Word clock for digital synchronization can be sent and received via BNC terminals, ADAT, MADI, or Dante.

Digital Format Converter & Router
The Pulse16 DX +24's diverse inputs and outputs function as a very flexible digital format converter and signal router.
Audio signals can be freely converted to all analog and digital formats, and can be output simultaneously in multiple formats in groups of 8 channels.
Ferrofish products can be connected in series to fit a huge number of channels into a surprisingly small rack space.

Intuitive operation and high maintainability

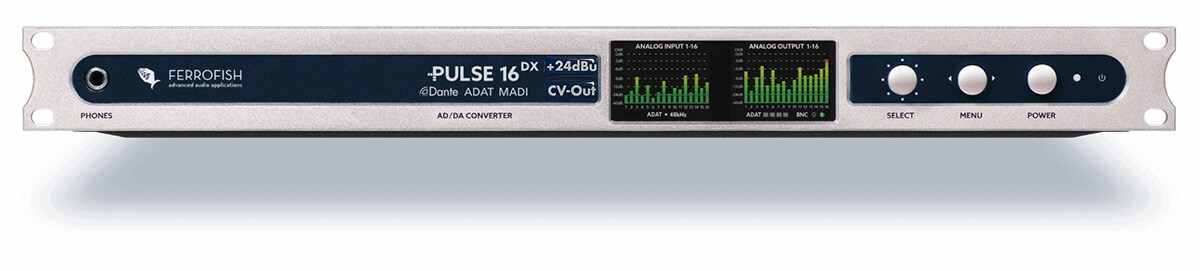

The two TFT screens on the front panel display all the settings for all inputs and outputs, including channel gain, output level, routing, monitoring, and clock, allowing you to visually check the status of each channel. The headphone output allows monitoring of single channels, stereo pairs, or submixes, improving reliability and maintainability in the field.

Remote control with RemoteFish
The Pulse16 DX +24 can be remotely controlled in multiple ways, making it an ideal setup for live recording, broadcasting, and facility audio where long distance transmission is required.

Remote control is possible via MIDI and MIDI-over-MADI, including alert messages. The remote control software ""RemoteFish"" can be downloaded for free from the website and can operate all functions such as input/output, monitoring, and routing of multiple Ferrofish devices.

Main Features
- High-quality 24 bit / 192 kHz compatible converter chip
- Analog: 16 channels of TRS balanced analog input and output, 24 bit / 192 kHz compatible
- Dante input and output: RJ45 Dante x 2
- MADI: Optical MADI input and output (LC terminal, MIDI over MADI compatible)
- ADAT x 4 systems
- S / MUX: Supports up to 192 kHz
- MIDI input and output terminals
- Remote control available via MIDI / MIDI over MADI
- Word Clock: Equipped with BNC port
- Two TFT screens for full control of all levels and settings
- Diverse routing / mixing possible
- One-key control for easy operation of all functions
- Input gain and output level can be adjusted individually for each channel
- Equipped with a unique circuit to reduce active jitter
- Headphones / Easy operation with submix output
- Equipped with preset function
- Fanless structure allows silent operation

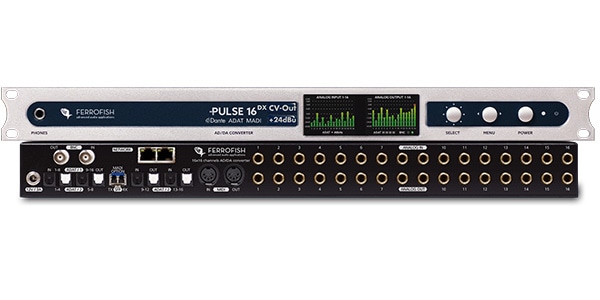

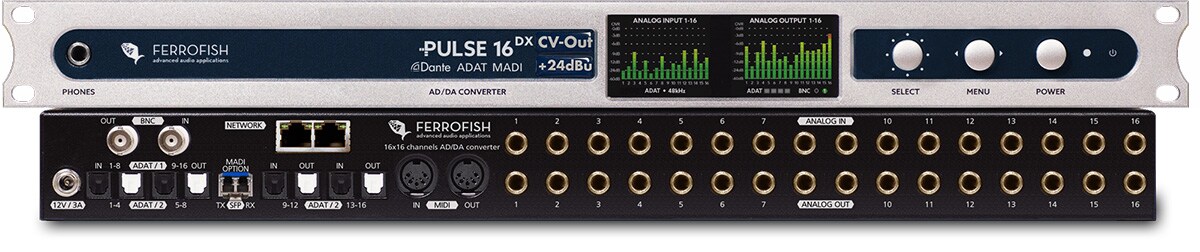

Input/Output
Analog input: 16 x TRS balanced input
Analog output: 16 x TRS balanced output
1 x MADI input/output (optical LC)
1 x Dante audio network input/output (2 x RJ45)
ADAT input/output MIDI (5-pin DIN): In/Out
1 x Word clock input/output (BNC) Headphone jack
4 x ADAT input/output (TOSLINK)
MIDI (5-pin DIN): In/Out
1 x Word clock input/output (BNC) Headphone jack

Examples

■Recording studio
In a studio system centered on the Dante network, each Dante device is connected in a star connection centered on a switching hub, and the Pulse16 DX +24 serves as an AD/DA front end to outboard equipment and monitors with high cost performance. In addition, the Pulse16 DX +24 also supports a DD converter function that converts ADAT/MADI signals to Dante lines, 16 analog inputs and outputs, and remote control via Dante lines.

■Immersive-compatible studios
In recent years, the number of immersive-compatible studios that are being introduced has increased, and many Ferrofish AD/DA converters are used. The main DAW machine can be connected with an audio interface that supports Dante or MADI. By connecting a Dante-equipped console via a switching hub, it can be used as a high-quality AD/DA converter in the monitoring environment of an immersive studio.

■Live recording
By connecting the Pulse16 DX +24 to a live PA system equipped with Dante, it is possible to receive signals from FOH and stage boxes via Dante lines. Ambience microphones can be received by ADAT-equipped microphone preamps, and up to 64 channels can be transmitted together on a single MADI line with one unit. The abundant analog line inputs allow signals from devices without digital outputs to be combined.

What's in the box
AC adapter, MADI optical cable (LC/SC), Pulse16 DX user guide (Japanese)
