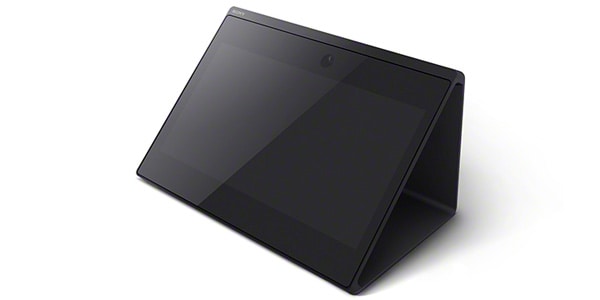

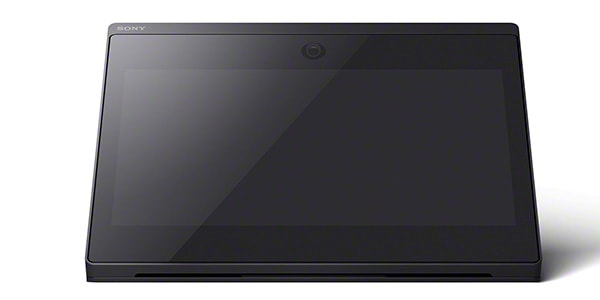

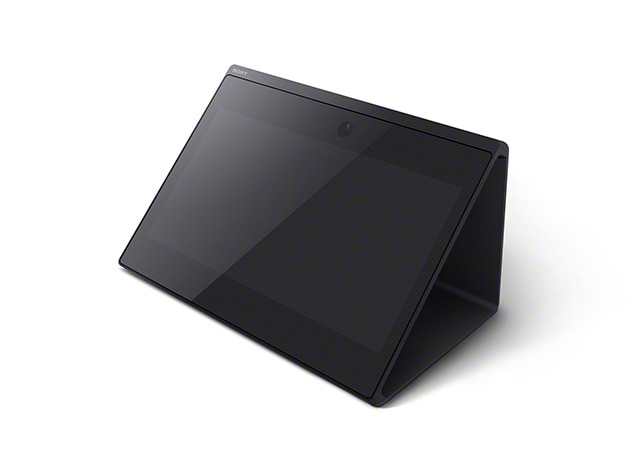

SONY / ELF-SR1

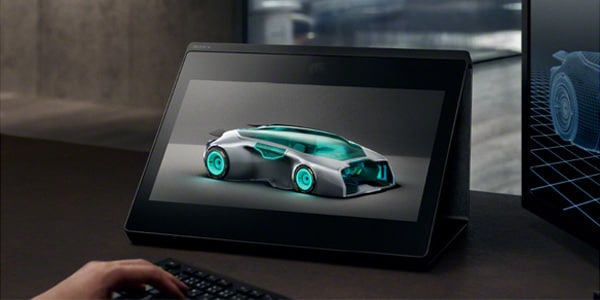

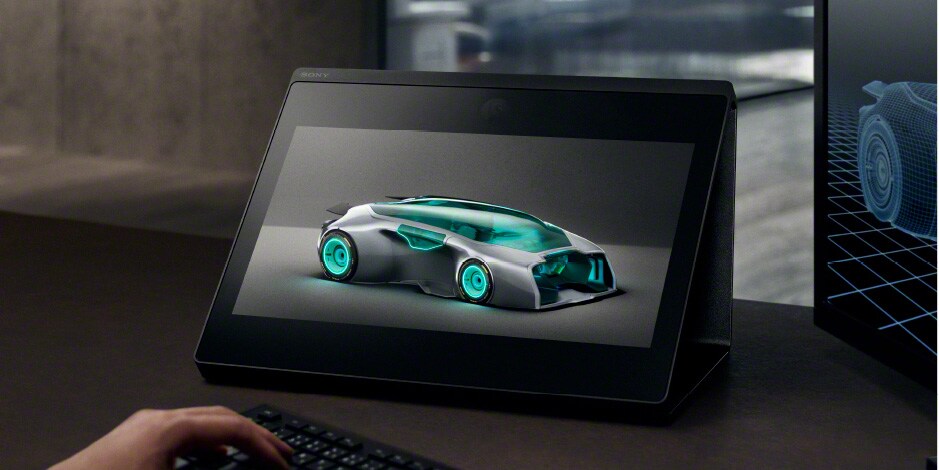

A high-definition spatial reproduction display that can be viewed with the naked eye. Using Sony's unique gaze recognition technology, it constantly detects the position of your eyes and generates optimal images for each eye.

■Spatial reproduction display

[Display]

■Type: 15.6

■Aspect ratio: 16:9

■Brightness: 500nits

■Contrast: 1400:1

■Color gamut: AdobeRGB approx. 100%

■Color temperature: 6500K

■Resolution: 3,840x2,160 pixels

※Actual effective resolution for stereoscopic vision is 4K or less

[Sensor]

■High-speed vision sensor: Eye-gaze recognition sensor

[Audio]

Speaker: 5.5W (1.5W+1.5W+2.5W)

[Viewing conditions]

■Viewing distance: 30cm-75cm

■Field of view: 20 degrees up, 40 degrees down, 25 degrees left, 25 degrees right

■Number of simultaneous viewers: 1

[Connection]

■HDMI input: 1

※To play the original video on this unit, please check the compatible HDMI terminal of your computer (HDMI2.0 compatible or higher required) before connecting

■Connection terminal: 1 (USB 3.2 Gen1 Type-C)
*Please check the compatible USB port of your computer (USB 3.2 or higher required) before connecting to play the original video on this unit.
■Power supply: DC IN: 12V 2.0A
■Supported game engines:
Unity: Version 2018.4, 2019.4, 2020.1
Unreal Engine 4: Version 4.24, 4.25
■Display language: Japanese/English
■SIZE: 383(W)x232(H)x231(D) 4.6kg
■SIZE(including accessories): 383(W)x232(H)x247(D) 4.9kg
■Accessories: AC adapter, power cord, USB Type-C cable (1.0m), HDMI cable (1.5m), warranty card, instruction manual, top cover, side panel x2 (shared for left and right), bottom stand, cleaning cloth
*A separate computer is required to use this unit.
