ELECOM / DH-SW4KP41BK

This HDMI switcher can solve the shortage of HDMI ports for 4K models by supporting 4K60Hz (18Gbps) and HDCP2.2! The included remote control enables input switching operation from a remote location.

■HDMI Switcher
Maximum display resolution: 4K60Hz (4096x2160)
■Main supported resolutions:
4K(4096x2160) 30Hz/60Hz, 4K(3840x2160) 30Hz/60Hz
2K(1920x1080) 60Hz, 1080i/720p/576p/576i/480p/480i
HDMI standard: HDMI2.0b
HDR: HDR10, Dolby Vision(R), HLG supported
Data rate: 18Gbps
Video frequency bandwidth: 600 MHz
Compatible video output devices: AV equipment, home game consoles, media streaming terminals, PCs, etc., that have HDMI output connectors
Compatible video display devices: Televisions, displays, projectors, etc., having HDMI input terminals
Number of ports: Input: 4, Output: 1
■Connector shape:

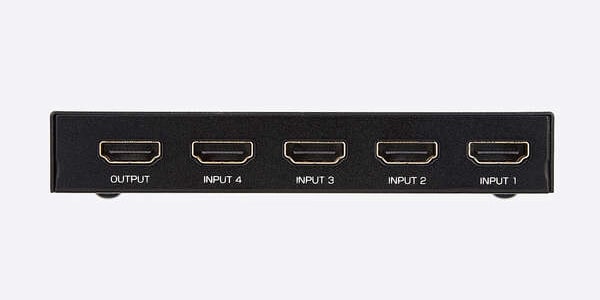

Input: HDMI type A 19-pin (female) x4
Output: HDM Type A 19-pin (female) x1

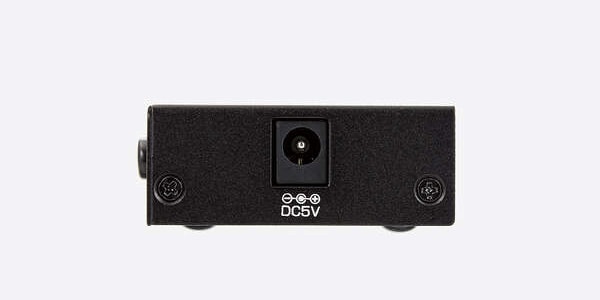

Power supply: DC jack (female) x1
Allowable cable length: 5m or less for both input and output
HDCP: HDCP1.4/2.2 compliant
CEC: Supported
HEC: Not supported
ARC: Not supported
Compliance standard: VCCI class B

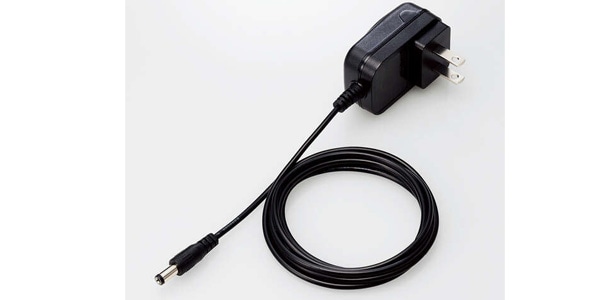

AC adapter rating: DC5V1A
AC adapter input voltage: 100V to 240V
Body material: Metal
SIZE： Approx. 123(W)x20(H)x51(D)mm
Weight： Approx. 150g(main unit)

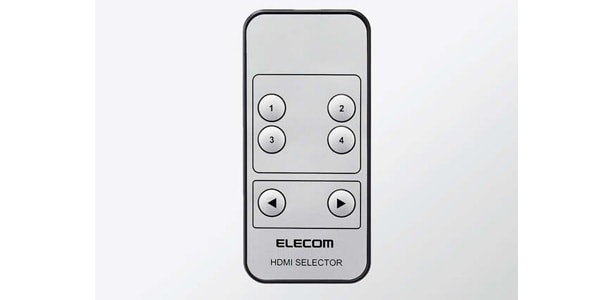

Accessories: Dedicated remote control x1, Dedicated AC adapter x1,
Warranty Policy
Operating temperature/humidity: 5 to 40°C (41 to 104°F), humidity: 0 to 80% (no condensation)
Storage temperature/humidity: 20 to 60°C, humidity 0 to 80% (no condensation)
