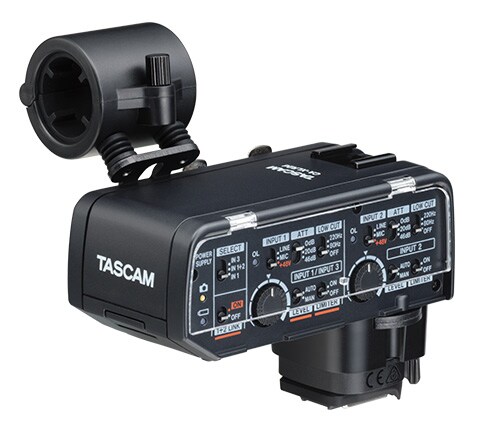

TASCAM / CA-XLR2d-C

Designed in collaboration with Canon Inc., this is an XLR microphone adapter for mirrorless cameras that enables professional-quality video and audio recording.

■Sampling frequency: 48k/96k Hz ■Quantization bit rate: 16/24bit
*Sampling frequency and quantization bit rate depend on the camera settings ■Number of input channels: Maximum 2 channels ■INPUT 1/2 terminal:
Connector: Equivalent to XLR-3-31 (1: GND, 2: HOT, 3: COLD)
6.3mm (1/4"") TRS standard jack (Tip: HOT, Ring: COLD, Sleeve: GND)
*Only XLR supports phantom power
■MIC input (when INPUT1/2 switch is set to ""MIC"")
Input impedance: 2kΩ or more
Maximum input level: +6dBu (ATT switch ""46dB"") *1
Minimum input level: -60dBu (ATT switch ""0dB"") *1
Gain range: 66dB
■LINE input (when INPUT 1/2 switch is set to ""LINE"")
Input impedance: 10kΩ or more
Maximum input level: +24dBu *1
Standard input level: +4dBu *1
Gain range 66dB
■Microphone input (unbalanced)
[INPUT 3 terminal]
Connector: 3.5mm (1/8"") stereo mini jack
*Plug-in power supported
Input impedance: 2kΩ or more
Maximum input level: +6dBV (ATT switch set to ""46dB"") *1
Minimum input level: -60dBV (ATT switch set to ""0dB"") *1
Gain range 66dB
Plug-in power 2.7V
■Headphone/camera output (unbalanced)
【OUTPUT terminal】
Connector: 3.5mm (1/8"") stereo mini jack
Output level:
0.29Vrms (fixed, OUTPUT switch set to ""camera"")
0.5Vrms (maximum output volume, OUTPUT switch set to ""headphone"")
Recommended impedance for headphones: 16-250Ω
■Power supply:
2 AA batteries (alkaline, nickel-metal hydride or lithium batteries)
Supplied via the accessory shoe of a compatible camera
■Power consumption: 2.0W (maximum)
■88.2(W)x119.1(H)x110.0(D)mm (excluding protrusions)
■Weight: 341g (microphone holder attached, battery box not attached)
■Accessories
Microphone holder (attached to main unit), battery box, 3.5mm (1/8"") stereo mini cable, TASCAM ID registration guide, start guide (with warranty), CA-AK1-C Accessory shoe mount adapter (with terminal cover/already attached to the camera body), CA-AK1-AN cold shoe mount adapter (with interface terminal cover)
