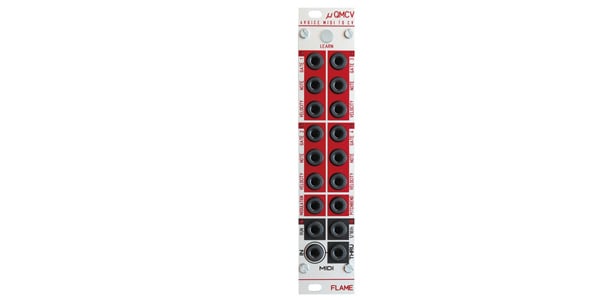

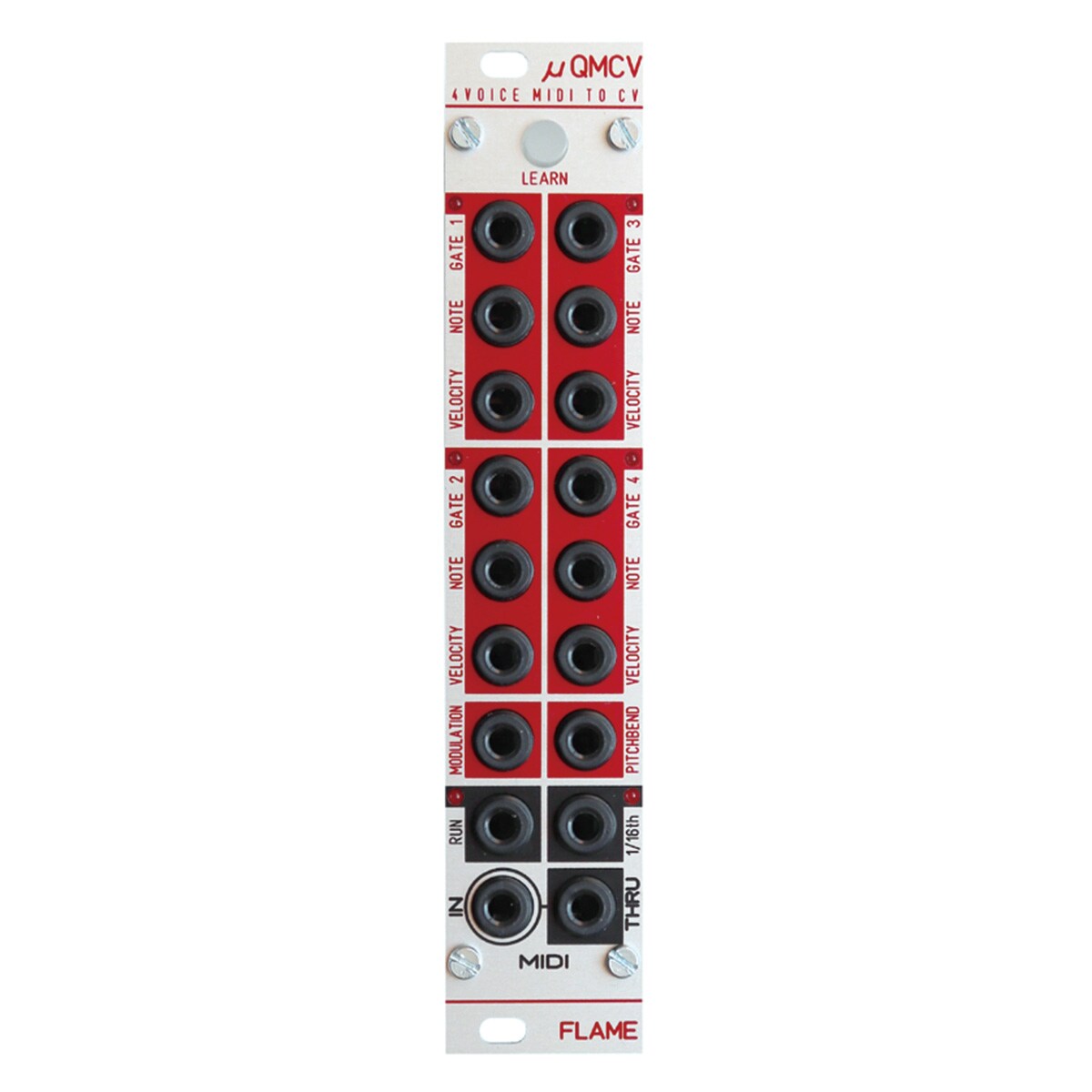

FLAME / μQMCV

This is a 4-voice MIDI → CV module that bends/mods/clocks ""pitch/gate/velocity"" x 4.

μQMCV is a compact MIDI-to-CV interface module with up to 4 voices. It has CV outputs for modulation and pitch bend, and two MIDI clock outputs for RUN clock and 16th clock. The range of notes that can be output is 8 octaves. The MIDI interface function supports multi-mode, and each voice can be used separately on different MIDI channels in a defined mode within a group. For example, voices 1-3 can be used as 3 voices on one MIDI channel, and the remaining voice 4 can be used monophonically on another MIDI channel. The polyphonic voice assignment uses an algorithm called ""round robin"".

*An algorithm that ""always selects the next available voice"". Example: Holding one note trigger assigns voice 1, and triggering other notes one after another switches voices in order: voices 2, 3, 4, 2, 3, 4, 2, 3...

μQMCV can be programmed using the LEARN function of a MIDI keyboard or SYSEX data from a computer.

This module has two MIDI jacks (TRS-B standard mini jacks), INPUT and THRU. Data received at MIDI-IN is forwarded to MIDI-THRU and output. You can also connect additional MIDI modules here.

*This product does not come with a TRS MIDI cable. If you use a DIN 5 Pin MIDI cable (a common MIDI cable), please prepare a conversion adapter (TRS-B standard) separately.

Width: 5HP
Depth: 40mm
Current consumption:
+12V: 70mA
-12V: 20mA
Notes MIDI IN and THRU are MIDI TRS-B standard.
